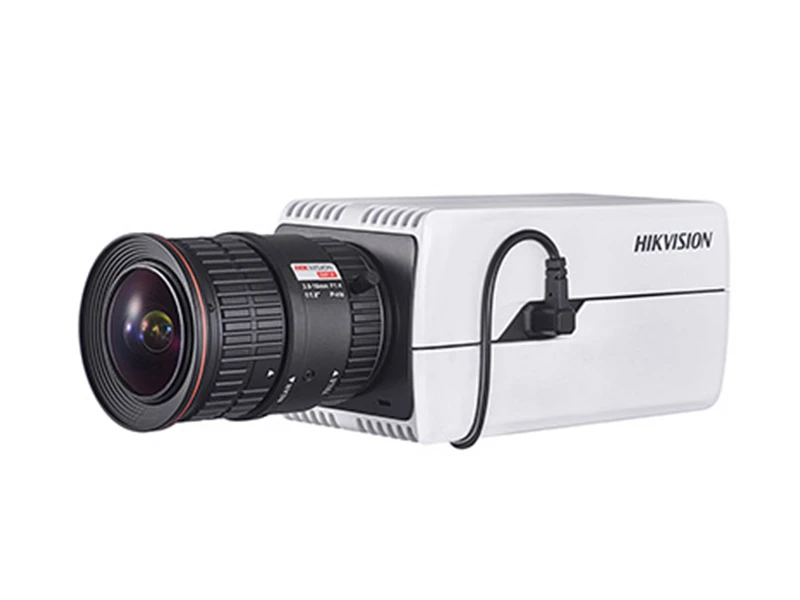

Hikvision DS 2CD5046G0 AP IP Box Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor | 1/1.8" Progressive Scan CMOS |
Signal System | PAL/NTSC |
Min. Illumination | Color: 0.002 Lux @ (F1.2, AGC ON) |
B/W: 0.0002 Lux @ (F1.2, AGC ON) | |
Shutter time | 1 s to 1/100,000 s |
Slow shutter | Yes |
Lens | 3.8-16mm, 11-40mm, 7-33mm, 3.4mm, 4-15mm, 12-50mm optional |
Lens Mount | CS |
Auto Iris | DC drive(-P: support P-Iris) |
Day& Night | IR Cut Filter |
Wide Dynamic Range | 140dB |
Focus | ABF(-A model) |
Compression Standard | |
Video Compression | H.265+/H.265/H.264+/H.264/MJPEG |
H.264 code profile | Baseline Profile/Main Profile/High Profile |
Video bit rate | 256Kbps~16Mbps |
Audio Compression | G.711/G.722.1/G.726/MP2L2/PCM |
Audio bit rate | 64 Kbps (G.711)/16 Kbps (G.722.1)/16 Kbps (G.726)/32-192 Kbps (MP2L2)/128-768 Kbps (PCM) |
Dual Stream | Yes |
Triple Streams | Yes |
Image | |
Max. Image Resolution | 2560 × 1440 |
Sub Stream | 50Hz: 25fps (704 × 576, 640 × 480) |
60Hz: 30fps (704 × 480, 640 × 480) | |
Third Stream | 50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480) |
60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480) | |
Image Enhancement | BLC, HLC, defog, 3D DNR, EIS |
Image Settings | Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser |
Target Cropping | Support |
BLC | Support |
HLC | Support |
Smart Defog | Support |
EIS | Support |
3D DNR | Support |
ROI | Support |
Picture Overlay | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
Day/Night Switch | Day/Night/Auto/Schedule/Triggered by Alarm In |
Network | |
Network Storage | Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR |
Alarm Trigger | Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error |
Protocols | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
General Function | One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter |
System Compatibility | ONVIF (PROFILE S, PROFILE G), ISAPI, SDK |
Intelligent | |
Behavior analysis | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
Interface | |
Communication Interface | 1 RJ45 10M/100M/1000M Ethernet port |
1 RS-485 interface (half duplex, HIKVISION, Pelco-P, Pelco-D, self-adaptive) | |
Audio | 1-ch 3.5 mm input (line in), 1-ch 3.5mm output, mono |
Alarm | 2 inputs |
2 outputs (alarm output supports up to 24 VDC, 1A or 110 VAC, 500 mA) | |
Alarm Input | 2 |
Alarm Output | 2 |
On-board storage | Built-in micro SD/SDHC/SDXC slot, up to 256 GB |
Reset Button | Yes |
Audio | |
Environment Noise Filtering | Support |
Audio I/O | support |
Audio Sampling Rate | 8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz |
Smart Feature-set | |
Behavior Analysis | Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal |
Line Crossing Detection | Cross a pre-defined virtual line |
Intrusion Detection | Enter and loiter in a pre-defined virtual region |
Region Entrance | Enter a pre-defined virtual region from the outside place |
Region Exiting | Exit from a pre-defined virtual region |
Unattended Baggage | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
Object Removal | Objects removed from the pre-defined region, such as the exhibits on display. |
Exception Detections | Scene change detection, audio exception detection, defocus detection |
Recognition | Face Detection |
Statistics | Object Counting (Entrance and Exit object number is accounted and showed on screen in real time) |
General | |
Operation Condition | -30 °C to 60 °C (-22 °F to 140 °F), humidity 95% or less (non-condensing) |
Power Supply | 12 VDC ± 20%, 24 VAC ± 20%, PoE (802.3af, class 3) |
Terminal block for DC and AC input | |
Power Consumption | 12 VDC ± 20%, 0.6 A, max. 7 W |
24 VAC ± 20%, 0.3 A, max. 7 W | |
PoE (802.3af, 36V to 57V), 0.1 A to 0.3 A | |
Dimensions | 142.6 × 69.8 × 68 mm (5.61″ × 2.75″ × 2.68″) |
With package: 315 × 140 × 140 mm (12.4″ × 5.51″ × 5.51″) | |
Weight | -AP: approx. 730 g (1.61 lb.), 1020 g (2.25 lb.) with package |
Non-AP: approx. 690 g (1.52 lb.), 975 g (2.15 lb.) with package |
