Açıklama

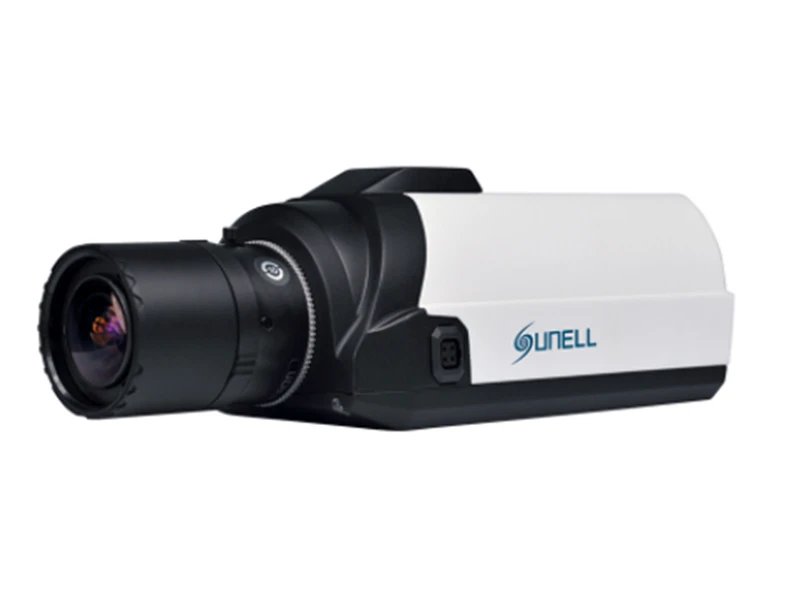

Sunell SN IPC56/40EDN IP Box Kamera

Özellikler

1/3" Progressive Scan CMOS
4MP Resolution
Triple Streams, Triple Power Supply
Low bitrate ,Excellent low light performance
3D DNR, dWDR ,ICR
ROI, Defog, HLC, Corridor mode, DIS
Built-in Microphone
Built-in SD/SDHC/SDXC slot
Multiple Video Analytics

Teknik Özellikler

CAMERA
Image Sensor	1/3” Progressive Scan CMOS
Min. illumination	Color 0.05Lux(AGC ON); B&W 0.005Lux(AGC ON)
Day & Night	ICR
Shutter Speed	1/5-1/20000s
Auto Iris	Yes
Wide Dynamic Range	dWDR
Digital Noise Reduction	2D/3D
Lens	N/A
FOV	N/A
IR LED	N/A
IR Range	N/A
Video Compression	H.264 High/Main/Baseline Profile, MJPEG
Bit Rate (CBR/VBR)	Main stream:500kb-12000kb ;Sub stream 100kb-6000kb
Audio Compression	G.711 ,RAW_PCM
Max.Resolution	26881512/25601440/20fps,23041296/25fps,19201080/30fps
Stream	Stream1 26881512/25601440/23041296/19201080
Stream	Stream2 720p to QVGA
Image Setting	Rotate Mode,Saturation,Brightness,Contrast,Sharpness
HLC	Yes
9/16 Corridor Mode	Yes
DIS	Auto
ROI	Yes
Defog	Yes
NETWORK
Network Protocols	IPv4,802.1x,HTTP,HTTPS,TCP/IP,UDP/IP,RTSP,DHCP,NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ICMP ,IGMP, Unicast and Multicast.
Alarm Trigger	Default Base: Motion Detection,Line Crossing,Tamper, Area Instrusion, Network disconnect,Diskalarm,I/O alarm;
Alarm Trigger	Optional Advance: Motion Detection,Line Crossing,Tamper, Area Instrusion, Camera Move,Dwell,Multiple Dwell,Retrograde Detection,Object Left,Object Remove, Abnormal Speed,Illegal Parking,Network disconnect,Disk alarm,I/O alarm
RTSP Video	Standard RFC2326, Support QuickTime / VLC Player.
Security	User security authentication, Reset, Hardware Watch Dog
Web Language	English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian (Sunell Brand)
System Compatibility	Onvif
INTERFACE
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
Microphone	Yes（Built-in）
Audio I/O	1ch Audio In,1ch Audio Out
Alarm I/O	1ch Alarm In,1ch Alarm Out
RS485	Yes
BNC Output	Yes
Reset Button	Yes
Edge Storage	Micro SD/SDHC/SDXC slot ,Max 64GB
GENERAL
Power Supply	AC24V/DC12V/POE
Power Consumption	3W(MAX)
OperatingTemperature	Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F )
OperatingTemperature	Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F)
Operating Humidity	0% - 90% RH
Ingress Protection	N/A
Approvals	CE / FCC
Product Dimensions	142mm(D)x78mm(W)x65mm(H)
