Açıklama

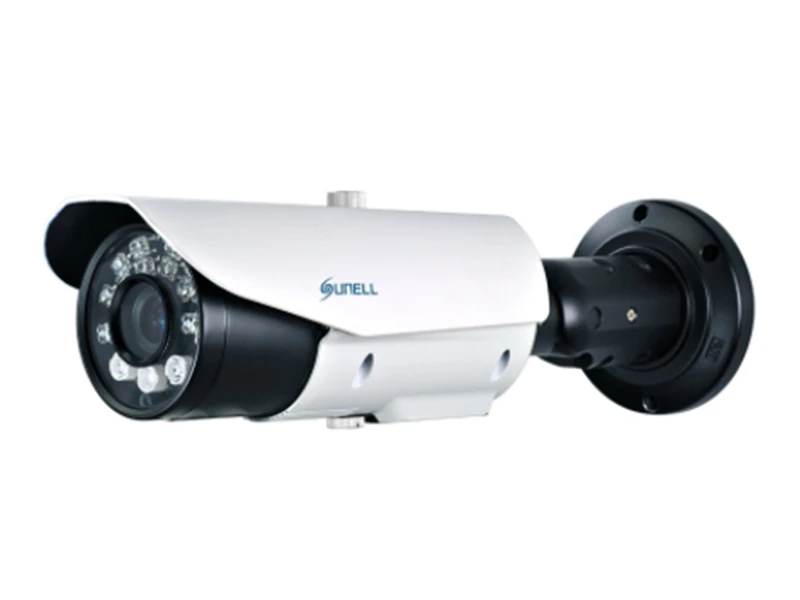

Z IP Bullet Kamera

Özellikler

1/3" Progressive Scan CMOS
Motorized lens 2.7-12mm
4MP@30fps,3MP@30fps,1080P@30fps
Triple Streams
Smart IR Up to 50m
Low bitrate ,Excellent low light performance
WDR,3D DNR,ICR
ROI, Defog, HLC, Corridor mode, DIS
IP67,IK10 optional

Teknik Özellikler

CAMERA
Image Sensor	1/3” Progressive Scan CMOS
Min. illumination	Color:0.01Lux@(F1.2,AGC ON) ; B/W:0Lux@(IR LED ON)
Day & Night	ICR
Shutter Speed	1/5s-1/20000s
Auto Iris	Yes
Wide Dynamic Range	WDR>120dB
Digital Noise Reduction	2D/3D
Lens	Motorized lens 2.7-12mm
FOV	95°~ 35°
IR LED	8pcs
IR Range	Up to 50m
Video Compression	H.264/265, MJPEG
Bit Rate (CBR/VBR)	Main stream:500kb-12000kb ;Sub stream 100kb-6000kb
Audio Compression	G.711 ,RAW_PCM
Max.Resolution	25921520/25601440/30fps,2304*1296/30fps,1920x1080/30fps
Stream	Stream1 25921520/25601440/2304*1296/1920x1080
Stream	Stream 2 D1 to QVGA
Image Setting	Rotate Mode,Saturation,Brightness,Contrast,Sharpness
HLC	Yes
9/16 Corridor mode	Yes
DIS	Auto
ROI	Yes
Defog	Yes
NETWORK
Network Protocols	IPv4,802.1x,HTTP,HTTPS,TCP/IP,UDP/IP,RTSP,DHCP,NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ICMP ,IGMP, Unicast and Multicast
Alarm Trigger	Motion Detection,Line Crossing,Tamper, Area Instrusion, Camera Move,Dwell,Multiple Dwell,Retrograde Detection,Object Left,Object Remove,Abnormal Speed,Illegal Parking,Network disconnect,Disk alarm,I/O alarm
RTSP Video	Standard RFC2326, Support QuickTime / VLC Player.
Security	User security authentication, Reset, Hardware Watch Dog
Web Language	English, Chinese, Polish, Italian, Portuguese, Spanish. Russian, French, Czech, Hungarian (Sunell Brand)
System Compatibility	Onvif
INTERFACE
Ethernet	I1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio I/O	1ch Audio In&1ch Audio Out
Alarm I/O	1ch Alarm In&1ch Alarm Out
RS485	Yes
BNC Output	Yes
Reset Button	Yes
Edge Storage	Micro SD/SDHC/SDXC slot ,Max 128GB
GENERAL
Power Supply	DC12V/POE
Power Consumption	5W(IR LED OFF)；8W（IR LED ON）
OperatingTemperature	Starting Temperature: -30 °C ~ 60 °C (-22 °F ~ 140 °F)
OperatingTemperature	Working Temperature:-40 °C ~ 60 °C (-40 °F ~ 140 °F)
Operating Humidity	0% - 90% RH
Ingress Protection	IP67,IK10 optional
Approvals	CE / FCC
Product Dimensions	φ110×377mm
Product Weight	1680g
