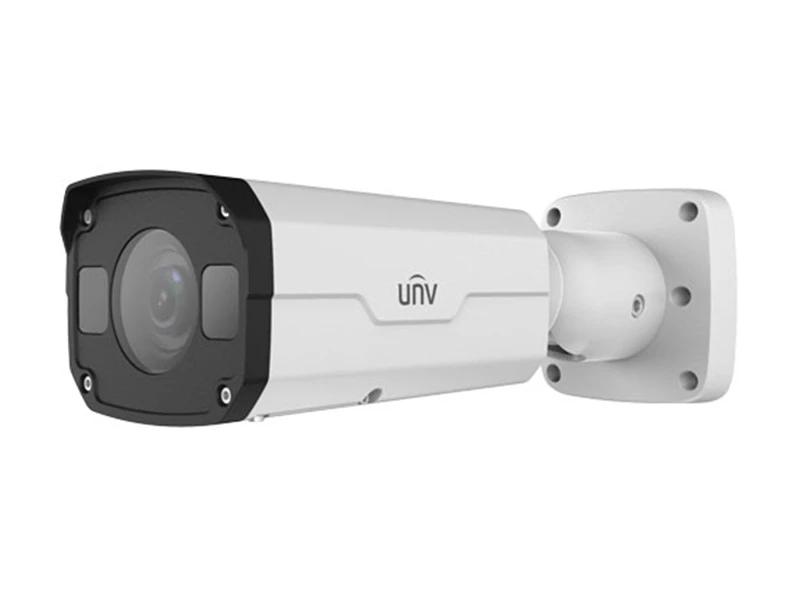

Uniview IPC2322EBR5 HDUPZ IP IR Bullet Kamera
Özellikler
Optics
- Starlight illumination
- 60fps Frame Rate
- Day/night functionality
- Smart IR, up to 50m (164 ft) IR distance
- Up to 120 dB Optical WDR(Wide Dynamic Range)
- 120dB TRUE WDR
- 2D/3D DNR(Digital Noise Reduction)
- Ultra 265,H.265, H.264, MJPEG
- Embedded smart algorithm
- Triple streams
- ROI (Region of Interest)
- 9:16 corridor mode
- Customized OSD
Network
- ONVIF Conformance
- Support PoE power supply
- Wide temperature range: -35°C ~ +60°C (-31°F ~ 140°F)
- Wide voltage range of 25%
- IP67
- 3-Axis
Teknik Özellikler
| Camera | |||||||
| Sensor | 1/2.8", progressive scan,2.0megapixel, CMOS | ||||||
| Lens | 2.7~13.5mm，AF automaticfocusing and motorized zoom lens | ||||||
| DORI Distance | Lens | Detect（m） | Observe（m） | Recognize（m） | Identify（m） | ||
| 2.7mm | 41.9 | 16.7 | 8.4 | 4.2 | |||
| 13.5mm | 209.5 | 83.8 | 41.9 | 20.9 | |||
| Angle of View(H) | 121.36°~33.51 | ||||||
| Angle of View (V) | 58.4°~14.9° | ||||||
| Angle of View (O) | 139.9°~33.4° | ||||||
| Adjustment angle | Pan: 0°~360° | Tilt: 0°~90° | Rotate: 0°~360° | ||||
| Shutter | Auto/Manual, shutter time: 1~1/100000 s | ||||||
| Minimum Illumination | Colour: 0.001Lux(F1.2, AGC ON) | ||||||
| 0 Lux with IR on | |||||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||||
| Digital noise reduction | 2D/3D DNR | ||||||
| S/N | >52 dB | ||||||
| IR Range | Up to 50m
(164 ft) IR range | ||||||
| Defog | Digital Defog | ||||||
| WDR | 120dB | ||||||
| Video | |||||||
| Video Compression | |||||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||||
| Frame Rate | Main Stream:2MP (1920×1080): Max. 60fps; | ||||||
| Sub Stream:720P (1280×720): Max. 30 fps; | |||||||
Third Stream:D1 (720×576): Max. 30fps; | |||||||
| 9:16 Corridor Mode | Supported | ||||||
| HLC | Supported | ||||||
| BLC | Supported | ||||||
| OSD | Up to 8 OSDs | ||||||
| Privacy Mask | Up to 8 areas | ||||||
| ROI | Up to 8 areas | ||||||
| Motion Detection | Up to 4 areas | ||||||
| Smart | |||||||
| Behavior Detection | Intrusion, cross line, motion detection | ||||||
| Intrusion | Enter and loiter in a pre-defined virtual region | ||||||
| cross line | Cross a pre-defined virtual line | ||||||
| motion detection | Moving within a pre-defined virtual region | ||||||
| Recognition: | Face detection | ||||||
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving | ||||||
| Statistical Analysis | People counting | ||||||
| General Function | Watermark, IP Address Filtering,Tampering Alarm, Alarm input, Alarm output,Access Policy, ARP Protection, RTSP Authentication,UserAuthentication | ||||||
| Audio | |||||||
| Audio Compression | G.711 | ||||||
| Two-way audio | Supported | ||||||
| Suppression | Supported | ||||||
| Sampling Rate | 8 KHZ | ||||||
| Storage | |||||||
| Edge Storage | Micro SD, up to 128 GB | ||||||
| Network Storage | ANR | ||||||
| Network | |||||||
| Protocols | |||||||
| Compatible Integration | ONVIF(Profile S, Profile G), API | ||||||
| Interface | |||||||
| Audio I/O | Input: impedance 35 kΩ; amplitude 1 V [p-p] | ||||||
| Output: impedance 600 Ω; amplitude 1 V [p-p] | |||||||
| Alarm I/O | 1/1 | ||||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||||
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] | ||||||
| General | |||||||
| Power | 12 V DC±25%, PoE (IEEE802.3 af) | ||||||
| Power consumption: Max 10W | |||||||
| Dimensions (L × W × H) | 253.4 ×86×71.7 mm (9.98” × 3.4” × 2.8”) | ||||||
| Weight | 1.0kg (2.2lb) | ||||||
| Working Environment | -35°C ~ +60°C (-31°F ~ 140°F), Humidity :10%~ 90% RH(non-condensing) | ||||||
| Ingress Protection | IP67 | ||||||
| Vandal Resistant | IK10 | ||||||
Uniview IPC2322EBR5 HDUPZ IP IR Bullet Kamera Pdf Dosyası801.68 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Irled : Var
