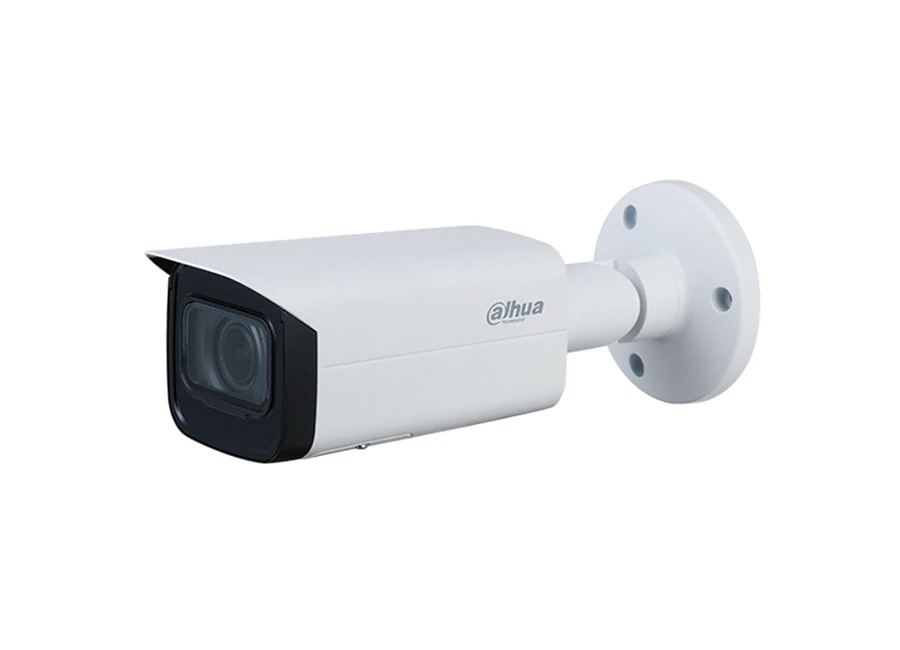

Dahua IPC HFW3241T ZAS 27135 IP Bullet Kamera
Özellikler
- 2MP, 1/2.8” CMOS image sensor, low illuminance, high image definition
- Outputs max. 2MP (1920 × 1080)@30 fps
- H.265 codec, high compression rate, low bit rate
- Built-in IR LED, max. IR distance: 60 m
- ROI, SMART H.264+/H.265+, flexible coding, applicable to various bandwidth and storage environments
- Rotation mode, WDR, 3D DNR, HLC, BLC, digital watermarking, applicable to various monitoring scenes
- Intelligent detection: Intrusion, tripwire
- Abnormality detection: Motion detection, video tampering, scene changing, audio abnormality detection, no SD card, SD card full, SD card error, network disconnection, IP conflict, illegal access, voltage detection
- Alarm: In, out; Audio: In, out; Supports max. 256 G Micro SD card
- 12V DC/POE power support
- IP67, IK10(optional) protection
- SMD
Teknik Özellikler
Camera | |||||
Image Sensor | 1/2.8”2Megapixel progressive CMOS | ||||
Effective Pixels | 1920 (H) ×1080 (V) | ||||
ROM | 128 MB | ||||
RAM | 256 MB | ||||
Scanning System | Progressive | ||||
Electronic Shutter Speed | Auto/Manual 1/3 s–1/100000 s | ||||
Min. Illumination | 0.002 Lux@F1.5 | ||||
IR Distance | 60 m (197 ft) | ||||
IR On/Off Control | Auto/Manual | ||||
IR LEDs Number | 4 (IR LEDs) | ||||
Pan/Tilt/Rotation Range | Horizontal: 0°–360°; vertical: 0°–90°; rotation: 0°–360° | ||||
Lens | |||||
Lens Type | Motorized vari-focal | ||||
Mount Type | φ14 | ||||
Focal Length | 2.7 mm–13.5 mm | ||||
Max. Aperture | F1.5 | ||||
Field of View | Horizontal: 108°–28° | ||||
Vertical: 57° –16° | |||||
Diagonal: 130° –33° | |||||
Iris Type | Fixed aperture | ||||
Close Focus Distance | 0.8 m (2.6 ft) | ||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
W | 44.1 m(144.7 ft) | 17.6 m(57.7 ft) | 8.8 m(28.9 ft) | 4.4 m(14.4 ft) | |
T | 153.1 m (502.3 ft) | 61.2 m(200.8 ft) | 30.6 m(82.9 ft) | 15.3 m(50.2 ft) | |
Professional, Intelligent | |||||
Perimeter Protection | Tripwire; intrusion (Recognition of human and vehicle) | ||||
Intelligent Search | Work together with Smart NVR to perform refine intelligent search, event extraction and merging to event videos | ||||
Video | |||||
Video Compression | H.265; H.264; H.264H; H.264B; MJPEG | ||||
Smart Codec | Yes | ||||
Video Frame Rate | Main stream (1920 × 1080@1–25/30 fps) | ||||
sub stream (704 × 576@1–25 fps/704 × 480@1–30 fps) | |||||
third stream (1280 × 720@1–25/30 fps) | |||||
Stream Capability | 3 streams | ||||
Resolution | 1080p (1920 × 1080); 1.3M (1280 × 960); 720p (1280 × 720); D1 (704 × 576/704 × 480); VGA (640 × 480); CIF (352 × 288/352 × 240) | ||||
Bit Rate Control | CBR/VBR | ||||
Video Bit Rate | H.264: 3 Kbps–8192 Kbps | ||||
H.265: 3 Kbps–8192 Kbps | |||||
Day/Night | Auto(ICR)/Color/B/W | ||||
BLC | Yes | ||||
HLC | Yes | ||||
WDR | 120 dB | ||||
White Balance | Auto/natural/street lamp/outdoor/manual/regional custom | ||||
Gain Control | Auto/Manual | ||||
Noise Reduction | 3D DNR | ||||
Motion Detection | OFF/ON (4 areas, rectangular) | ||||
Region of Interest(RoI) | Yes (4 areas) | ||||
Smart IR | Yes | ||||
Image Rotation | °/90°/180°/270° (Support 90°/270° with 1920 × 1080 resolution.) | ||||
Mirror | Yes | ||||
Privacy Masking | 4 areas | ||||
Audio | |||||
Audio Compression | G.711a; G.711Mu; G726; AAC | ||||
Network | |||||
Network | RJ-45 (10/100 Base-T) | ||||
Protocol | IPv4;IPv6;HTTP;HTTPS;TCP;UDP;ARP;RTP;RTSP;RTCP; | ||||
RTMP;SMTP;FTP;SFTP;DHCP;DNS;DDNS;QoS;UPnP;NTP;Multicast;ICMP;IGMP;NFS;PPPoE;802.1x;SNMP | |||||
Interoperability | ONVIF(Profile S/Profile G);CGI;P2P;Milestone;Genetec | ||||
Scene Self-adaptation | Yes | ||||
User/Host | 20 (Total bandwidth: 64 M) | ||||
Edge Storage | FTP; SFTP; Micro SD Card (support max. 256 G); Cloud; NAS | ||||
Browser | IE: IE8, IE9, IE11 | ||||
Chrome | |||||
Firefox | |||||
Management Software | Smart PSS, DSS, DMSS | ||||
Mobile Phone | IOS; Android | ||||
Certification | |||||
Certifications | CE-LVD: EN60950-1 | ||||
CE-EMC: Electromagnetic Compatibility Directive 2014/30/EU | |||||
FCC: 47 CFR FCC Part 15, Subpart B | |||||
UL/CUL: UL60950-1 CAN/CSA C22.2 No.60950-1-07 | |||||
Port | |||||
Audio Input | 1-channel (RCA port) | ||||
Audio Output | 1-channel (RCA port) | ||||
Alarm Input | 1 channel in: 5mA 3V–5V DC | ||||
Alarm Output | 1 channel out: 300mA 12V DC | ||||
Power | |||||
Power Supply | 12V DC/PoE (802.3af) | ||||
Power Consumption | <9.4W | ||||
Environment | |||||
Operating Conditions | -30°C to +60°C (-22°F to +140°F)/less than≤95% | ||||
Strorage Conditions | -40°C to +60°C (-40°F to +140°F) | ||||
Ingress Protection | IP67 | ||||
Structure | |||||
Casing | Metal | ||||
Dimensions | 244.1 mm × 79.0 mm × 75.9 mm | ||||
(9.6" × 3.1" × 3.0") (L × W × H) | |||||
Net Weight | 820 g (1.8lb) | ||||
Gross Weight | 1090 g (2.4lb) |
Dahua IPC HFW3241T ZAS 27135 IP Bullet Kamera Pdf Dosyası510.53 KB
Teknik Kısa
Irled : Var
Çözünürlük : 2MP (1080P)
