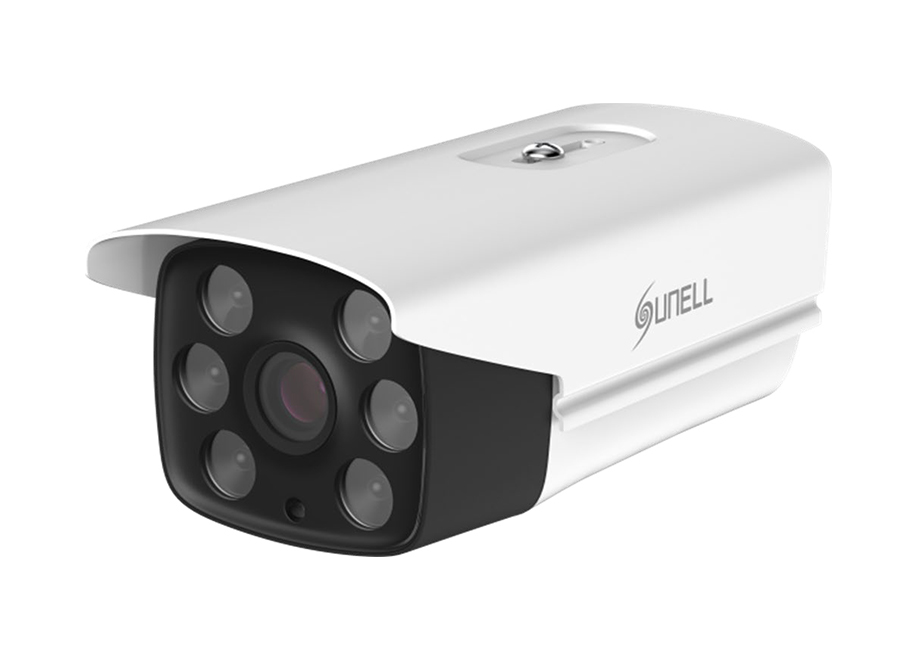

Sunell SN IPR5825CPAW J4 Z IP Bullet Kamera

Özellikler

1/2.8” Progressive Scan CMOS
2.7~13.5mm motorized lens
25fps/30fps@2MP(1920*1080)
Triple streams
Support human body, vehicle, non-motor detection alarm
WDR, 3D DNR, ROI, Defog, HLC, Anti-shake
LED up to 50m
IP66

Teknik Özellikler

Camera
Image Sensor	1/2.8” Progressive Scan CMOS
Effective Pixels	1920(H)×1080(V)
Electronic Shutter	1/5-1/20,000s
Min. illumination	Color: 0.01Lux @(F1.2,AGC ON) ,
Min. illumination	B/W: 0Lux @(IR LED ON)
S/N Ratio	55dB
Day/Night	ICR
Wide Dynamic	WDR (120dB)
Range
LED Range	Up to 50m
LED On/Off Control	Auto/ Manual
White-light LEDs	6pcs
Pan/Tilt/Rotation Range	N/A
Lens
Lens Type	Motorized
Iris	Fixed Iris
Focal Length	2.7~13.5mm
F Number	F1.6
Angle of View	H: 105°~ 30°, V: 55°~15°
Focus Control	Motorized
Video
Compression	H.265, H.264, MJPEG
Max. Resolution	1080P(1920×1080)
Streaming Capability	3 Streams
Stream /	Stream1: 1920×1080/1280×720 @25/30fps
Frame Rate	Stream2: D1/VGA/640×360/CIF/QVGA @25/30fps
Frame Rate	Stream3: VGA/CIF/QVGA @25/30fps
Bit Rate Control	CBR/VBR
Bit Rate	Stream1: 500kbps~12000kbps
	Stream2: 10kbps~6000kbps
	Stream3: 10kbps~3000kbps
Image Enhancement	HLC / BLC / Anti-shake / Defog / WDR (120dB)
White Balance	Support
Gain Control	Auto/Manual
Noise Reduction	2D/3D DNR
Smart IR	Support
Mirror	Support
Aisle Mode	N/A
Region of Interest	Support
Motion Detection	Support
Privacy Masking	Support
Audio
Compression	G.711, RAW_PCM
Bit Rate	8kbps, 16kbps, 64kbps
Network
Protocols	IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, ARP, SNMP
Interoperability	ONVIF, SDK, CGI
Streaming Method	Unicast
Max. User Access	10 Users
Web Viewer	<IE11, Chrome, Firefox
Management Software	SunView
Intelligence
IVS	Perimeter, Single Virtual Fence
IVS	Support sound-light alarm triggering by specified target types (human and vehicle).Filtering out mistaken alarm caused by target types such as leaf, light, animal, and flag, etc.
Smart Detection	Detects human body, vehicle and non-motor automatically
Interface
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio	1ch Input, 1ch Output
Alarm	1ch Input, 1ch Output (Audio output external speaker)
CVBS Output	N/A
RS485	Support
Reset Button	Support
Storage	Built-in Micro SD/SDHC/SDXC slot, up to 128G
Electrical
Power Supply	DC12V/POE (IEEE 802.3af)
Power Consumption	<8W
Operating Temperature	-30°C ~ 50°C (-22°F ~ 122°F )
Operating Humidity	Less than 90% RH
Ingress Protection	IP66
Certifications	CE / FCC
Casing	Metal + Plastic
Dimensions	218×106×99mm
Net Weight	740g
