Açıklama

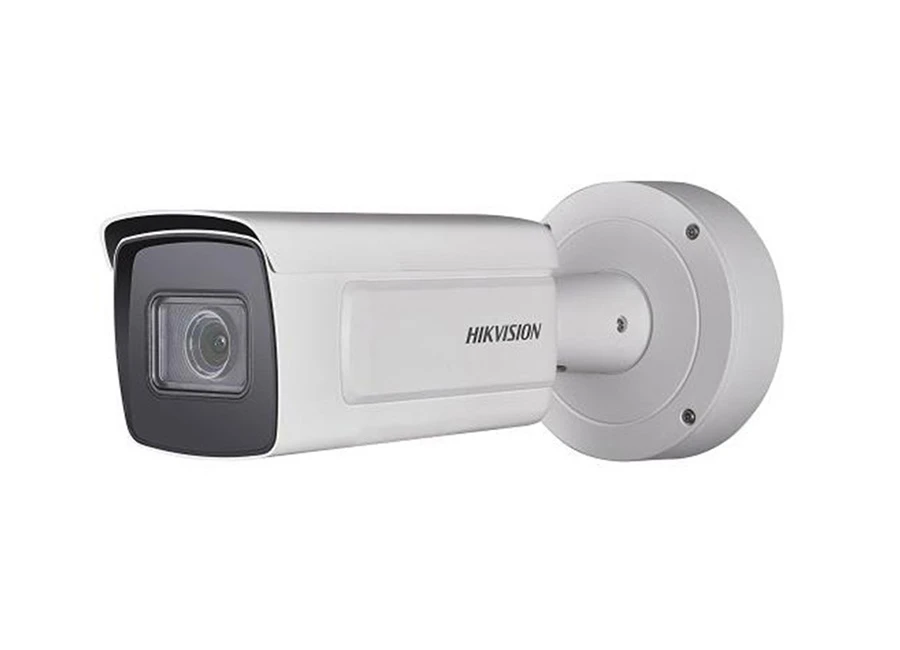

Hikvision DS 2CD5A26G0 IZHSY IP Bullet Kamera

Özellikler

1/1.8” Progressive Scan CMOS
1920 × 1080 @ 60fps
2.8 to 12 mm motor-driven lens
Color: 0.002 Lux @ (F1.2, AGC ON)
H.265, H.265+, H.264, H.264+
140dB WDR
3D DNR
2.8 to 12 mm lens IR range up to 50 m
Five defined streams and up to five custom streams
6 behavior analyses, 2 exception detection, and face detection
Built-in microSD/SDHC/SDXC card slot, up to 256 GB
Alarm I/O
IP67, IK10
Anti-Corrosion NEMA 4X

Teknik Özellikler

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
İşaret Sistemi	PAL/NTSC
Minimum Aydınlatma	Color 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Slow shutter	Support
Objektif Hızı	1 s to 1/100,000 s
Lens	2.8 to 12 mm, horizontal FOV 103.3° to 38.6°, vertical FOV 54.2° to 21.9°, diagonal FOV 124.2° to 44.3°
Lens Mount	Integrated
Ayarlanan Aralık	Bracket, pan 0° to 355°, tilt 0° to 75°, rotate 0° to 360°
Day& Night	IR Cut Filter
Wide Dynamic Range	140dB
Dijtal Gürültü Azaltma	3D DNR
Focus	Auto, semi-auto, manual
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
H.264 Türü	Baseline Profile/Main Profile/High Profile
Video bit rate	32Kbps~16Mbps
Çift Akış	Yes
Üçüncü Akım	Yes
Max. Image Resolution	1920 x 1080
Ana Akış	50Hz 25fps (704 × 576, 640 × 480)
	60Hz 30fps (704 × 480, 640 × 480)
Çerçeve Hızı	50Hz 50fps (1920 × 1080, 1280 × 960, 1280 × 720)
	60Hz 60fps (1920 × 1080, 1280 × 960, 1280 × 720)
Üçüncül Akış	50Hz 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)
	60Hz 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480)
Görüntü İyileştirme	BLC, HLC, 3D DNR, Defog, EIS, Lens Distortion Correction
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Bölgesel Kırpma	Yes
ROI	4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking
Resim Yerleşimi	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Gündüz / Gece Anahtarı	Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Network Storage	Support microSD/SDHC/SDXC card (256 GB) local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
System Compatibility	ONVIF (PROFILE S, PROFILE G), ISAPI, SDK
Intelligent
Behavior analysis	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Interface
Alarm	2 inputs, 2 outputs (up to 12 VDC 1A or 10 VAC 500 mA)
Video Output	1Vp-p composite output (75 Ω/CVBS)
Dahili Depolama	Built-in micro SD/SDHC/SDXC slot, up to 256 GB
Reset Butonu	Yes
Smart Feature-set
Sınır İhlali	Cross a pre-defined virtual line
Saldırı Algılama	Enter and loiter in a pre-defined virtual region
Bölge Giriş	Enter a pre-defined virtual region from the outside place
Bölge Çıkma	Exit from a pre-defined virtual region
Bırakılan Eşya	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Alınan Eşya	Objects removed from the pre-defined region, such as the exhibits on display.
İstisna Algılamaları	Scene change detection, defocus detection
Tanıma	Face Detection
Statistics	Counting which calculates the number of targets entering and exiting a configured area
General
Power Supply	12 VDC ± 20%, PoE (802.3at, class 4), three-core terminal blocks
GÜç Tüketimi	-IZSY 12 VDC, 1.0 A, max. 11 W; PoE (802.3at, class4) 42.5 V to 57 V, 0.4 A to 0.2 A
GÜç Tüketimi	-IZHSY 12 VDC, 1.2 A, max. 13.5 W; PoE (802.3at, class4) 42.5 V to 57 V, 0.4 A to 0.3 A
Impact Protection	IK10
Weather Proof	IP67
Boyutlar	Camera Φ140 × 351 mm (Φ5.5″ × 13.8″)
Boyutlar	With package 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″)
Ağırlık	Camera approx. 2.2 kg (4.8 lb.)
Ağırlık	With package approx. 2.7 kg (5.95 lb.)
