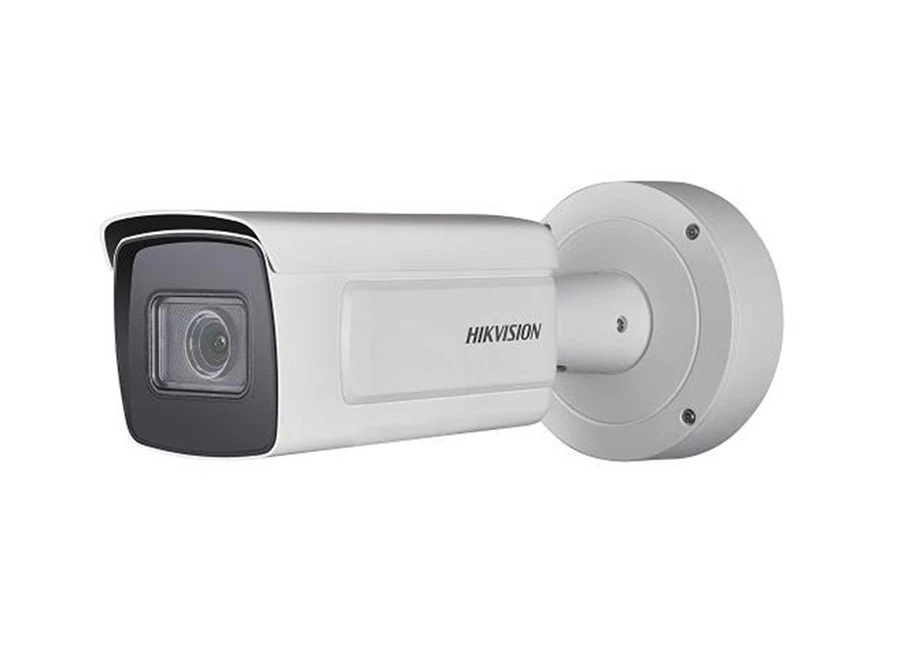

Hikvision DS 2CD5A46G0 IZSHY IP Bullet Kamera
Özellikler
- 1/1.8” Progressive Scan CMOS
- 2560 × 1440 @ 30 fps, MJPEG up to 1920 × 1080 @ 30 fps
- 2.8 to 12 mm motor-driven lens
- Color 0.002 Lux @ (F1.2, AGC ON)
- H.265, H.265+, H.264, H.264+
- 140dB WDR
- 3D DNR
- IR range up to 50 m
- Five defined streams and up to five custom streams
- 6 behavior analyses, 2 exception detection, and face detection
- Built-in microSD/SDHC/SDXC card slot, up to 256 GB
- Alarm I/O
- IP67, IK10
- Anti-Corrosion NEMA 4X
Teknik Özellikler
Camera | |
Image Sensor | 1/1.8" Progressive Scan CMOS |
İşaret Sistemi | PAL/NTSC |
Minimum Aydınlatma | Color 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR |
Slow shutter | Support |
Objektif Hızı | 1 s to 1/100,000 s |
Lens | 2.8 to 12 mm, horizontal FOV 109.2° to 38.9°, vertical FOV 56.2° to 21.9°, diagonal FOV 134.5° to 45° |
Ayarlanan Aralık | Bracket, pan 0° to 355°, tilt 0° to 75°, rotate 0° to 360° |
Wide Dynamic Range | 140dB |
Dijtal Gürültü Azaltma | 3D DNR |
Compression Standard | |
H.264 Türü | Baseline Profile/Main Profile/High Profile |
Video bit rate | 32Kbps~16Mbps |
Çift Akış | Yes |
Üçüncü Akım | Yes |
Image | |
Max. Image Resolution | 2560 × 1440 |
Ana Akış | 50Hz 25fps (704 × 576, 640 × 480) |
60Hz 30fps (704 × 480, 640 × 480) | |
Çerçeve Hızı | 50Hz 25fps (2560 × 1440, 1920 × 1080, 1280 × 720) |
60Hz 30fps (2560 × 1440, 1920 × 1080, 1280 × 720) | |
Üçüncül Akış | 50Hz 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) |
60Hz 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480) | |
Görüntü İyileştirme | BLC, HLC, 3D DNR, Defog, EIS, Lens Distortion Correction |
Bölgesel Kırpma | Yes |
ROI | 4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking |
Resim Yerleşimi | LOGO picture can be overlaid on video with 128 × 128 24bit bmp format |
Gündüz / Gece Anahtarı | Day/Night/Auto/Schedule/Triggered by Alarm In |
Network | |
Protokoller | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour |
Intelligent | |
Behavior analysis | Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection |
Interface | |
Alarm | 2 inputs, 2 outputs (up to 12 VDC 1A or 10 VAC 500 mA) |
Reset Butonu | Yes |
Smart Feature-set | |
Sınır İhlali | Cross a pre-defined virtual line |
Saldırı Algılama | Enter and loiter in a pre-defined virtual region |
Bölge Giriş | Enter a pre-defined virtual region from the outside place |
Bölge Çıkma | Exit from a pre-defined virtual region |
Bırakılan Eşya | Objects left over in the pre-defined region such as the baggage, purse, dangerous materials |
Alınan Eşya | Objects removed from the pre-defined region, such as the exhibits on display. |
Statistics | Counting which calculates the number of targets entering and exiting a configured area |
General | |
Power Supply | 12 VDC ± 20%, PoE (802.3at, class 4), three-core terminal blocks |
GÜç Tüketimi | -IZSY 12 VDC, 1.0 A, max. 11 W; PoE (802.3at, class4) 42.5 V to 57 V, 0.4 A to 0.2 A |
-IZHSY 12 VDC, 1.2 A, max. 13.5 W; PoE (802.3at, class4) 42.5 V to 57 V, 0.4 A to 0.3 A | |
Impact Protection | IK10 |
Weather Proof | IP67 |
Boyutlar | Camera Φ140 × 351 mm (Φ5.5″ × 13.8″) |
With package 405 × 190 × 180 mm (15.9″ × 7.5″ × 7.1″) | |
Ağırlık | Camera approx. 2.2 kg (4.8 lb.) |
With package approx. 2.7 kg (5.95 lb.) |
Hikvision DS 2CD5A46G0 IZSHY IP Bullet Kamera Pdf Dosyası871.07 KB
Teknik Kısa
Irled : Var
Çözünürlük : 4MP
