Açıklama

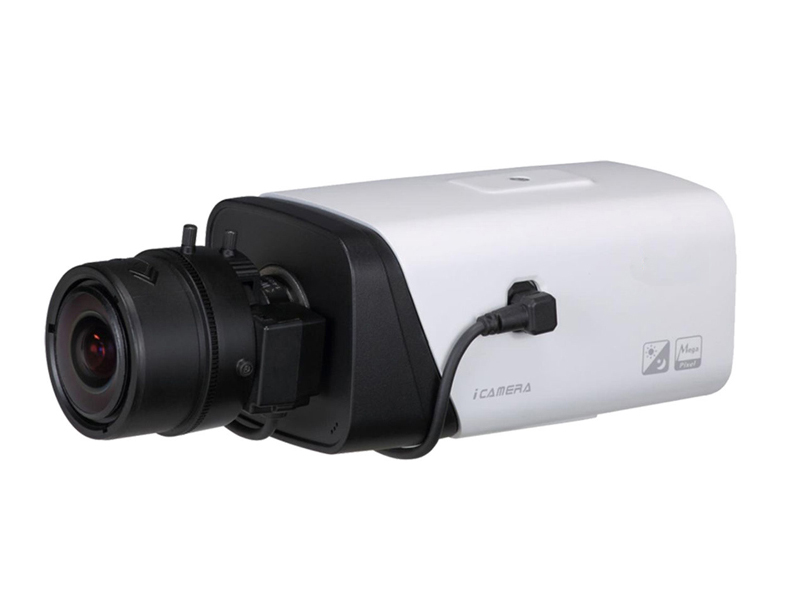

Neutron IPC HF8301E IP HD Box Kamera
Özellikler
- 1/3" 3 Megapixel progressive scan CMOS
- Support H.264/MJPEG dual codec
- Smart triple streams supported
- Max 25/30fps @ 3MP(2048x1536)
- Ultra WDR (Wide Dynamic Range) up to 120dB
- Ultra 3D DNR
- Ultra Defog, ROI, EIS
- Smart detection:
- Face detection
- Tripwire detection
- Intrusion detection
- Scene change detection
- Auto back focus
- Bulit-in Mic
- 100/1000M Base-T Ethernet
Teknik Özellikler
| Model | DH-IPC-HF8301EP | DH-IPC-HF8301EN | |
| Camera | |||
| Image Sensor | 1/3” 3Megapixel CMOS | ||
| Effective Pixels | 2048(H)x1536(V) | ||
| Scanning System | Progressive | ||
| Electronic ShutterSpeed | Auto/Manual, 1/3~1/10000s | Auto/Manual, 1/4~1/10000s | |
| Min. Illumination | Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2; 0Lux/F1.2(IR on) | ||
| S/N Ratio | More than 52dB | ||
| Video Output | 1 channel BNC（1.0Vp-p,75Ω） | ||
| Camera Features | |||
| Max. IR LEDs Length | N/A | ||
| Day/Night | Auto(ICR)/Color/B/W | ||
| Backlight Compensation | BLC / HLC / WDR 120dB | ||
| White Balance | Auto/Manual | ||
| Gain Control | Auto/Manual | ||
| Noise Reduction | Ultra 3D | ||
| Privacy Masking | Up to 4 areas | ||
| EIS | Support | ||
| Ultra Defog | Support | ||
| Smart focus | ABF | ||
| Lens | |||
| Mount Type | C/CS | ||
| Video | |||
| Compression | H.264/MJPEG | ||
| Resolution | 3M(2048×1536)/1080P(1920×1080)/720P(1280×720) /D1(704×576) /CIF(352×288) | ||
| Frame Rate | Main Stream | 3M/1080P (1~25/30fps) | |
| Sub Stream | D1/CIF(1 ~ 25/30fps) | ||
| Third Stream | 1080P/720P/D1(1 ~ 25/30fps) | ||
| Bit Rate | H.264: 48K ~ 8192Kbps | ||
| ROI | Up to 4 areas | ||
| Audio | |||
| Compression | G.711a / G.711u | ||
| Interface | 2/1 channel In/Out | ||
| Smart Function | |||
| Smart detection | Tripwire | ||
| Intrusion | |||
| Scene change | |||
| Missing/Abandoned | |||
| Audio detect | |||
| Face detect | |||
| Network | |||
| Ethernet | RJ-45 (10/100/1000Base-T) | ||
| Wi-Fi | N/A | ||
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | ||
| Compatibility | ONVIF, PSIA, CGI | ||
| Max. User Access | 20 users | ||
| Smart Phone | iPhone, iPad, Android, Windows Phone | ||
| Auxiliary Interface | |||
| Memory Slot | Micro SD, Max 64GB | ||
| Alarm | 2/1 channel In/Out | ||
| General | |||
| Power Supply | DC12V(AC24V optional), PoE (802.3af) | ||
| Power Consumption | Max 3.5W | ||
| Working Environment | -20°C~+60°C, Less than 95% RH | ||
| Ingress Protection | N/A | ||
| Dimensions | 71.4mm×65.5mm×135.4mm | ||
| Weight | 0.3Kg | ||
Teknik Kısa
Çözünürlük : 3MP
Depolama : Var
