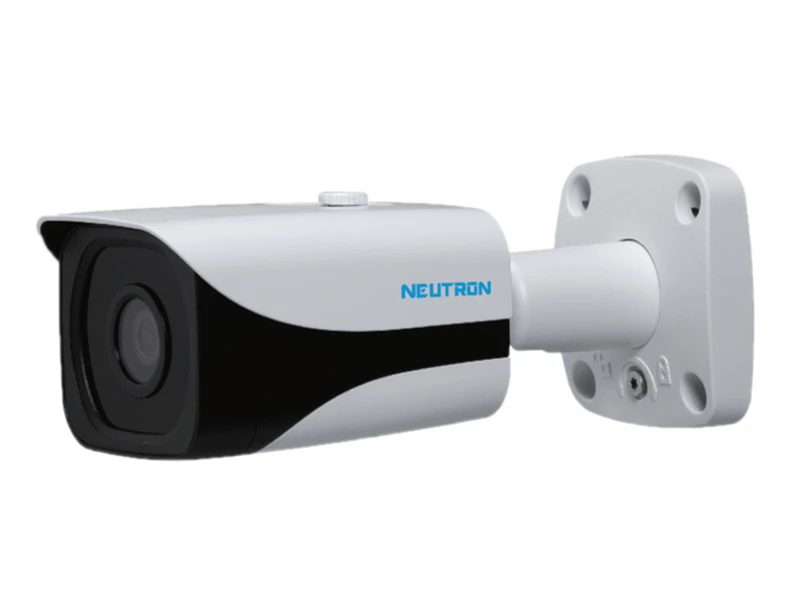

Neutron IPC HFW8301E IP HD Box Kamera

Özellikler

1/3" 3 Megapixel progressive scan CMOS
Support H.264/MJPEG dual codec
Smart triple streams supported
Max 25/30fps @ 3MP(2048x1536)
Ultra WDR (Wide Dynamic Range) up to 120dB
Ultra 3D DNR
Ultra Defog, ROI, EIS
Smart IR technology
Smart detection:
Face detection
Tripwire detection
Intrusion detection
Scene change detection
100/1000M Base-T Ethernet
Micro SD memory, IP66, PoE

Teknik Özellikler

Model	DH-IPC-HFW8301EP		DH-IPC-HFW8301EN
Camera
Image Sensor	1/3” 3Megapixel Aptina CMOS
Effective Pixels	2048(H)x1536(V)
Scanning System	Progressive
Electronic ShutterSpeed	Auto/Manual, 1/3~1/10000s		Auto/Manual, 1/4~1/10000s
Min. Illumination	Color: 0. 1Lux/F1.2, B/W: 0.01Lux/F1.2; 0Lux/F1.2(IR on)
S/N Ratio	More than 50dB
Video Output	1 channel BNC（1.0Vp-p，75Ω）
Camera Features
Max. IR LEDs Length	30m，Smart IR technology
Day/Night	Auto(ICR)/Color/B/W
Backlight Compensation	BLC / HLC / WDR 120dB
White Balance	Auto/Manual
Gain Control	Auto/Manual
Noise Reduction	3D
Privacy Masking	Up to 4 areas
EIS	Support
Ultra Defog	Support
Lens
Focal Length	2.7mm~12mm
Max Aperture	F1.4
Focus Control	Manual
Angle of View	H: 82°~25°
Lens Type	Manual/ Auto Iris(DC)
Mount Type	Board-in Type
Video
Compression	H.264/MJPEG
Resolution	3M(2048×1536)/1080P(1920×1080)/720P(1280×720) /D1(704×576) /CIF(352×288)
Frame Rate	Main Stream	3M/1080P (1~25/30fps)
	Sub Stream	D1/CIF(1 ~ 25/30fps)
	Third Stream	1080P/720P/D1(1 ~ 25/30fps)
Bit Rate	H.264: 48K ~ 8192Kbps
ROI	Up to 4 areas
Audio
Compression	G.711a / G.711u
Interface	1/1 channel In/Out
Smart Function
Smart detection	Tripwire
	Intrusion
	Scene change
	Missing/Abandoned
	Audio detect
	Face detect
Network
Ethernet	RJ-45 (10/100/1000Base-T)
Wi-Fi	N/A
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour
Compatibility	ONVIF, PSIA, CGI
Max. User Access	20 users
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	Micro SD, Max 64GB
Alarm	1/1 channel In/Out
General
Power Supply	DC12V(AC24V optional), PoE (802.3af)
Power Consumption	Max 12W
Working Environment	-20°C~+60°C, Less than 90% RH
Ingress Protection	IP66
Dimensions	273.3mm × 94.8mm× 94.8mm
Weight	1.3kg
