Açıklama

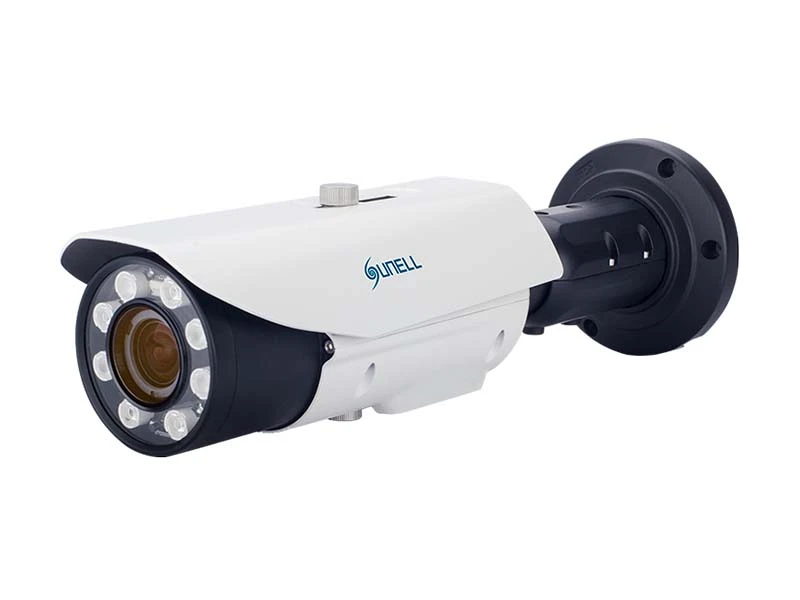

Z IP Bullet Kamer

Özellikler

1/1.7” Progressive Scan CMOS
Motorized lens4.1~12.8mm
20fps@12MP(4000*3000)
Triple Streams
Smart IR Up to 80m
Low bitrate ,Excellent low light performance
dWDR,3D DNR, P-Iris
ROI, Defog, HLC, Corridor mode, DIS
IP67,IK10 optional

Teknik Özellikler

Camera
Image Sensor	1/1.7” Progressive Scan CMOS
Effective Pixels	4000(H)×3000 (V)
Scanning System	Progressive
Electronic Shutter	1/5-1/20000s
Min. illumination	Color:0.009Lux@(F1.2,AGC ON)
Min. illumination	B/W:0Lux@(IR LED ON)
S/N Ratio	55dB
IR Range	Up to 80m
IR On/Off Control	Auto/ Manual
IR LEDs	8pcs
Pan/Tilt/Rotation Range	Pan:0˚~360˚, Tilt:0˚~90˚, Rotation:0˚~360˚
Lens
Lens Type	Motorized
Iris	P-Iris
Focal Length	4.1~12.8mm
F Number	F1.53
Angle of View	98°~ 34.5°
Focus Control	Motorized
Close Focus Distance	1m
Video
Compression	H.265,H.264,MJPEG
Max. Resolution	12MP(4000×3000)
Streaming Capability	3 Streams
Stream /	Stream1: 4000×3000 @20fps, 4096×2160/3840×2160/ 1920×1080/1280×720 @25/30fps
Frame Rate	Stream2: D1/VGA/640×360/CIF @25/30fps
Frame Rate	Stream3: VGA/CIF/QVGA @25/30fps
Bit Rate Control	CBR/VBR
Bit Rate	Stream1: 500kbps~16000kbps
	Stream2: 100kbps~6000kbps
	Stream3: 100kbps~3000kbps
Day/Night	ICR
Image Enhancement	HLC / Defog / dWDR
White Balance	Support
Gain Control	Auto/Manual
Noise Reduction	2D/3D DNR
Electronic Image Stabilization(EIS)	Support
Smart IR	Support
Mirror	Support
Region of Interest	Support
Motion Detection	Support
Privacy Masking	Support
Audio
Compression	G.711 ,RAW_PCM
Bit Rate	64kbps (G.711), 128kps (RAW_PCM)
Network
Protocols:	IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, APR, SNMP
Interoperability	ONVIF
Streaming Method	Unicast
Max. User Access	10 Users
Web Viewer	<IE11, Chrome, Firefox
Management Software	IMS 3.0
Smart Phone	IOS, Android
Intelligence
IVS	Perimeter ,Single Virtual Fences ,Double Virtual Fences, Loiter, Multi Loiter , Object Left ,Object Removed, Abnormal Speed ,Converse, Illegal Parking, Signal Bad
Interface
Ethernet	1 Ethernet (10/100 Base-T) RJ-45 Connector
Audio Interface	1ch Audio In,1ch Audio Out
Alarm	1ch Alarm In,1ch Alarm Out
RS485	Support
BNC Output	Support
Reset Button	Support
Edge Storage	Micro SD/SDHC ,Max 128GB
Electrical
Power Supply	DC12V/POE
Power Consumption	5W(IR LED OFF),8W（IR LED ON）
Operating Temperature	Starting Temperature: -30°C ~ 60°C (-22°F ~ 140°F )
Operating Temperature	Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F)
Operating Humidity	Less than 90% RH
Ingress Protection	IP67 (IK10 optional)
Certifications	CE / FCC
Casing	Metal
Dimensions	φ110×375.5mm
Net Weight	1680g
