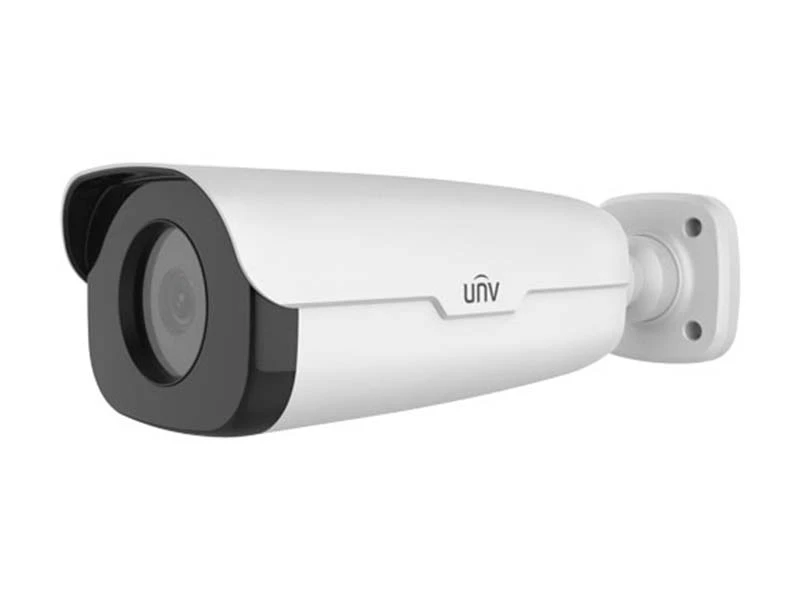

Uniview IPC252ERA X22DUP IP Bullet Kamera
Özellikler
Teknik Özellikler
| IPC252ERA-X22DUP | |||||
| Camera | |||||
| Sensor | 1/1.8", progressive scan , 2.0 megapixel, CMOS | ||||
| Lens | 6.5 ~ 143 mm, AF automatic focusing and motorized zoom lens | ||||
| Optical Zoom | 22 | ||||
| DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
| 6.5mm | 78 | 31.2 | 15.6 | 7.8 | |
| 143mm | 1716 | 686.4 | 343.2 | 171.6 | |
| Angle of view(H)59°~3° | |||||
| Angle of View (V) | 34.6°~1.6° | ||||
| Angle of View (O) | 76.7°~3.7° | ||||
| Adjustment angle | Pan: 0°~360° | ||||
| Shutter | Auto/Manual, 1~1/100000 s | ||||
| Minimum | Colour: 0.001 Lux (F1.5, AGC ON) | ||||
| Illumination | 0 Lux with IR | ||||
| Iris | Auto/Manual, F1.5~F3.4, DC-Iris | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >52 dB | ||||
| IR Range | up to 200 m (656 ft) IR range | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
| Frame Rate | Main Stream:2MP (1920×1080):Max. 60 fps; | ||||
| Sub Stream:2MP (1920×1080):Max. 60 fps; | |||||
| Third Stream: D1 (720×576): Max. 60 fps | |||||
| 9:16 Corridor Mode | Supported | ||||
| ROI | Supported | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| OSD | Up to 8 OSDs | ||||
| Motion Detection | Up to 4 areas | ||||
| Privacy Mask | Up to 8 areas | ||||
| Smart | |||||
| Behavior Detection | Intrusion, cross line, motion detection | ||||
| Intrusion | Enter and loiter in a pre-defined virtual region | ||||
| cross line | Cross a pre-defined virtual line | ||||
| motion detection | Moving within a pre-defined virtual region | ||||
| Recognition: | Face detection、Audio detection | ||||
| Intelligent Identification | Defocus, Scene Change, Object Left, Object Moving | ||||
| Statistical Analysis | People counting | ||||
| General Function | Watermark, IP Address Filtering, Tampering Alarm, Alarm input, Alarm output, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Two-way audio | Supported | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8 KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 128 GB | ||||
| Network Storage | ANR | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP | ||||
| Compatible Integration | ONVIF(Profile S, Profile G), API | ||||
| Interface | |||||
| Audio I/O | Audio cable | ||||
| 1 Input: impedance 35 kΩ; amplitude 2 V [p-p] | |||||
| 1 Output: impedance 600 Ω; amplitude 2 V [p-p] | |||||
| Alarm I/O | 2/1 | ||||
| Serial Port | 1 RS485 | ||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| Video Output | 1 BNC, impedance 75 Ω; amplitude 1 V [p-p] | ||||
| General | |||||
| Power | 24 V AC ±25%, -P: PoE(IEEE 802.3at) | ||||
| Power consumption: Max 21W | |||||
| Dimensions (L × W × H) | 396.5 × 137 × 112mm (15.6” ×5.4” ×4.4”) | ||||
| Weight | 3.7 kg (8.2 lb) | ||||
| Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity ≤ 95% RH(non-condensing) | ||||
| Ingress Protection | IP67 | ||||
| Reset Button | Supported | ||||
Uniview IPC252ERA X22DUP IP Bullet Kamera Pdf Dosyası883.47 KB
