Açıklama

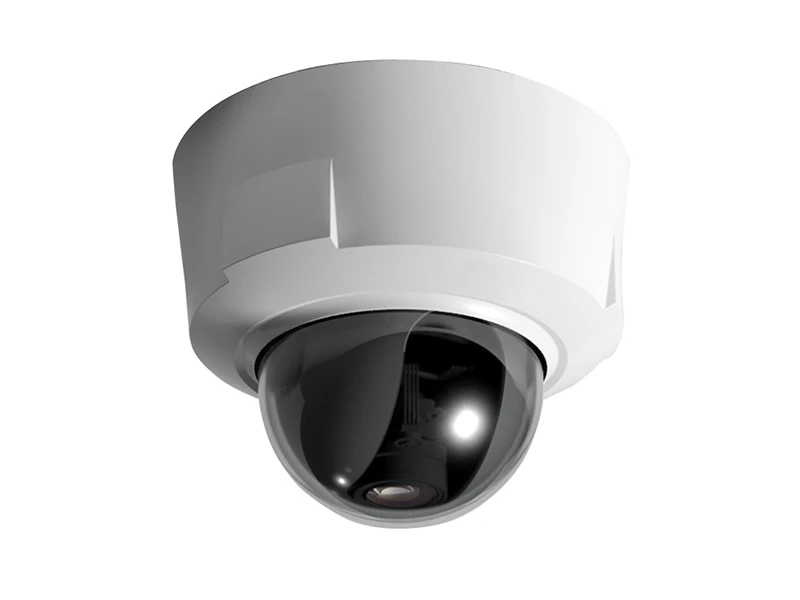

Dahua DH IPC HDB3100 IP HD Dome Kamera

Özellikler

1/3 "CMOS 1.3Mp Aptina
H.264/MJPEG dual-stream
Max 15fps @ 1.3M (1280 × 960), 25/30fps @ 720p
Lens: 2.8 ~ 12mm/F1.4
D & N (ICR), Auto Iris, Micro SD
IK10, IP66, 12V CC, PoE
Material: Metal

Teknik Özellikler

Model		DH-IPC-HDB3100P	DH-IPC-HDB3100N
Camera
Image Sensor	1/3 "CMOS 1.3megapixel Aptina
Effective Pixels	1280 (H) x960 (V)
Scanning System	Progressive
Electronic ShutterSpeed	Auto / Manual 1/3 ~ 1/10000		Auto / Manual 1/4 ~ 1/10000
Min. Illumination	0.1lux/F1.4 (color), 0.005Lux/F1.4 (B / W)
S / N Ratio	> 50 dB
Camera Features
Day/Night	Auto (ICR) / Color / B / W
Backlight Compensation	Off / BLC / HLC / DWDR
White Balance	AUTO
Gain Control	Auto / Manual
Noise Reduction	2D
Privacy Masking	Hasta 4 zonas
Lens
Focal Length	2,8 ~ 12 mm
Max Aperture	F1.4
Focus Control	Manual
Angle of View	H: 92 º (Wide) ~ 27,2 ° (Tele)
Lens Type	Manual / Auto Iris (DC)
Mount Type	Consejo-en el tipo
Vídeo
Compression	H.264 / MJPEG
Resolution	1.3M (1280 x 960) / 720p (1280 × 720) / D1 (704 × 576) / CIF (352 × 288) /		1.3M (1280 x 960) / 720p (1280 × 720) / D1 (704 × 480) / CIF (352 × 240) /
Frame Rate	Main Stream	1.3M/720P (1 ~ 25/30fps)
	Sub Stream	D1/CIF (1 ~ 25/30fps)
Bit Rate	H.264: 32K ~ 8192kbps, MJPEG: ~ 32K 12288Kbps
Audio
Compression	G.711a / G.711u (64kbps) / PCM (128kbps)
Interface	1/1 canal de entrada / salida
Network
Ethernet	RJ-45 (10/100Base-T)
Protocol	IPv4/IPv6, HTTP, HTTPS, SSL, TCP / IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPoE, DDNS, FTP, filtro IP, QoS, Bonjour
ONVIF	Ver ONVIF. 2.0
Max. User Access	10 usuarios
Smart Phone	iPhone, iPad, Android, Windows Phone
Auxiliary Interface
Memory Slot	Micro SD, 32GB máximo
Alarm	1/1 canal de entrada / salida
General
Power Supply	12V CC, PoE (802.3af)
Power Consumption	<6w td="">
Working Environment	-10 ° C ~ 60 ° C, 10% ~ 90%
Dimensions	Φ151mm × 119mm
Weight	1.1kg
