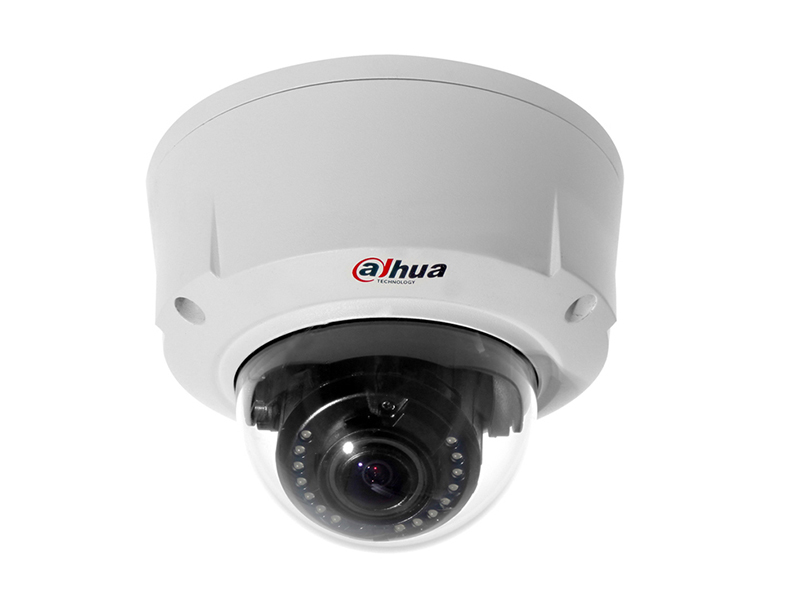

Dahua DH IPC HDW3100P IP HD Dome Kamera
Özellikler
- 1/3” 1.3Megapixel progressive scan Aptina CMOS
- H.264 & MJPEG dual-stream encoding
- Max 15fps @ 1.3M(1280×960)&25/30fps @ 720P(1280×720)
- Day/Night(ICR), 2DNR, Auto iris, AWB, AGC, BLC
- Multiple network monitoring: Web viewer, CMS(DSS/PSS) & DMSS
- 2.8~12mm varifocal lens
- Built-in 1/1 alarm in/out
- Max IR LEDs length 20m
- Micro SD memory, PoE
Teknik Özellikler
| Camera | ||
| Image Sensor | 1/3” 1.3Megapixel Aptina CMOS | |
| Effective Pixels | 1280(H)x960(V) | |
| Scanning System | Progressive | |
| Electronic ShutterSpeed | Auto/Manual 1/3~1/10000 | |
| Min. Illumination | 0.1lux/F1.4(color),0.005Lux/F1.4(B/W),0Lux(IR on) | |
| S/N Ratio | >50dB | |
| Camera Features | ||
| Max. IR LEDs Length | 20m | |
| Day/Night | Auto(ICR)/Color/B/W | |
| Backlight Compensation | Off/BLC/HLC/DWDR | |
| White Balance | AUTO | |
| Gain Control | Auto/Manual | |
| Noise Reduction | 2D | |
| Privacy Masking | Up to 4 areas | |
| Lens | ||
| Focal Length | 2.8~12mm | |
| Max Aperture | F1.4 | |
| Focus Control | Manual | |
| Angle of View | H: 92°(Wide)~27.2°(Tele) | |
| Lens Type | Manual/Auto Iris (DC) | |
| Mount Type | Board-in Type | |
| Video | ||
| Compression | H.264 / MJPEG | |
| Resolution | 1.3M(1280×960) / 720P(1280×720) / D1(704×576) / CIF(352×288) / | |
| Frame Rate | Main Stream | 1.3M(1 ~ 15fps)/720P(1 ~ 25/30fps) |
| Sub Stream | D1/CIF(1 ~ 25/30fps) | |
| Bit Rate | H.264: 32K ~ 8192Kbps, MJPEG: 32K ~ 12288Kbps | |
| Audio | ||
| Compression | G.711a / G.711u (64kbps)/ PCM(128kbps) | |
| Interface | 1/1 channel In/Out | |
| Network | ||
| Ethernet | RJ-45 (10/100Base-T) | |
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour | |
| ONVIF | ONVIF Ver. 2.0 | |
| Max. User Access | 10 users | |
| Smart Phone | iPhone, iPad, Android, Windows Phone | |
| Auxiliary Interface | ||
| Memory Slot | Micro SD, Max 32GB | |
| Alarm | 1/1 channel In/Out | |
| General | ||
| Power Supply | DC12V, PoE(802.3af) | |
| Power Consumption | <6W | |
| Working Environment | -10°C~+60°C, 10%~90% | |
| Dimensions | Φ140.3x113.7mm | |
| Weight | 0.8kg | |
Teknik Kısa
Çözünürlük : 1.3MP
Irled : Var
Depolama : Var
