Açıklama

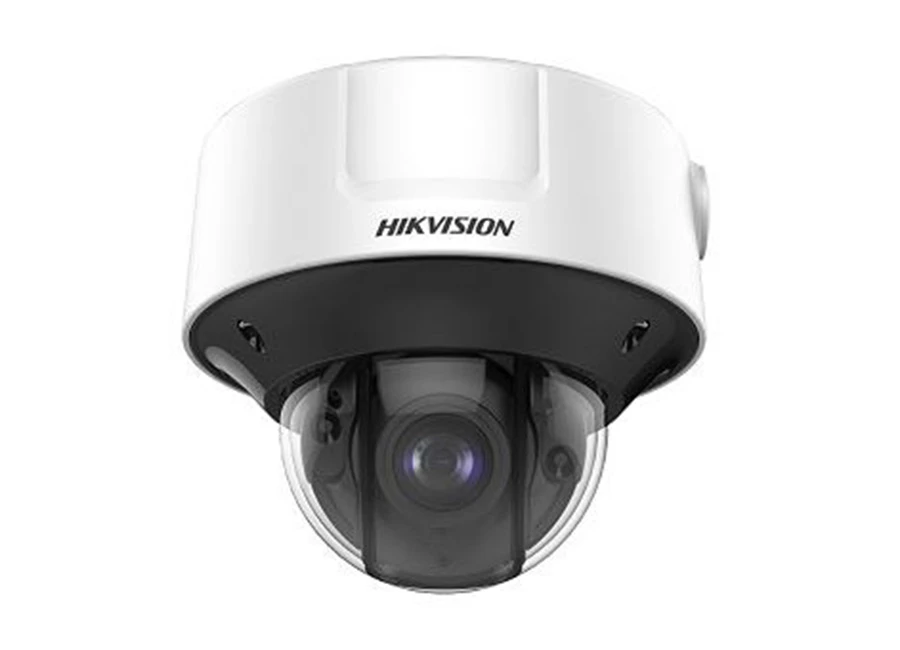

Hikvision DS 2CD5546G0 IZHSY IP Dome Kamera

Özellikler

1/1.8” Progressive Scan CMOS
2560 × 1440 @ 30fps, MJPEG up to 1920 × 1080 @ 30fps
2.8 to 12 mm motor-driven lens
Color 0.002 Lux @ (F1.2, AGC ON)
H.265, H.265+, H.264, H.264+
140dB WDR
3D DNR
IR range up to 30 m
Five streams and up to five custom streams
6 behavior analyses, 3 exception detection, and face detection
Built-in microSD/SDHC/SDXC card slot, up to 256 GB
Alarm I/O
IP67, IK10
Anti-IR reflection
Anti-Corrosion NEMA 4X

Teknik Özellikler

Camera
Image Sensor	1/1.8" Progressive Scan CMOS
İşaret Sistemi	PAL/NTSC
Minimum Aydınlatma	Color 0.002 Lux @ (F1.2, AGC ON), 0 Lux with IR
Slow shutter	Yes
Objektif Hızı	1 s to 1/100,000 s
Lens	2.8 to 12 mm, horizontal FOV 109.2° to 38.9°, vertical FOV 56.2° to 21.9°, diagonal FOV 134.5° to 45°
Ayarlanan Aralık	Pan 0° to 355°, tilt 0° to 75°, rotate 0° to 355°
Wide Dynamic Range	140dB
Dijtal Gürültü Azaltma	3D DNR
Compression Standard
H.264 Türü	Baseline Profile/Main Profile/High Profile
Video bit rate	32Kbps~16Mbps
Ses Bit Hızı	64Kbps(G.711)/16Kbps(G.722.1)/16Kbps(G.726)/32-192Kbps(MP2L2)
Çift Akış	Yes
Üçüncü Akım	Yes
Max. Image Resolution	2560 × 1440
Ana Akış	50Hz 25fps (704 × 576, 640 × 480)
	60Hz 30fps (704 × 480, 640 × 480)
Çerçeve Hızı	50Hz 25fps (2560 × 1440, 1920 × 1080, 1280 × 720)
	60Hz 30fps (2560 × 1440, 1920 × 1080, 1280 × 720)
Üçüncül Akış	50Hz 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480)
	60Hz 30fps (1920 × 1080, 1280 × 960,1280 × 720, 704 × 480, 640 × 480)
Görüntü İyileştirme	BLC, HLC, Defog, EIS, 3D DNR, Lens Distortion Correction
Bölgesel Kırpma	Yes
ROI	4 fixed regions for main stream, sub stream, third stream, fourth stream, and fifth stream, and dynamic face tracking
Resim Yerleşimi	LOGO picture can be overlaid on video with 128 × 128 24bit bmp format
Gündüz / Gece Anahtarı	Auto/Schedule/Day/Night/Triggered by Alarm In
Network
Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
Intelligent
Behavior analysis	Line crossing detection, intrusion detection, region entrance detection, region exiting detection, unattended baggage detection, object removal detection
Interface
Alarm	1-ch input, 1-ch output (up to 12 VDC 1A or 10 VAC 500 mA)
Alarm Girişi	1
Alarm Çıkışı	1
Reset Butonu	Yes
Audio
Çevre Gürültü Filtreleme	Support
Smart Feature-set
Sınır İhlali	Cross a pre-defined virtual line
Saldırı Algılama	Enter and loiter in a pre-defined virtual region
Bölge Giriş	Enter a pre-defined virtual region from the outside place
Bölge Çıkma	Exit from a pre-defined virtual region
Bırakılan Eşya	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Alınan Eşya	Objects removed from the pre-defined region, such as the exhibits on display.
Statistics	Counting which calculates the number of targets entering and exiting a configured area
General
Power Supply	Recommended DC input 12 V, voltage range of 10 to 48 VDC allowed; three-core terminal block,PoE (802.3at, class 4)
GÜç Tüketimi	-IZSY
	With extra load 12 VDC, 1.1 A, max. 12 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4
	Without extra load 12 VDC, 0.95 A, max. 10 W; PoE (802.3at, 42.5 V to 57 V), 0.3 A to 0.2 A, class 4
	-IZHSY
	With extra load 12 VDC, 1.4 A, max. 17 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4
	Without extra load 12 VDC, 1.2 A, max. 15 W; PoE (802.3at, 42.5 V to 57 V), 0.4 A to 0.3 A, class 4
	“with extra load” means that an extra device is connected to and powered by the camera.
Impact Protection	IK10
Weather Proof	IP67
Boyutlar	Camera Φ162 × 140 mm (Φ6.4″ × 5.5″)
Boyutlar	With package 251 × 215 × 189 mm (9.9″ × 8.5″ × 7.4″)
Ağırlık	Camera 1500 g (3.31 lb.)
Ağırlık	With package 1950 g (4.30 lb.)
