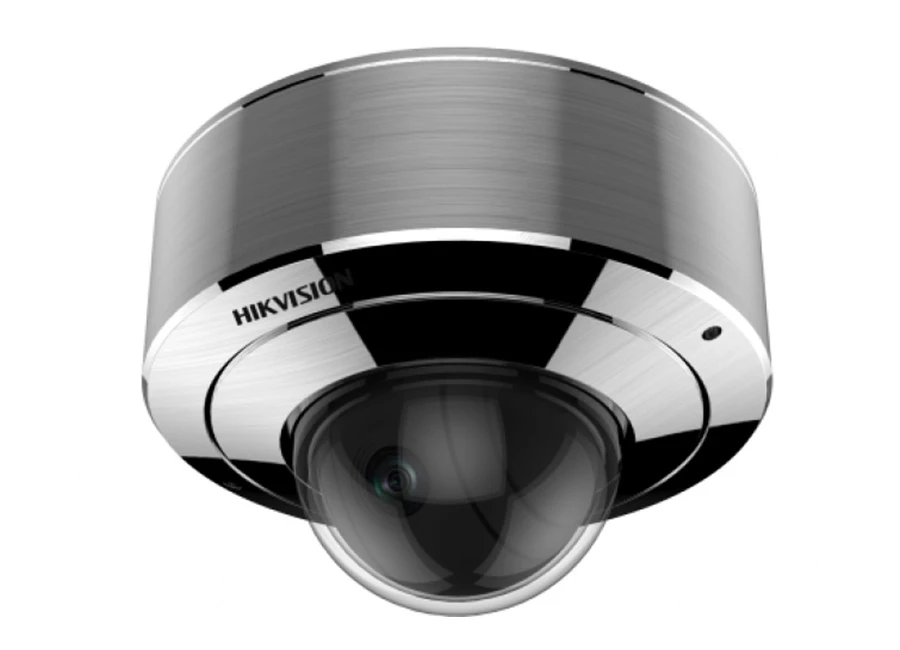

Hikvision DS 2XE6126FWD HS IP Dome Kamera

Özellikler

1/2.8” Progressive Scan CMOS
1920 × 1080 resolution
Stainless steel 316L
120dB WDR
3D DNR
IP68
Support H.265+/H.265/H.264+/H.264
Support 128G on-board storage

Teknik Özellikler

Camera
Image Sensor	1/2.8” CMOS progressive scan CMOS
İşaret Sistemi	PAL/NTSC
Minimum Aydınlatma	Color 0.003lux @(F1.2,AGC ON); 0.005Lux @ (F1.6, AGC ON)
Minimum Aydınlatma	B/W 0.001lux @(F1.2,AGC ON); 0.017Lux @ (F1.6, AGC ON)
Slow shutter	1 s to 1/100,000 s
Objektif Hızı	Support
Lens	2 mm, 2.8 mm, 4 mm, 6 mm, optional
Lens Mount	M12
Ayarlanan Aralık	2mm pan 0° to 340°, tilt 0° to 60°
Ayarlanan Aralık	2.8 mm, 4 mm, 6 mm 0° to 340°, tilt 0° to 75°
Day& Night	Electronic
Wide Dynamic Range	120 dB
Compression Standard
Video Compression	H.265+/H.265/H.264+/H.264/MJPEG
H.264 Türü	Baseline Profile/Main Profile/High Profile
Video bit rate	32Kbps~16Mbps
Audio Compression	G.711/G.722.1/G.726/MP2L2/PCM
Ses Bit Hızı	64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2)
Çift Akış	Yes
Üçüncü Akım	Yes
Max. Image Resolution	1920 x 1080
Ana Akış	50Hz 25fps (704 × 576, 640 × 480, 352 × 288, 320 × 240)
Ana Akış	60Hz 30fps (704 × 480, 640 × 480, 352 × 240, 320 × 240)
Üçüncül Akış	50Hz 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288, 320 × 240)
Üçüncül Akış	60Hz 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240, 320 × 240)
Görüntü İyileştirme	BLC, 3D DNR, HLC, defog, EIS
Image Settings	Rotate mode, saturation, brightness, contrast, sharpness, AGC, and white balance are adjustable by client software or web browser
Bölgesel Kırpma	Yes
BLC	Support
HLC	Support
Akıllı Buğu Giderme	Support
EIS	Support
ROI	Support 4 fixed regions for each stream, and dynamic face tracking
3D DNR	Support
Resim Yerleşimi	Logo picture cab be overlaid on video with 128 × 128 24bit bmp format
Gündüz / Gece Anahtarı	Day/Night/Auto/Schedule/Triggered by Alarm In
Network
Network Storage	microSD/SDHC/SDXC card (128G), local storage and NAS (NFS,SMB/CIFS), ANR
Alarm Trigger	Motion detection, video tampering alarm, network disconnected, IP address conflict, illegal login, HDD full, HDD error
Protokoller	TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, 802.1X, QoS, IPv6, UDP, Bonjour
General Function	One-key reset, anti-flicker, five streams and up to 5 custom streams, heartbeat, password protection, privacy mask, watermark, IP address filter
System Compatibility	ONVIF (Profile S, Profile G), ISAPI
Intelligent
Behavior analysis	Line crossing detection, intrusion detection, region entrance detection, region exit detection, unattended baggage detection, object removal detection
Interface
Audio	1 input, 1 output
Alarm	1 alarm input, 1 alarm output (supports max. 24 VDC, 1 A or 110 VAC, 500mA)
Alarm Girişi	1
Alarm Çıkışı	1
Video Output	1Vp-p Composite Output (75 Ω, BNC)
Dahili Depolama	Built-in Micro SD/SDHC/SDXC slot, up to 128 GB
Reset Butonu	Yes
Audio
Çevre Gürültü Filtreleme	Support
Audio I/O	support
Audio Sampling Rate	8 kHz/16 kHz/32 kHz/44.1 kHZ/48 kHz
Smart Feature-set
Behavior Analysis	Line crossing detection, Intrusion detection, Region entrance, Region exiting, Unattended baggage, Object removal
Sınır İhlali	Cross a pre-defined virtual line
Saldırı Algılama	Enter and loiter in a pre-defined virtual region
Bölge Giriş	Enter a pre-defined virtual region from the outside place
Bölge Çıkma	Exit from a pre-defined virtual region
Bırakılan Eşya	Objects left over in the pre-defined region such as the baggage, purse, dangerous materials
Alınan Eşya	Objects removed from the pre-defined region, such as the exhibits on display.
Tanıma	Face Detection
General
Power Supply	12 V DC ± 20%, PoE (802.3af, class 3)
GÜç Tüketimi	12 VDC, 0.8 A, max. 10 W
GÜç Tüketimi	PoE (802.3af, 36V to 57V), 0.3 A to 0.2 A, max. 12.5 W
Weather Proof	IP68
Boyutlar	Camera Ø138 × 123.4 mm (Ø5.43" × 4.86")
Boyutlar	Package 251 × 215 × 189 mm (9.88" × 8.46" × 7.44")
Ağırlık	Camera Approx. 2.5 kg (5.51 lb.)
Ağırlık	With package approx. 3.46 kg (7.63 lb.)
