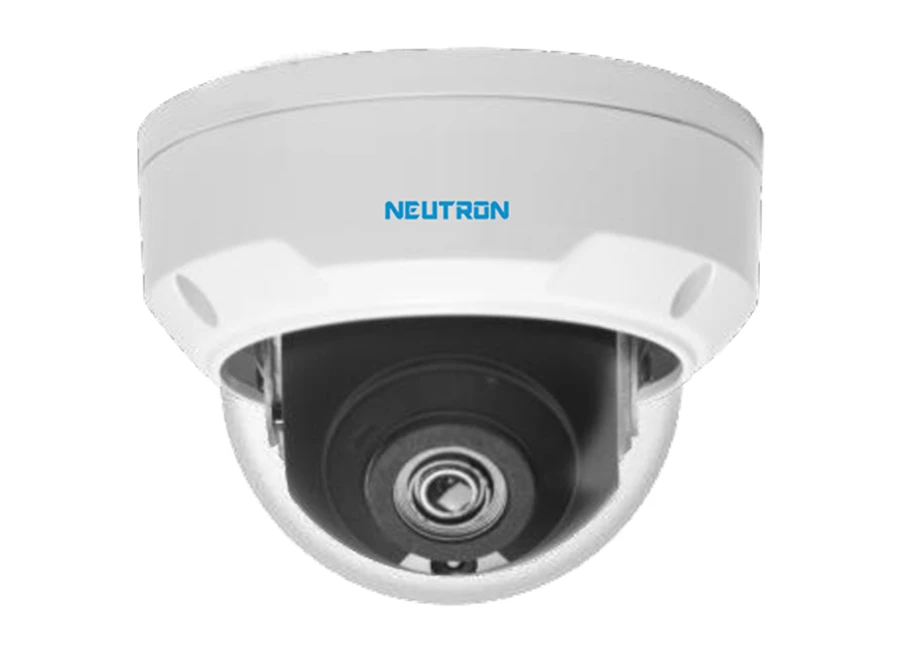

Neutron IPC322LR3 VSPF28 C IP Dome Kamera
Teknik Özellikler
Model | IPC322LR3-VSPF28-C | IPC322LR3-VSPF40-C | |||
Camera | |||||
Sensor | 1/2.7", progressive scan , 2 megapixel, CMOS | ||||
Lens | 2.8 mm@ F1.8 | 4.0 mm@ F1.8 | |||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) |
2.8mm | 42 | 16.8 | 8.4 | 4.2 | |
4mm | 60 | 24 | 12 | 6 | |
Angle of View (H) | 112.7° | 86.5° | |||
Angle of View (V) | 60.1° | 44.1° | |||
Angle of View (O) | 146.5° | 106.4° | |||
Adjustmentangle | Pan: 0°~360° | Tilt:0°~75° | |||
Shutter | Auto/Manual, 1/6~1/100000 s | ||||
Minimum Illumination | Colour: 0.01 Lux (F1.8, AGC ON) | ||||
0 Lux with IR | |||||
Day/Night | IR-cut filter with auto switch (ICR) | ||||
Digital noise reduction | 2D/3D DNR | ||||
S/N | >52dB | ||||
IR Range | Up to 30m (98 ft) IR range | ||||
Defog | Digital Defog | ||||
WDR | DWDR | ||||
Video | |||||
Video Compression | Ultra 265,H.265, H.264,MJPEG | ||||
H.264 code profile | Baseline profile, Main Profile, High Profile | ||||
Frame Rate | Main Stream: 2MP (1920×1080): Max. 25 fps; | ||||
Sub Stream:720P (1280×720): Max. 25 fps; | |||||
Third Stream:D1(720×576) : Max. 25fps | |||||
HLC | Supported | ||||
BLC | Supported | ||||
OSD | Up to 8 OSDs | ||||
Privacy Mask | Up to 4 areas | ||||
ROI | Supported | ||||
Motion Detection | Up to 4 areas | ||||
General Function | Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication | ||||
Network | |||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, TLS | ||||
Compatible Integration | ONVIF(Profile S), API | ||||
Interface | |||||
Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
General | |||||
Power | 12 V DC±25%, PoE (IEEE802.3 af) | ||||
Power consumption: Max 5.0W | |||||
Dimensions (Ø x H) | Φ108.5 x 81 mm (Ø4.28” x 3.2”) | ||||
Weight | 0.3 kg (0.66 lb) | ||||
Working Environment | -30°C ~ +60°C (-22°F ~ 140°F), Humidity:10%~95% RH(non-condensing) | ||||
Ingress Protection | IP66 | ||||
Vandal Resistant | IK10 |
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 2MP (1080P)
