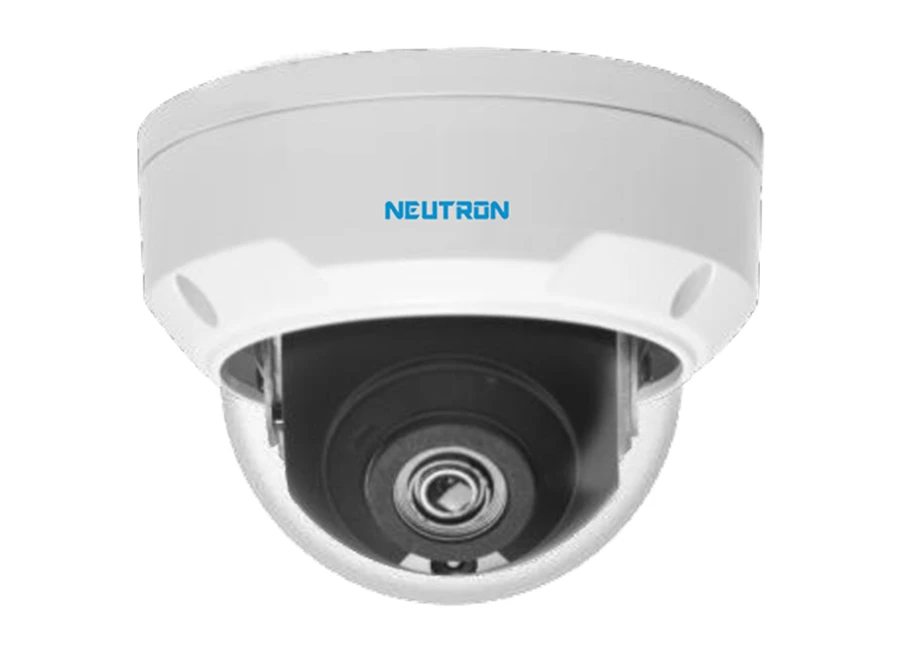

Neutron IPC322LR3 VSPF40 C IP Dome Kamera

Teknik Özellikler

Model IPC322LR3-VSPF28-C IPC322LR3-VSPF40-C
Camera
Sensor 1/2.7", progressive scan , 2 megapixel, CMOS
Lens 2.8 mm@ F1.8 4.0 mm@ F1.8
DORI Distance Lens Detect(m) Observe(m) Recognize(m) Identify(m)
2.8mm 42 16.8 8.4 4.2
4mm 60 24 12 6
Angle of View (H) 112.7° 86.5°
Angle of View (V) 60.1° 44.1°
Angle of View (O) 146.5° 106.4°
Adjustmentangle Pan: 0°~360° Tilt:0°~75°
Shutter Auto/Manual, 1/6~1/100000 s
Minimum Illumination Colour: 0.01 Lux (F1.8, AGC ON)
0 Lux with IR
Day/Night IR-cut filter with auto switch (ICR)
Digital noise reduction 2D/3D DNR
S/N >52dB
IR Range Up to 30m (98 ft) IR range
Defog Digital Defog
WDR DWDR
Video
Video Compression Ultra 265,H.265, H.264,MJPEG
H.264 code profile Baseline profile, Main Profile, High Profile
Frame Rate Main Stream: 2MP (1920×1080): Max. 25 fps;
Sub Stream:720P (1280×720): Max. 25 fps;
Third Stream:D1(720×576) : Max. 25fps
HLC Supported
BLC Supported
OSD Up to 8 OSDs
Privacy Mask Up to 4 areas
ROI Supported
Motion Detection Up to 4 areas
General Function Watermark, IP Address Filtering, Tampering Alarm, Access Policy, ARP Protection, RTSP Authentication, User Authentication
Network
Protocols IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL, TLS
Compatible Integration ONVIF(Profile S), API
Interface
Network 1 RJ45 10M/100M Base-TX Ethernet
General
Power 12 V DC±25%, PoE (IEEE802.3 af)
Power consumption: Max 5.0W
Dimensions (Ø x H) Φ108.5 x 81 mm (Ø4.28” x 3.2”)
Weight 0.3 kg (0.66 lb)
Working Environment -30°C ~ +60°C (-22°F ~ 140°F), Humidity:10%~95% RH(non-condensing)
Ingress Protection IP66
Vandal Resistant IK10



Teknik Kısa

Çözünürlük : 2MP (1080P)
Depolama : Var
Ses : Var
