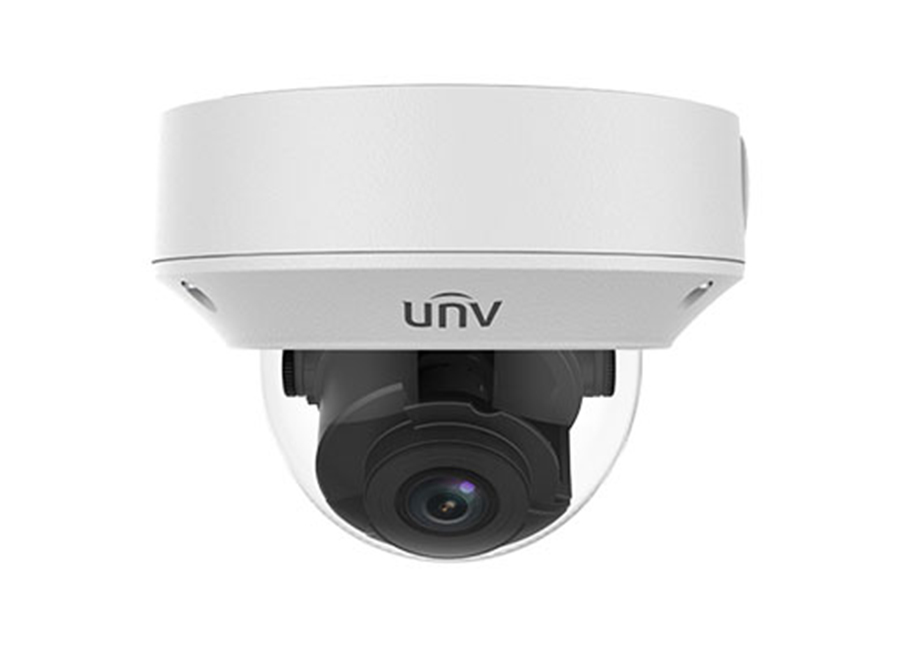

Uniview IPC3235LR3 VSP D IR IP Dome Kamera
Özellikler
Teknik Özellikler
IPC3235LR3-VSP-D | IPC3235LR3-VSPZ28-D | |||||||
Camera | ||||||||
Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | |||||||
Lens | 2.8~12 mm, manual zoom lens | 2.8~12 mm, motorized zoom lens | ||||||
DORI Distance | Lens | Detect(m) | Observe(m) | Recognize(m) | Identify(m) | |||
2.8mm | 63 | 25.2 | 12.6 | 6.3 | ||||
12mm | 270 | 108 | 23.3 | 27.1 | ||||
Angle of View (H) | 105.3°~25.4° | |||||||
Angle of View (V) | 69.5°~18.4° | |||||||
Angle of View (O) | 136.9°~31.2° | |||||||
Adjustment angle | Pan: 0°~360° | Tilt: 0°~80° | Rotate: 0°~360° | |||||
Shutter | Auto/Manual, 1~1/100000 s | |||||||
Minimum Illumination | Colour: 0.005Lux (F1.6 AGC ON) | |||||||
0 Lux with IR | ||||||||
Day/Night | IR-cut filter with auto switch (ICR) | |||||||
Digital noise reduction | 2D/3D DNR | |||||||
IR Range | Up to 30m (98 ft) IR range | |||||||
Defog | Digital Defog | |||||||
WDR | DWDR | |||||||
Video | ||||||||
Video Compression | Ultra 265,H.265, H.264,MJPEG | |||||||
H.264 code profile | Baseline profile, Main Profile | |||||||
Frame Rate | Main Stream:5MP (2592*1944): Max. 20fps; | |||||||
Sub Stream: 720P (1280*720): Max. 20 fps; | ||||||||
HLC | Supported | |||||||
BLC | Supported | |||||||
OSD | Up to 4 OSDs | |||||||
Privacy Mask | Up to 4 areas | |||||||
ROI | Up to 2 areas | |||||||
Motion Detection | Up to 4 areas | |||||||
Network | ||||||||
Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | |||||||
Compatible Integration | ONVIF(Profile S, Profile G, Profile T), API | |||||||
Interface | ||||||||
Network | 1 RJ45 10M/100M Base-TX Ethernet | |||||||
Edge Storage | MicroSD, up to 256GB | |||||||
General | ||||||||
Power | DC12V±25%, PoE (IEEE802.3 af) | |||||||
Power consumption: Max 8.7W | ||||||||
Dimensions (Ø x H) | Φ148 x 111.3 mm (Ø5.8” x 4.4”) | |||||||
Weight | 0.92kg (2.0lb) | |||||||
Working Environment | -40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~ 95% RH(non-condensing) | |||||||
Ingress Protection | IP67 | |||||||
Vandal Resistant | IK10 | |||||||
Reset Button | Supported |
Uniview IPC3235LR3 VSP D IR IP Dome Kamera Pdf Dosyası210.7 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 5MP
Irled : Var
