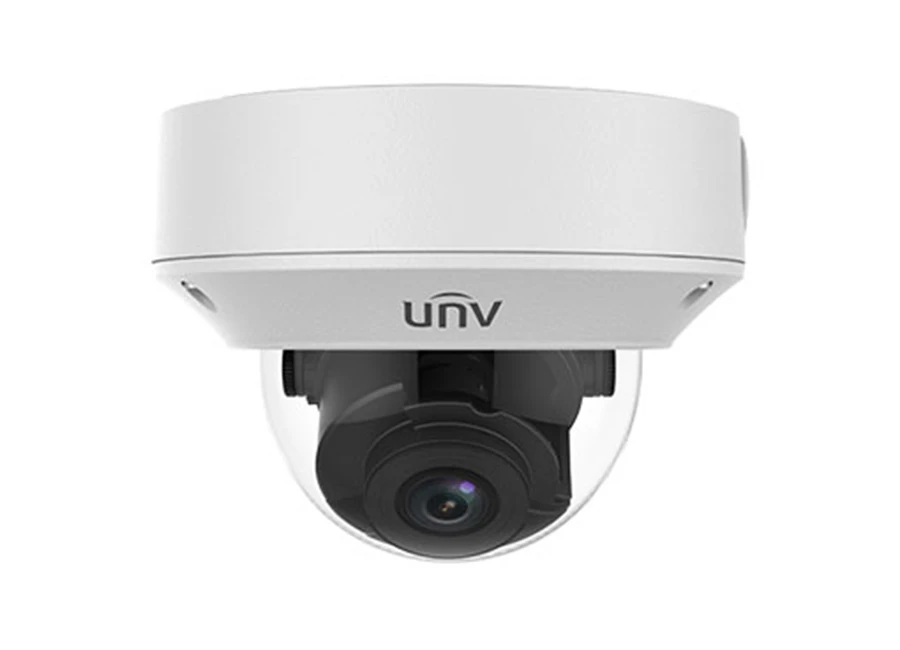

Uniview IPC3235LR3 VSPZ28 D IR IP Dome Kamera

Name: Uniview IPC3235LR3 VSPZ28 D IR IP Dome Kamera
Brand: Uniview

Depolama : Var

Çözünürlük : 5MP

Irled : Var

IPC3235LR3-VSP-D				IPC3235LR3-VSPZ28-D
Camera
Sensor	1/2.7", 5.0 megapixel, progressive scan, CMOS
Lens	2.8~12 mm, manual zoom lens			2.8~12 mm, motorized zoom lens
DORI Distance	Lens	Detect(m)	Observe(m)	Recognize(m)		Identify(m)
	2.8mm	63	25.2	12.6		6.3
	12mm	270	108	23.2		27.1
Angle of View (H)	105.3°~25.4°
Angle of View (V)	69.5°~18.4°
Angle of View (O)	136.9°~31.2°
Adjustment angle	Pan: 0°~360°		Tilt: 0°~80°		Rotate: 0°~360°
Shutter	Auto/Manual, 1~1/100000 s
Minimum Illumination	Colour: 0.005Lux (F1.6 AGC ON)
	0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Digital noise reduction	2D/3D DNR
IR Range	Up to 30m (98 ft) IR range
Defog	Digital Defog
WDR	DWDR
Video
Video Compression	Ultra 265,H.265, H.264,MJPEG
H.264 code profile	Baseline profile, Main Profile
Frame Rate	Main Stream:5MP (2592*1944): Max. 20fps;
	Sub Stream: 720P (1280*720): Max. 20 fps;
HLC	Supported
BLC	Supported
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 2 areas
Motion Detection	Up to 4 areas
Network
Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL
Compatible Integration	ONVIF(Profile S, Profile G, Profile T), API
Interface
Network	1 RJ45 10M/100M Base-TX Ethernet
Edge Storage	MicroSD, up to 256GB
General
Power	DC12V±25%, PoE (IEEE802.3 af)
	Power consumption: Max 8.7W
Dimensions (Ø x H)	Φ148 x 111.3 mm (Ø5.8” x 4.4”)
Weight	0.92kg (2.0lb)
Working Environment	-40°C ~ +60°C (-40°F ~ 140°F), Humidity:10%~ 95% RH(non-condensing)
Ingress Protection	IP67
Vandal Resistant	IK10
Reset Button	Supported
