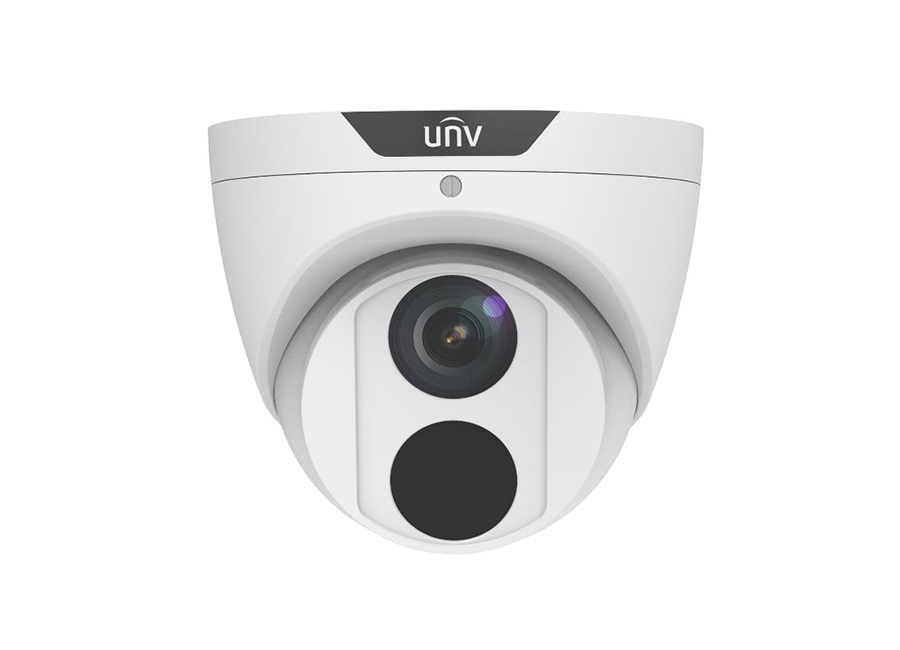

Uniview IPC3615SR3-DPF40-FM IP Dome Kamera
Özellikler
Optics
- Day/night functionality
- Up to 120dB WDR (Wide Dynamic Range)
- Smart IR, up to 30m (98ft) IR distance
- Ultra 265, H.264, MJPEG
- Triple streams
Network
- ONVIF Conformance
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- Micro SD, up to 128 GB
- Built-in Mic
- 2KV surge protection designed for network interface
- IP67
- 3-Axis
Teknik Özellikler
| IPC3615SR3-DPF28-FM | IPC3615SR3-DPF40-FM | ||||
| Camera | |||||
| Sensor | 1/2.7", 5.0 megapixel, progressive scan, CMOS | ||||
| Lens | 2.8mm@F2.0 | 4.0mm@F2.0 | |||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 63.0 | 25.2 | 12.6 | 6.Mar | |
| 4.0 | 90.0 | 36.0 | 18.0 | 9.0 | |
| Angle of view(H) | 105.6° | 80.0° | |||
| Angle of View (V) | 69.9° | 52.2° | |||
| Angle of View (O) | 137.3° | 98.4° | |||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | ||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Minimum Illumination | Colour: 0.01Lux (F2.0, AGC ON) | ||||
| 0Lux with IR on | |||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| S/N | >56dB | ||||
| IR Range | Up to 30m (98ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile | ||||
| Frame Rate | Main Stream: 5MP (2592*1944), Max 25fps; 4MP (2560*1440), Max 30fps; 3MP (2304*1296), Max 30fps; 1080P (1920*1080), Max 30fps; | ||||
| Sub Stream: 720P (1280*720), Max 25fps; | |||||
| Third Stream: 4CIF (704*576), Max 25fps | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 4 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Vertical/Horizontal/180° | ||||
| Dewarping | NA | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Audio | |||||
| Audio Compression | G.711 | ||||
| Suppression | Supported | ||||
| Sampling Rate | 8KHZ | ||||
| Storage | |||||
| Edge Storage | Micro SD, up to 128 GB | ||||
| Network Storage | ANR | ||||
| Smart | |||||
| Behavior Detection | Intrusion, Human Body Detection, Motion detection, Tampering alarm, Audio Detection | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | ||||
| Compatible Integration | ONVIF (Profile S, Profile T), API | ||||
| Client | EZStation | ||||
| EZView | |||||
| EZLive | |||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||
| Interface | |||||
| Network | 1 RJ45 10M/100M Base-TX Ethernet | ||||
| Built-in Mic | Supported | ||||
| Certifications | |||||
| Certifications | CE: EN 60950-1 | ||||
| UL: UL60950-1 | |||||
| FCC: FCC Part 15 | |||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 5.5W | |||||
| Dimensions (Ø x H) | Φ110.5 x 94.1mm (Ø4.4” x 3.7”) | ||||
| Net Weight | 0.44kg (0.97lb) | ||||
| Material | Metal | ||||
| Operating Conditions | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 2KV | ||||
| Ingress Protection | IP67 | ||||
Uniview IPC3615SR3-DPF40-FM IP Dome Kamera Pdf Dosyası433.9 KB
Teknik Kısa
Depolama : Var
Ses : Var
Çözünürlük : 5MP
