Açıklama

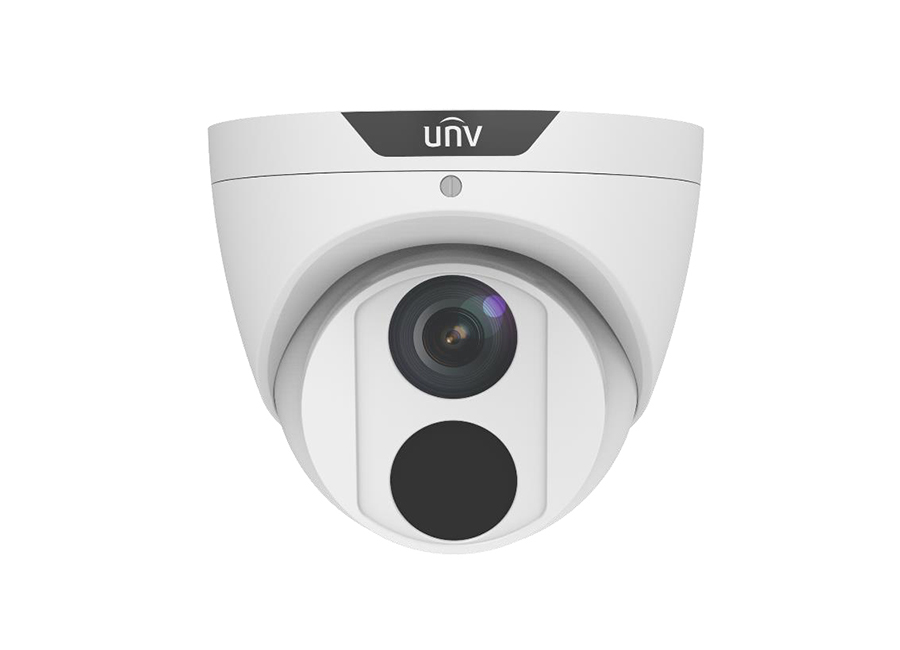

Uniview IPC3616LR3-DPF28M IP Dome Kamera
Özellikler
Optics
- Day/night functionality
- Smart IR, up to 30m (98ft) IR distance
- 2D/3D DNR (Digital Noise Reduction)
Network
- ONVIF Conformance
- Wide temperature range: -30°C ~ 60°C (-22°F ~ 140°F)
- Wide voltage range of ±25%
- IP67
- 3-Axis
Teknik Özellikler
| IPC3616LR3-DPF28M | |||||
| Camera | |||||
| Sensor | 1/2.9", 6.0 megapixel, progressive scan, CMOS | ||||
| Lens | 2.8mm@F2.0 | ||||
| DORI Distance | Lens (mm) | Detect (m) | Observe (m) | Recognize (m) | Identify (m) |
| 2.8 | 84 | 33.6 | 16.8 | 8.4 | |
| Angle of view (H) | 97.0° | ||||
| Angle of View (V) | 57.5° | ||||
| Angle of View (O) | 126.1° | ||||
| Shutter | Auto/Manual, 1 ~ 1/100000s | ||||
| Adjustment angle | Pan: 0° ~ 360° | Tilt: 0° ~ 80° | Rotate: 0° ~ 360° | ||
| Min. Illumination | Colour: 0.02 Lux (F2.0, AGC ON) | ||||
| 0Lux with IR | |||||
| Digital noise reduction | 2D/3D DNR | ||||
| Day/Night | IR-cut filter with auto switch (ICR) | ||||
| S/N | >52dB | ||||
| IR Range | Up to 30m (98 ft) IR range | ||||
| Wavelength | 850nm | ||||
| IR On/Off Control | Auto/Manual | ||||
| Defog | Digital Defog | ||||
| WDR | 120dB | ||||
| Video | |||||
| Video Compression | Ultra 265, H.265, H.264, MJPEG | ||||
| H.264 code profile | Baseline profile, Main Profile | ||||
| Frame Rate | Main Stream:6MP(3072*2048) : Max. 20 fps; | ||||
| Sub Stream:720P (1280*720) : Max. 20 fps; | |||||
| Third Stream:4CIF (704*576) : Max. 20 fps | |||||
| Video Bit Rate | 128 Kbps~16 Mbps | ||||
| OSD | Up to 4 OSDs | ||||
| Privacy Mask | Up to 4 areas | ||||
| ROI | Up to 2 areas | ||||
| Motion Detection | Up to 4 areas | ||||
| Image | |||||
| White Balance | Auto/Outdoor/Fine Tune/Sodium Lamp/Locked/Auto2 | ||||
| Digital noise reduction | 2D/3D DNR | ||||
| Smart IR | Support | ||||
| Flip | Normal/Vertical/Horizontal/180° | ||||
| Dewarping | NA | ||||
| HLC | Supported | ||||
| BLC | Supported | ||||
| Smart | |||||
| Behavior Detection | Intrusion, Human Body Detection, Motion detection, Tampering alarm | ||||
| Network | |||||
| Protocols | IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL | ||||
| Compatible Integration | ONVIF (Profile S, Profile T),API | ||||
| Client | EZStation | ||||
| EZView | |||||
| EZLive | |||||
| Web Browser | Plug-in required live view: IE9+, Chrome 41 and below, Firefox 52 and below | ||||
| Plug-in free live view: Chorme 57.0+, Firefox 58.0+, Edge 16+, Safari 11+ | |||||
| Interface | |||||
| Network | 10/100M Base-TX Ethernet | ||||
| Certifications | |||||
| Certifications | CE: EN 60950-1 | ||||
| UL: UL60950-1 | |||||
| FCC: FCC Part 15 | |||||
| General | |||||
| Power | DC 12V±25%, PoE (IEEE 802.3af) | ||||
| Power consumption: Max 6W | |||||
| Dimensions (Ø x H) | Φ110.5 x 94.1mm (Ø4.4” x 3.7”) | ||||
| Net Weight | 0.43kg (0.95lb) | ||||
| Material | Metal | ||||
| Working Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Strorage Environment | -30°C ~ 60°C (-22°F ~ 140°F), Humidity: ≤95% RH (non-condensing) | ||||
| Surge Protection | 2KV | ||||
| Ingress Protection | IP67 | ||||
Uniview IPC3616LR3-DPF28M IP Dome Kamera Pdf Dosyası754.13 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 6MP
Irled : Var
