Açıklama

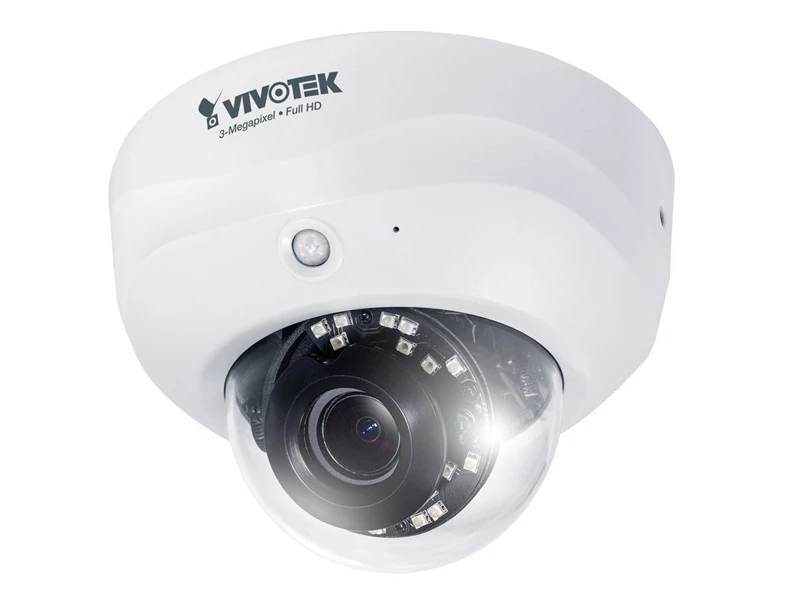

Vivotek FD8173 H IP HD Dome Kamera
Özellikler
- 3-Megapixel CMOS Sensor
- 20 fps @ 2048x1536
- Motorized, P-iris Lens
- Smart IR Technology to Avoid Overexposure
- Built-in IR Illuminators, Effective up to 20 Meters
- PIR,Smart Stream
- 3D Noise Reduction
- Built-in MicroSD/SDHC/SDXC Card Slot for On-board Storage
- WDR Pro for Unparalleled Visibility in Extremely Bright and Dark Environments
- Smart Focus System for Remote and Precise Focus Adjustment
- Two-way Audio
Teknik Özellikler
System Information | |
CPU | Multimedia SoC (System-on-Chip) |
Flash | 128 MB |
RAM | 256 MB |
Camera Features | |
Image sensor | 1/3" Progressive CMOS |
Maximum Resolution | 2048x1536 (3MP) |
Lens Type | Vari-focal, remote focus |
Focal Length | f = 2.8 ~ 12 mm |
Aperture | F1.8 ~ F2.85 |
Auto-iris | P-iris |
Field of View | 29.7° ~ 82.6° (horizontal) |
22.4° ~ 61.9° (vertical) | |
37.6° ~ 108.7° (diagonal) | |
Shutter Time | 1/5 sec. to 1/32,000 sec. |
WDR Technology | WDR Pro |
Day & Night | Removable IR-cut filter for day & night function |
Smart IR Technology to Avoid Overexposure | |
Minimum Illumination | 0.33 Lux @ F1.8 (Color) |
0.001 Lux @ F1.8 (B/W) | |
Pan / Tilt / Zoom | ePTZ |
48x digital zoom ( 4x on IE plug-in, 12x built-in ) | |
IR Illuminators | Built-in IR illuminators, effective up to 20 meters |
IR LED*4 with Smart IR Technology | |
On-board Storage | MicroSD/SDHC/SDXC card slot |
Video | |
Compression | H.264, MJPEG |
Maximum Frame Rate | H.264: |
20 fps at 2048x1536 | |
30 fps at 1920x1080 | |
MJPEG: | |
20 fps at 2048x1536 | |
30 fps at 1920x1080 | |
Maximum Streams | 3 simultaneous streams |
S/N Ratio | Above 62 dB |
Dynamic Range | 100 dB |
Video Streaming | Adjustable resolution, quality and bit rate |
Image Settings | Adjustable image size, quality and bit rate |
Time stamp, text overlay, flip & mirror | |
Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks, Scheduled profile settings | |
3D Noise Reduction, Smart Stream | |
Seamless recording, new text on video, SD recording 1HR | |
Audio | |
Audio Capability | Audio input/output (full duplex) |
Compression | AAC, G.711, G.726 |
Interface | Internal microphone input |
External audio output | |
Network | |
Users | Live viewing for up to 10 clients |
Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X |
Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) |
* It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. | |
ONVIF | Supported, specification available at www.onvif.org |
Intelligent Video | |
Video Motion Detection | Triple-window video motion detection |
Alarm and Event | |
Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection |
Alarm Events | Event notification using HTTP, SMTP, FTP and NAS server |
File upload via HTTP, SMTP, FTP and NAS server | |
General | |
Smart Focus System | Remote focus |
Connectors | RJ-45 for Network / PoE connection |
Audio input | |
Audio output | |
AC 24V power input | |
DC 12V power input | |
Digital iutput*1 | |
Digital output*1 | |
LED Indicator | System power and status indicator |
Power input | DC 12V |
AC 24V | |
IEEE 802.3af PoE Class 3 | |
Power consumption | DC 12V: Max.11 W |
AC 24V: Max.12.5 W | |
PoE: Max. 11 W | |
Dimensions | Ø: 157 mm x 109 mm |
Weight | Net: 758 g |
Safety Certifications | CE, C-Tick, FCC Class B, LVD, UL, VCCI |
Operating Temperature | Starting Temperature: -10°C ~ 50°C (14°F ~ 122°F) |
Working Temperature: -20°C ~ 50°C (-4°F ~ 122°F) | |
Warranty | 36 Months |
System Requirements | |
Operating System | Microsoft Windows 7 / Vista / XP / 2000 |
Browser | Mozilla Firefox 7~10 ( Streaming only ) |
Internet Explorer 7 / 8 / 9 / 10 | |
Other Players | VLC: 1.1.11 or above |
QuickTime: 7 or above |
Video
Teknik Kısa
Çözünürlük : 3MP
Irled : Var
Depolama : Var
