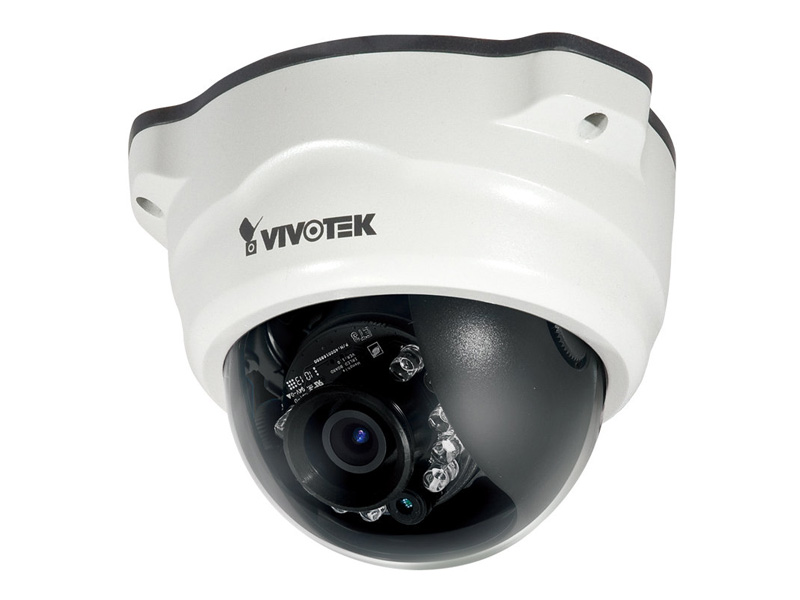

Vivotek FD8367 TV IP HD Dome Kamera
Özellikler
- 2-Megapixel CMOS Sensor
- 30 fps @ 1920x1080
- 2.8 ~ 12 mm Vari-focal, P-iris Lens
- Built-in IR Illuminators, Effective up to 30 Meters
- Real-time H.264, and MJPEG Compression
- Two-way Audio
- WDR Enhancement for Unparalleled Visibility in Extremely Bright and Dark Environments
- Weather-proof IP66-rated and Vandal-proof IK10-rated Housing
- 3D Noise Reduction
- Smart IR Technology to Avoid Overexposure
- Support Installation with AM-712 Conduit Box
- SNV (Supreme Night Visibility)
Teknik Özellikler
System Information | |
CPU | Multimedia SoC (System-on-Chip) |
Flash | 128 MB |
RAM | 256 MB |
Camera Features | |
Image sensor | 1/2.8" Progressive CMOS |
Maximum Resolution | 1920x1080 (2MP) |
Lens Type | Vari-focal, Remote Focus |
Focal Length | f = 2.8 ~ 12 mm |
Aperture | F1.8 ~ F2.85 |
Auto-iris | P-Iris |
Field of View | 45° ~ 101° (Horizontal) |
25° ~ 55° (Vertical) | |
52° ~ 125° (Diagonal) | |
Shutter Time | 1/5 sec. to 1/32,000 sec. |
WDR Technology | WDR Enhanced |
Day & Night | Removable IR-cut filter for day & night function |
Minimum Illumination | 0.06 Lux @ F1.8 (Color) |
0.001 Lux @ F1.8 (B/W) | |
Pan / Tilt / Zoom | ePTZ |
48x digital zoom (4x on IE plug-in, 12x built-in) | |
IR Illuminators | Built-in IR illuminators, effective up to 30 meters |
with Smart IR | |
IR LED*6 | |
On-board Storage | MicroSD/SDHC/SDXC card slot |
Video | |
Compression | H.264 & MJPEG |
Maximum Frame Rate | 30 fps @ 1920x1080 in both compression modes |
Maximum Streams | 3 simultaneous streams |
S/N Ratio | Above 62 dB |
Dynamic Range | 60.37 dB |
Video Streaming | Adjustable resolution, quality and bitrate |
Image Settings | Adjustable image size, quality and bit rate, Time stamp, text overlay, flip & mirror, Configurable brightness, contrast, saturation, sharpness, white balance, exposure control, gain, backlight compensation, privacy masks,Scheduled profile settings, Seamless recording, smart stream, 3D Noise Reduction |
Audio | |
Audio Capability | Audio input /output (full duplex) |
Compression | G.711 |
G.726 | |
Interface | External microphone input |
External line output | |
Network | |
Users | Live viewing for up to 10 clients |
Protocols | IPv4, IPv6, TCP/IP, HTTP, HTTPS, UPnP, RTSP/RTP/RTCP, IGMP, SMTP, FTP, DHCP, NTP, DNS, DDNS, PPPoE, CoS, QoS, SNMP, 802.1X, UDP, ICMP, ARP, SSL, TLS |
Interface | 10Base-T / 100BaseTX Ethernet (RJ-45) |
* It is highly recommended to use standard Cat. 5e & Cat. 6 cables which are compliant with the 3P/ETL standard. | |
ONVIF | Supported, specification available at www.onvif.org |
Intelligent Video | |
Video Motion Detection | Triple-window video motion detection |
Alarm and Event | |
Alarm Triggers | Video motion detection, manual trigger, digital input, periodical trigger, system boot, recording notification, camera tampering detection, audio detection |
Alarm Events | Event notification using digital output, HTTP, SMTP, FTP and NAS server, SD Card |
File upload via HTTP, SMTP, FTP, NAS server and SD card | |
General | |
Smart Focus System | Remote Focus |
Connectors | RJ-45 cable connector for Network/PoE connection |
Audio input | |
Audio output | |
DC 12V power input | |
Digital input*1 | |
Digital output*1 | |
LED Indicator | System power and status indicator |
Power input | DC 12V |
IEEE 802.3af PoE Class 3 | |
Power consumption | Max: 11 W (DC12V) |
Max: 11.6 W (PoE) | |
Dimensions | Ø: 141 x 103 mm |
Weight | Net: 836 g |
Casing | Weather-proof IP66-rated housing |
Vandal-proof IK10-rated metal housing | |
Safety Certifications | CE, LVD, FCC Class A, VCCI, C-Tick, UL |
Operating Temperature | Starting Temperature: -10°C ~ 50°C (14°F~ 122°F) |
Working Temperature: -20°C ~ 50°C (-4°F~ 122°F) | |
Warranty | 36 Months |
System Requirements | |
Operating System | Microsoft Windows 7/8/Vista/XP/2000 |
Browser | Mozilla Firefox 7~10 ( Streaming only ) |
Internet Explorer 7.x ,8.x, 9.x, 10.x | |
Other Players | VLC: 1.1.11 or above |
QuickTime: 7 or above |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Ses : Var
Irled : Var
