Açıklama

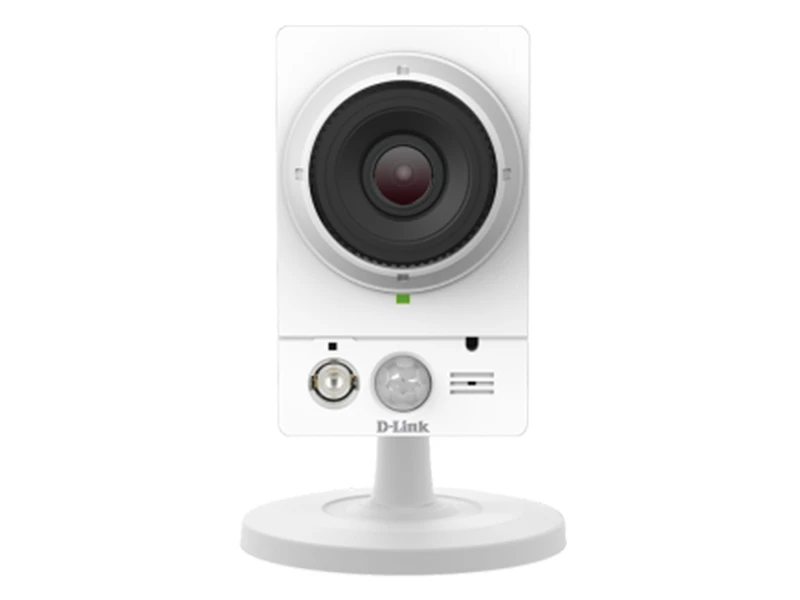

D-Link DCS 2230L A1A IP HD Küp Kamera
Teknik Özellikler
| Camera Hardware Profile |
| 1/2.7” 2 Megapixel CMOS sensor |
| 5 meter IR illumination distance |
| Minimum illumination: 0 lux with IR LED on |
| Built-in Infrared-Cut Removable (ICR) Filter module |
| Built-in PIR sensor (5 meter) |
| Built-in microphone and speaker |
| 10x digital zoom |
| Focal length: 2.8 mm |
| Aperture: F1.8 |
| Angle of view: |
| (H) 103° |
| (V) 55° |
| (D) 118° |
| Image Features |
| Configurable image size, quality, frame rate, and bit rate* |
| Time stamp and text overlays |
| Configurable motion detection windows |
| Configurable privacy mask zones |
| Configurable shutter speed, brightness, saturation, contrast, and sharpness |
| Video Compression |
| Simultaneous H.264/MPEG-4/MJPEG format compression |
| H.264/MPEG-4 multicast streaming |
| JPEG for still images |
| Video Resolution |
| 16:9 - Up to 30 fps at 1920 x 1080, 1280 x 720, 800 x 450, 640 x 360, 480 x 270 |
| 4:3 - Up to 30 fps at 1440 x 1080, 1280 x 960, 1024 x 768, 800 x 600, 600 x 480, 320 x 240 |
| Audio Support |
| MPEG-4 AAC audio encoding, bit rate: 16 kbps to 128 kbps |
| G.711 audio encoding, bit rate: 8 kbps to 64 kbps |
| External Device Interfaces |
| 10/100 BASE-TX Fast Ethernet port |
| DI/DO socket for connection to external devices |
| 802.11n wireless antenna2 |
| microSD/SDHC card slot |
| Network Protocols |
| IPv6 / IPv4 |
| TCP/IP |
| UDP |
| ICMP |
| DHCP client |
| NTP client (D-Link) |
| DNS client |
| DDNS client (D-Link) |
| SMTP client |
| FTP client |
| Bonjour |
| HTTP / HTTPS |
| Samba client |
| PPPoE |
| UPnP port forwarding |
| RTP / RTSP/ RTCP |
| IP filtering |
| QoS |
| CoS |
| Multicast |
| IGMP |
| ONVIF compliant |
| Security |
| Administrator and user group protection |
| Password authentication |
| HTTP and RTSP digest encryption |
| System Requirements for Web Interface |
| Operating System: Microsoft Windows 8/7 (32/64-bit)/Vista (32/64-bit)/XP, Mac OS X 10.5 or above |
| Browser: Internet Explorer 7, Firefox 12, Safari 7 or above |
| Event Management |
| Motion detection, Periodic, Digital Input, System Boot, Network Lost, PIR |
| Event notification and saving/uploading of snapshots/video clips via e-mail, FTP, network storage, or SD card |
| Supports multiple SMTP and FTP servers |
| Multiple event notifications |
| Multiple recording methods for easy backup |
| Remote Management |
| Take snapshots/video clips and save to local hard drive or NAS via web browser |
| Configuration interface accessible via web browser |
| Mobile Support |
| mydlink mobile app for iOS and Android mobile devices |
| D-ViewCam™ System Requirements |
| Operating System: Microsoft Windows 8/7 (32/64-bit)/Vista (32/64-bit)/XP |
| Protocol: Standard TCP/IP |
| D-ViewCam™ Software Functions |
| Remote management/control of up to 32 cameras |
| Viewing of up to 32 cameras on one screen |
| Supports all management functions provided in web interface |
| Scheduled motion triggered, or manual recording options |
Fiziksel Özellikler
| Weight |
| 75 g |
| Power |
| Input: 100 to 240 V AC, 50/60 Hz |
| Output: 5 V DC, 1.2 A, 50/60 Hz |
| Power Consumption |
| Max. 4 W |
| Temperature |
| Operating: 0° to 40°C |
| Storage: -20° to 70°C |
| Humidity |
| Operating: 20% to 80% non-condensing |
| Storage: 5% to 95% non-condensing |
| Certifications |
| CE |
| CE LVD |
| FCC |
| C-Tick |
| Dimensions |
| 95 x 58 x 38.7 mm |
Teknik Kısa
Irled : Var
Depolama : Var
Çözünürlük : 2MP (1080P)
