Açıklama

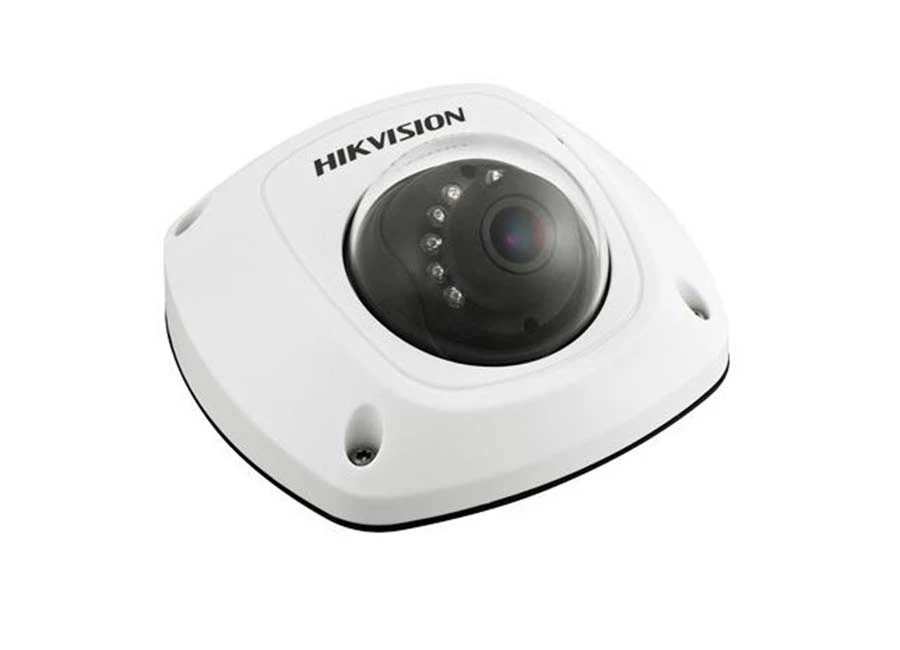

Hikvision DS 2CD6510D I Mobil IP Kamera
Özellikler
- 1/3" progressive scan CMOS
- Up to 1.3MP resolution
- Digital WDR
- ROI codec
- Up to 128GB storage
- Audio/Alarm IO
Teknik Özellikler
Camera | |
Image Sensor | 1/3" CMOS |
Minimum Aydınlatma | 0.01Lux @(F1.2,AGC ON) , 0 Lux with IR ;0.028Lux @(F2.0,AGC ON) ,0 Lux with IR |
Objektif Hızı | 1/25 s to 1/100,000 s |
Lens | 4mm (2.8mm, 6mm optional) @F2.0 Angle of view: 73.1° |
Lens Mount | M12 |
Ayarlanan Aralık | Pan: -30°-30°, Tilt: 0~80°, Rotation: 0-360° |
Day& Night | IR cut filter with auto switch |
Wide Dynamic Range | Digital WDR |
Dijtal Gürültü Azaltma | 3D DNR |
Compression Standard | |
Video Compression | H.264/MJPEG |
H.264 Türü | Base Line Profile/Main Profile/High Profile |
Video bit rate | 32Kbps~8Mbps |
Audio Compression | G.711/G.722.1/G.726/MP2L2 |
Ses Bit Hızı | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-128Kbps(MP2L2) |
Çift Akış | Yes |
Image | |
Max. Image Resolution | 1280x960 |
Çerçeve Hızı | 50Hz: 25fps (1280 × 960), 25fps (1280 × 720),60Hz: 30fps (1280 × 960), 30fps (1280 × 720) |
Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
BLC | Yes, zone configurable |
ROI | support |
3D DNR | support |
Network | |
Network Storage | Micro SD/SDHC/SDXC card with ANR (up to 64G), NAS (Support NFS, SMB/CIFS) |
Alarm Trigger | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
Protokoller | |
General Function | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
System Compatibility | ONVIF, PSIA, CGI, ISAPI |
Interface | |
Audio | Internal Microphone and Speaker |
Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
Dahili Depolama | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
General | |
Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
Humidity 95% or less (non-condensing) | |
Power Supply | 12 V DC ± 10%, PoE (802.3at) |
GÜç Tüketimi | 5W MAX |
Impact Protection | IK08 Protection Level |
Weather Proof | IP66 |
IR Range | 10 meters |
Boyutlar | 99.3×96.7×52.8 |
Ağırlık | 600 g (1.32 lbs) |
Hikvision DS 2CD6510D I Mobil IP Kamera Pdf Dosyası694.95 KB
Hikvision DS 2CD6510D I Mobil IP Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası4.07 MB
Teknik Kısa
Çözünürlük : 1.3MP
Depolama : Var
