Açıklama

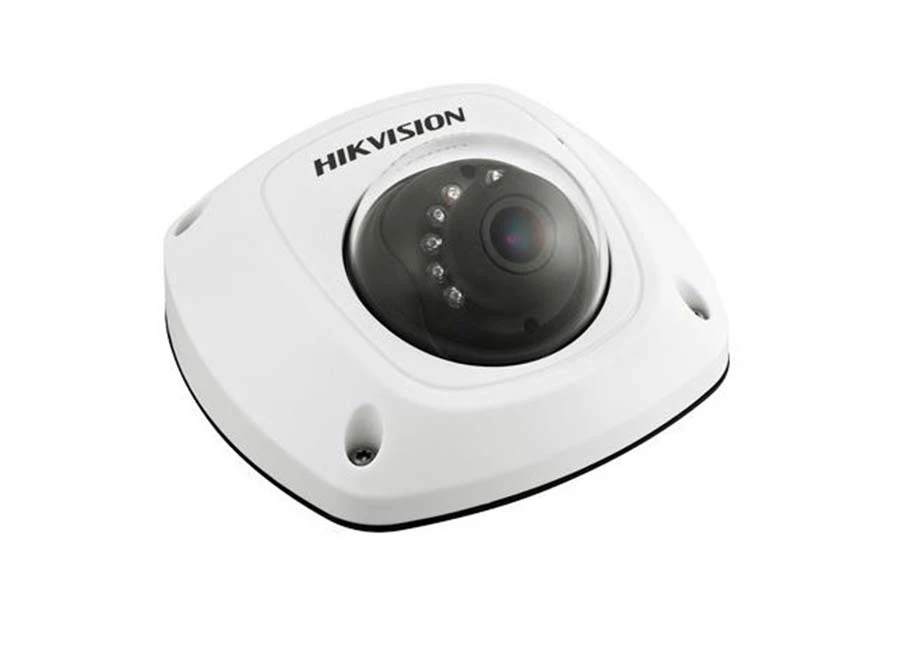

Hikvision DS 2CD6520D I Mobil IP Kamera
Özellikler
- Up to 1920×1080 @ 30 fpsfor real-time output
- ROI and SVC are adoptedwith high compression ratio, flexible disposure and low bitrate
- Code smoothness setting fordifferent requirements of image quality and fluency
- Day/Night parametersindependent configuration
- PoE power supply issupportable
- Small and nice withbuilt-in microphone
- 3-axis adjustment forconvenient installation
- 3D DNR and DWDR
- Support two streams andcellphone surveillance
- Support analog output
- Built-in mic
- Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB
- Vandal proof: IK08,IP66
Teknik Özellikler
Camera | |
Image Sensor | 1/3" Progressive Scan CMOS |
Minimum Aydınlatma | 0.01 Lux @(F1.2,AGC ON), 0 Lux with IR |
Objektif Hızı | 1/3s~1/100,000s |
Lens | 4mm, horizontal view angle 63°(2.8mm/6mm/8mm optional) |
Lens Mount | M12 |
Ayarlanan Aralık | H: -30°~30°, V: 0°~80°, R: 0°~360° |
Day& Night | IR cut filter with auto switch |
Wide Dynamic Range | Digital WDR |
Dijtal Gürültü Azaltma | 3D DNR |
Compression Standard | |
Video Compression | H.264/MJPEG |
H.264 Türü | Base Line Profile/Main Profile |
Video bit rate | 32Kbps~8Mbps |
Audio Compression | G.711/G.722.1/G.726/MP2L2 |
Ses Bit Hızı | 64Kbps(G.711)/16Kbps(G.722.1)/32-128Kbps(MP2L2) |
Çift Akış | Yes |
Image | |
Max. Image Resolution | 1920 x 1080 |
Çerçeve Hızı | 50Hz: 25fps (1920*1080,1280 × 960,1280 × 720) |
60Hz: 30fps (1920*1080,1280 × 960,1280 × 720) | |
Image Settings | Rotate mode, Saturation, Brightness, Contrast adjustable by client software or web browser |
BLC | Yes, zone configurable |
ROI | support |
3D DNR | support |
Network | |
Network Storage | Micro SD/SDHC/SDXC card with ANR (up to 64G), NAS (Support NFS, SMB/CIFS) |
Alarm Trigger | Line Crossing, Intrusion Detection, Motion detection, Dynamic analysis, Tampering alarm, Network disconnect , IP address conflict, Storage exception |
Protokoller | TCP/IP,ICMP,HTTP,HTTPS,FTP,DHCP,DNS,DDNS,RTP,RTSP,RTCP, |
PPPoE,NTP,UPnP,SMTP,SNMP,IGMP,802.1X,QoS,IPv6,Bonjour | |
General Function | User Authentication, Watermark, IP address filtering, anonymous access, flickerless, heartbeat, video mask |
System Compatibility | ONVIF, PSIA, CGI, ISAPI |
Interface | |
Audio | Internal Microphone and Speaker |
Communication Interface | 1 RJ45 10M / 100M Ethernet interface |
Dahili Depolama | Built-in Micro SD/SDHC/SDXC card slot, up to 64 GB |
General | |
Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
Humidity 95% or less (non-condensing) | |
Power Supply | 12 V DC ± 10%, PoE (802.3at) |
GÜç Tüketimi | 5.5W MAX |
Impact Protection | IK08 Protection Level |
Weather Proof | IP66 |
IR Range | 10 meters |
Boyutlar | 99.3x96.7x52.8mm (3.91” × 3.81” × 2.08”) |
Ağırlık | 600g (1.32lb) |
Hikvision DS 2CD6520D I Mobil IP Kamera Pdf Dosyası744.36 KB
Hikvision DS 2CD6520D I Mobil IP Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası4.07 MB
Teknik Kısa
Çözünürlük : 2MP (1080P)
