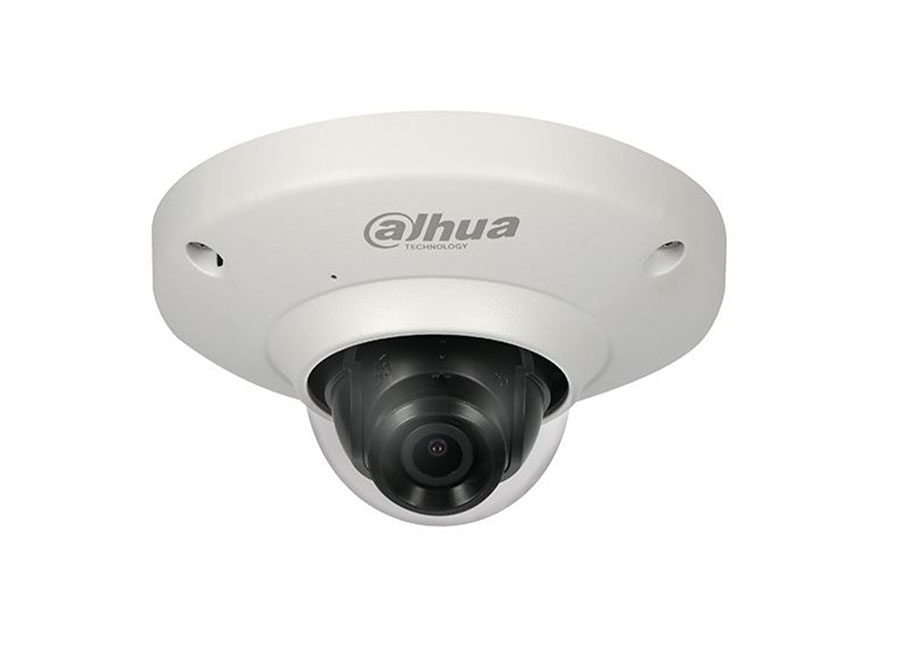

Dahua IPC EB5531P Panoramik IP Kamera
Özellikler
Teknik Özellikler
Camera | |||||
Image Sensor | 1/2.7” 5Megapixel progressive scan CMOS | ||||
Effective Pixels | 2592(H)x1944(V) | ||||
RAM/ROM | 512MB/32MB | ||||
Scanning System | Progressive | ||||
Electronic Shutter Speed | Auto/Manual, 1/3(4)~1/100000s | ||||
Minimum Illumination | 0.02Lux/F1.6( Color,1/3s,30IRE) | ||||
0.2Lux/1.6( Color,1/30s,30IRE) | |||||
0.05Lux/F1.6( B/W,1/3s,30IRE) | |||||
0.5Lux/1.6( B/W,1/30s,30IRE) | |||||
S/N Ratio | More than 50dB | ||||
IR Distance | N/A | ||||
IR On/Off Control | N/A | ||||
IR LEDs | N/A | ||||
Lens | |||||
Lens Type | Fixed | ||||
Mount Type | Board-in | ||||
Focal Length | 1.4mm | ||||
Max. Aperture | F1.6 | ||||
Angle of View | H: 180°, V: 180° | ||||
Optical Zoom | N/A | ||||
Focus Control | Fixed | ||||
Close Focus Distance | N/A | ||||
DORI Distance | Lens | Detect | Observe | Recognize | Identify |
1.4mm | 28m(92ft) | 11m(36ft) | 6m(20ft) | 3m(10ft) | |
Pan/Tilt/Rotation | |||||
Pan/Tilt/Rotation Range | Pan:0˚~355˚; Tilt:0˚~75˚; Rotation:0˚~360˚ | ||||
Intelligence | |||||
Advanced Intelligent Functions | Tripwire ,Intrusion,Heat map | ||||
Video | |||||
Compression | H.265+/H.265/H.264+/H.264 | ||||
Streaming Capability | 3 Streams | ||||
Resolution | 5M(2592×1944)/3M(2048×1536)/UXGA(1600×1200)/1.3M(1280×960)/, D1(704×576/704×480)/CIF(352×288/352×240) | ||||
Frame Rate | Main Stream:5M(1~25fps) | ||||
Sub Stream: D1(1~25/30fps) | |||||
Bit Rate Control | CBR/VBR | ||||
Bit Rate | H.264: 24~10240Kbps | ||||
H.265: 14~9984Kbps | |||||
Day/Night | Electronic | ||||
BLC Mode | BLC / HLC / WDR | ||||
White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | ||||
Gain Control | Auto/Manual | ||||
Noise Reduction | 3D DNR | ||||
Motion Detetion | Off / On (4 Zone, Rectangle) | ||||
Region of Interest | Off / On (4 Zone) | ||||
Electronic Image Stabilization (EIS) | N/A | ||||
Smart IR | N/A | ||||
Defog | N/A | ||||
Digital Zoom | 16x | ||||
Flip | N/A | ||||
Mirror | Off / On | ||||
Privacy Masking | Off / On (4 Area, Rectangle) | ||||
Audio | |||||
Compression | G.711a/ G.711Mu/ AAC/ G.726 | ||||
Network | |||||
Ethernet | RJ-45 (10/100Base-T) | ||||
Protocol | HTTP; HTTPs; TCP; ARP; RTSP; RTP; UDP; SMTP; | ||||
FTP; DHCP; DNS; DDNS; PPPOE; IPv4/v6; QoS; | |||||
UPnP;NTP; Bonjour; 802.1x; Multicast; ICMP; | |||||
IGMP; SNMP | |||||
Interoperability | ONVIF, PSIA, CGI | ||||
Streaming Method | Unicast / Multicast | ||||
Max. User Access | 10 Users /20 Users | ||||
Edge Storage | NAS | ||||
Local PC for instant recording | |||||
Mirco SD card 128GB | |||||
Web Viewer | IE, Chrome, Firefox, Safari | ||||
Management Software | Smart PSS, DSS, Easy4ip | ||||
Smart Phone | IOS, Android | ||||
Certifications | |||||
Certifications | CE (EN 60950:2000) | ||||
UL:UL60950-1 | |||||
FCC: FCC Part 15 Subpart B | |||||
Interface | |||||
Video Interface | N/A | ||||
Audio Interface | Built-in Mic | ||||
RS485 | N/A | ||||
Alarm | N/A | ||||
Electrical | |||||
Power Supply | DC12V, PoE (802.3af)(Class 0) | ||||
Power Consumption | <3.4W | ||||
Environmental | |||||
Operating Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | ||||
Strorage Conditions | -30° C ~ +60° C (-22° F ~ +140° F) / Less than 95% RH | ||||
Ingress Protection | IP67 | ||||
Vandal Resistance | IK08 | ||||
Construction | |||||
Casing | Metal | ||||
Dimensions | Φ110mm×56mm (4.33”×2.2”) | ||||
Net Weight | 0.38Kg (0.84lb) | ||||
Gross Weight | 0.44Kg (0.97lb) |
Dahua IPC EB5531P Panoramik IP Kamera Pdf Dosyası422.88 KB
Teknik Kısa
Çözünürlük : 5MP
Ses : Var
