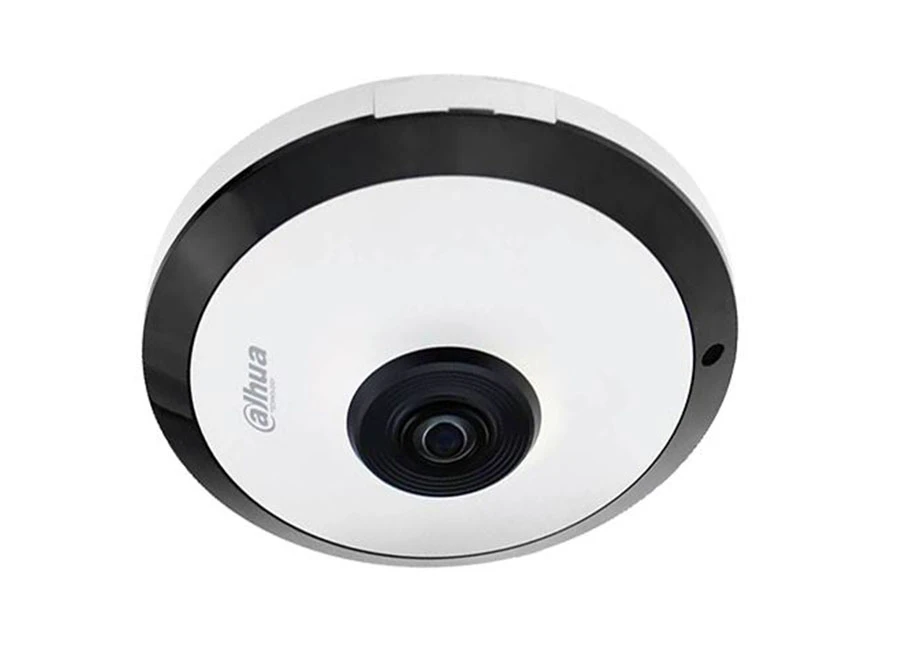

Dahua IPC EW4431P ASW Panoramik IP Kamera
Özellikler
- Product features
- 1/3” 4Megapixel progressive scan CMOS
- 25fps @ 4M (2688×1520)
- H.265&H.264 triple-stream encoding
- Max. IR LEDs Length 15m
- WDR (120dB), Day/Night (ICR), 3DNR, AWB, AGC, BLC
- Support Intrusion, Tripwire, Heat Map
- 1/1 Alarm in/out, 1/1 audio in/out, built-in MIC
- Micro SD memory 128G, POE, WIFI
- 180° Angel View, more details
Teknik Özellikler
Camera | |
Image Sensor | 1/3”4Megapixel progressive scan CMOS |
Effective Pixels | 2688×1520 |
Electronic Shutter Speed | Auto/Manual, 1s~1/100000s |
Minimum Illumination | 0.01Lux( Color,1/3s,30IRE) |
0.1Lux( Color,1/30s,30IRE) | |
0Lux(IR on ) | |
IR Distance | Distance up to 15m |
IR LEDs | 3 |
IR On/Off Control | Auto |
Noise Reduction | 3D DNR |
WDR | 120dB |
S/N Ratio | More than 56dB |
Day/Night | Auto(ICR) / Color / B/W |
Gain Control | Auto/Manual |
White Balance Control | Auto/Manual |
BLC | Support |
HLC | Support |
Lens | |
Lens Type | Fixed,1.6mm |
Mount Type | M12 |
Aperture | F1.4 |
Aperture Control | Auto |
Angle of View | H:18 :182°; V:118:118 :118° |
Audio | |
Input | 1 channel In; Built-in MIC |
Output | 1 channel out |
Compression | G.711a;G.711Mu;G.726;ACC |
Sampling | Up to 64Kbps |
Video | |
Compression | H.264;H.264H;MJPEG;H.265 |
Bit Rate | 14Kbps~40Mbps |
Frame Rate | Main Stream(1280×720@25fps), |
Sub Stream(704×576@25fps), | |
Third Stream(1280×720@25fps) | |
Alarm | |
Input | 1 channel in |
Output | 1 channel out |
Alarm Trigger | No disk ;Disk Full; Disk Error; Network disconnect; IP address Conflict; Motion Detection; Video Tampering; |
Functions | |
OSD | Time; Channel; Location; Pictures |
Flip | N/A |
Mirror | N/A |
Storage | Micro SD card 128GB NAS iSCSI FTP |
Max. User Access | 20 Users |
Default | One key reset |
WiFi | Support |
IVS | Support |
Face Detection | N/A |
Privacy Masking | Max 4 Areas |
WIFI | |
WIFI Standard | IEEE802.11b,802.11g,802.11n |
Security | 64/128-bit WEP,WPA/WPA2,WPA-PSK/WPA2-PSK,WPS |
Transmission Rate | 11b:11Mbps 11g:54Mbps 11n: Up to 150Mbps |
Distance | 80M(No Disturbing, No Tampering) |
Network & Access | |
Ethernet | RJ-45 (10/100Base-T) |
Protocol | HTTP;TCP;ARP;RTSP;RTP;UDP;RTCP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;SNMP;QoS;UPnP;NTP |
Access Standard | ONVIF;GB/T28181;CGI;PSIA |
General | |
Power Supply | DC12V/POE |
Power consumption | Max 10w |
Working temperature | -10℃~+50℃ |
Working humidity | ≤95% |
Ingress Protection | N/A |
Casing | Metal + Plastic |
Size | Φ126*37.7 |
Weight | 500g (With Package:525g) |
Dahua IPC EW4431P ASW Panoramik IP Kamera Pdf Dosyası307.7 KB
Teknik Kısa
Çözünürlük : 4MP
Depolama : Var
Ses : Var
