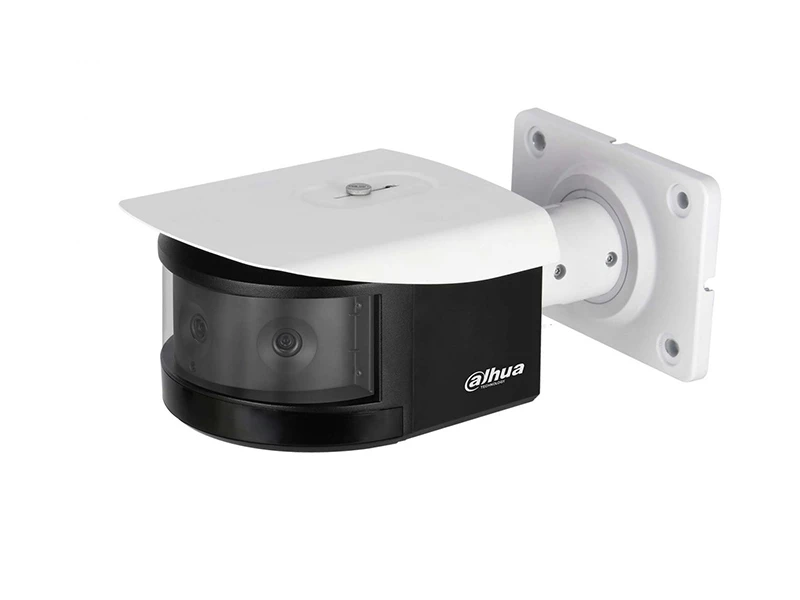

Dahua IPC PFW8800 A180 Panoramik IP Bullet Kamera

Özellikler

Four 1/2.8” 2Megapixel progressive scan STARVIS™ CMOS
H.265/H.264 triple-stream encoding
Max 25fps@4096x1800
Support 180-degree panoramic view
Day/Night(ICR), 3DNR, AWB, AGC, BLC
Smart detection
Intelligent Function
Max. IR LEDs length 30m
Micro SD memory, IP67, IK10,PoE+

Teknik Özellikler

Camera
Image Sensor	Four 1/2.8” 2Megapixel progressive scan CMOS
Effective Pixels	4096(H)x1800(V)
RAM/ROM	1024MB/128MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/100000s
Minimum Illumination	0.007Lux/F2.0( Color,1/3s,30IRE) 0.05Lux/F2.0( Color,1/30s,30IRE) 0Lux/F2.0(IR on)
S/N Ratio	More than 50dB
IR Distance	Distance up to 30m(98ft)
IR On/Off Control	Auto/ Manual
IR LEDs	8
Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	3.0mm
Max. Aperture	F2.0
Angle of View	H: 180˚, V:80˚
Optical Zoom	N/A
Focus Control	Fixed
Close Focus Distance	N/A
DORI Distance	Detect	Observe	Recognize	Identify
	41m(135ft)	16m(53ft)	8m(26ft)	4m(13ft)
Pan/Tilt/Rotation
Pan/Tilt/Rotation Range	Pan:0˚~360˚; Tilt:0˚~90˚; Rotation:0˚~360˚
Intelligence
IVS	Tripwire, Intrusion, Object Abandoned/Missing
Advanced Intelligent Functions	Heat Map, E-PTZ
Video
Compression	H.265+/H.265/H.264+/H.264
Streaming Capability	3 Streams
Resolution	4096×1800/3840×1680/2880×1264/ /1920x832/1280x560/1024X452
Frame Rate	Main Stream: 4096x1800 (1~25fps) Sub Stream: 1024X452 (1 ~ 25/30fps) Third Stream: 1920x832 (1 ~ 25/30fps)
Bit Rate Control	CBR/VBR
Bit Rate	H.265: 9Kbps~ 9472Kbps H.264: 24Kbps~ 15616Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / DWDR
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detetion	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image Stabilization(EIS)	N/A
Smart IR	Support
Defog	N/A
Digital Zoom	16x
Flip	N/A
Mirror	N/A
Privacy Masking	Off / On (4 Area, Rectangle)
Audio
Compression	G.711a/G.711Mu/AAC/ G.726
Network
Ethernet	RJ-45 (100/1000Base-T)
Protocol	HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP ;NTP;Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP
Interoperability	ONVIF, PSIA, CGI
Streaming Method	Unicast / Multicast
Max. User Access	10 Users/20 Users
Edge Storage	NAS Local PC for instant recording Mirco SD card 128GB
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, Easy4ip
Smart Phone	IOS, Android
Certifications
Certifications	CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B
Interface
Video Interface	1 Port(For adjustment only)
Audio Interface	1/1 channel In/Out
RS485	N/A
Alarm	2 channel In: 5mA 5VDC 2 channel Out: 1A 30VDC / 0.5A 50VAC
Electrical
Power Supply	AC24V, PoE+ (802.3at)(Class 4)
Power Consumption	<25.5w td="">
