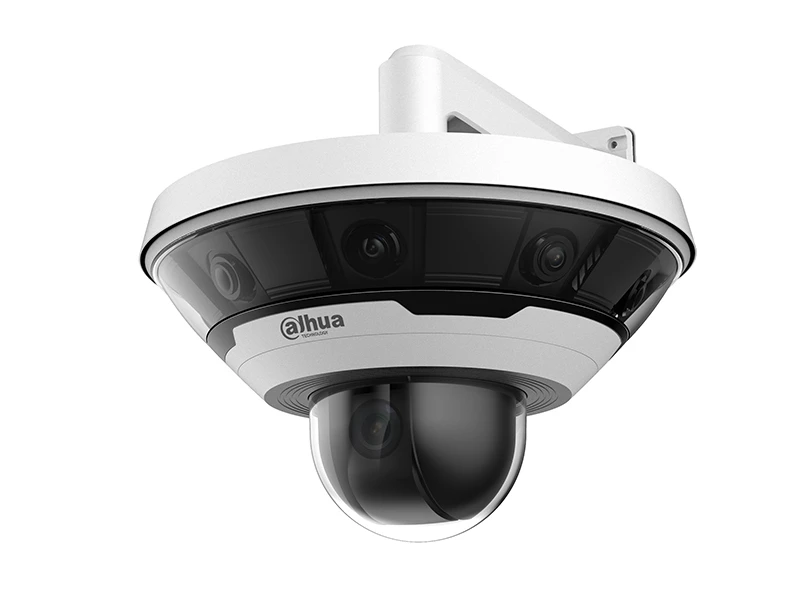

Dahua PSD8802 A180 Panoramik IP PTZ Kamera
Özellikler
- Panoramic: Four 1/1.9” 2Megapixel progressive scan CMOS
- PTZ: One 1/1.9” 2Megapixel progressive scan CMOS
- H.265/H.264 triple-stream encoding
- 25fps@4096x1800+50/60fps@1080P
- Support 180-degree panoramic view
- Day/Night(ICR), 3DNR, AWB, AGC, BLC
- Smart tracking
- Intelligent Function
- Micro SD memory, IP67, IK10
Teknik Özellikler
| Panoramic Camera | |||||
| Image Sensor | Four 1/1.9” 2Megapixel CMOS | ||||
| Effective Pixels | 4096(H)x1800(V) | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual, 1/3~1/100000s | ||||
| Minimum Illumination | 0.005Lux/F2.2( Color,1/3s,30IRE) 0.03Lux/F2.2( Color,1/30s,30IRE) 0.003Lux/F2.2( B/W,1/3s,30IRE) 0.02Lux/F2.2( B/W,1/30s,30IRE) | ||||
| S/N Ratio | More than 50dB | ||||
| Panoramic Lens | |||||
| Lens Type | Fixed | ||||
| Mount Type | Board-in | ||||
| Focal Length | 5mm | ||||
| Max. Aperture | F2.2 | ||||
| Angle of View | H: 180˚, V:80˚ | ||||
| DORI Distance | Detect | Observe | Recognize | ||
| 53m(178ft) | 21m(69ft) | 10m(33ft) | |||
| PTZ Camera | |||||
| Image Sensor | 1/1.9” 2Megapixel CMOS | ||||
| Effective Pixels | 1920(H)x1080(V) | ||||
| RAM/ROM | 1024MB/128MB | ||||
| Scanning System | Progressive | ||||
| Electronic Shutter Speed | Auto/Manual, 1~1/30000s | ||||
| Minimum Illumination | 0.002Lux/F1.5( Color,1/3s,30IRE) 0.01Lux/F1.5( Color,1/30s,30IRE) 0.001Lux/F1.5( B/W,1/3s,30IRE) 0.008Lux/F1.5( B/W,1/30s,30IRE) | ||||
| S/N Ratio | More than 50dB | ||||
| PTZ Lens | |||||
| Lens Type | Motorized /Auto Iris(HALL) | ||||
| Mount Type | Board-in | ||||
| Focal Length | 5.5mm~206mm | ||||
| Max. Aperture | F1.5 | ||||
| Angle of View | H: 65.8˚~2.0˚ | ||||
| Optical Zoom | 37x | ||||
| Focus Control | Motorized | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| W | 70m(229ft) | 28m(92ft) | 14m(46ft) | 7m(23ft) | |
| T | 2080m | 832m | 416m | 208m | |
| (6824ft) | (2730ft) | (1365ft) | (682ft) | ||
| PTZ | |||||
| Pan/Tilt Range | Pan: 0° ~ 360° endless; Tilt: -20° ~90°,auto flip 180 | ||||
| Manual Control Speed | Pan: 0.1° ~240° /s; Tilt: 0.1° ~120° /s | ||||
| Presets | 300 | ||||
| PTZ Mode | 5 Pattern, 8 Tour, Auto Pan ,Auto Scan | ||||
| Speed Setup | Human-oriented focal Length/ speed adaptation | ||||
| Power up Action | Auto restore to previousPTZ and lensstatus after power failure | ||||
| Idle Motion | |||||
| Protocol | DH-SD, Pelco-P/D(Auto recognition) | ||||
| Intelligence | |||||
| Auto Tracking | Support | ||||
| IVS | Tripwire, Intrusion | ||||
| Video | |||||
| Compression | H.265/H.264 | ||||
| Streaming Capability | 3 Streams | ||||
| Resolution | Panoramic Camera | 4096×1800/3840×1680/2880×1264//1920x832/
1280x560/1024X452 | |||
| PTZ Camera | 1080P(1920x1080)/1.3M(1280x960)/720P(1280x720)/
D1(704×576/704x480)/CIF(352×288/352x240) | ||||
| Frame Rate | Panoramic Camera | Main Stream:4096x1800(1~25fps) | |||
Sub Stream:1024X452(1 ~ 25/30fps) | |||||
Third Stream:1920x832(1 ~ 25/30fps) | |||||
| PTZ Camera | Main Stream:1080P(1~50/60fps) | ||||
Sub Stream: D1(1~50/60fps) | |||||
Third Stream:1080P(1~50/60fps) | |||||
| Bit Rate Control | CBR/VBR | ||||
| Bit Rate | Panoramic Camera | H.265: 14Kbps~8192Kbps | |||
H.264: 24Kbps~8192Kbps | |||||
| PTZ Camera | H.265: 4Kbps~8192Kbps | ||||
H.264: 8Kbps~7168Kbps | |||||
| Day/Night | Auto(ICR) / Color / B/W | ||||
| BLC Mode | BLC / HLC / WDR | ||||
| White Balance | Auto/Natural/Street Lamp/Outdoor/Manual | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 3D DNR | ||||
| Motion Detetion | Off / On (4 Zone, Rectangle) | ||||
| Region of Interest | Off / On (4 Zone) | ||||
| Electronic Image Stabilization(EIS) | N/A | ||||
| Smart IR | N/A | ||||
| Defog | Support(For PTZ Camera only) | ||||
| Digital Zoom | 16x | ||||
| Flip | N/A | ||||
| Mirror | N/A | ||||
| Privacy Masking | Panoramic Camera | Off / On (4 Area, Rectangle) | |||
| PTZ Camera | Off / On (24 Area, Rectangle) | ||||
| Audio | |||||
| Compression | G.711a/G.711Mu/AAC/ G.726 | ||||
| Network | |||||
| Ethernet | RJ-45 (100/1000Base-T) | ||||
| Protocol | |||||
| Interoperability | ONVIF, PSIA, CGI | ||||
| Streaming Method | Unicast / Multicast | ||||
| Max. User Access | 10 Users/20 Users | ||||
| Edge Storage | NAS Local PC for instant recording Mirco SD card 128GB | ||||
| Web Viewer | IE, Chrome, Firefox, Safari | ||||
| Management Software | Smart PSS, DSS, Easy4ip | ||||
| Smart Phone | IOS, Android | ||||
| Certifications | |||||
| Certifications | CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B | ||||
| Interface | |||||
| Video Interface | 1 Port(For PTZ Camera only) | ||||
| Audio Interface | 2/1 channel In/Out | ||||
| RS485 | 1 Port | ||||
| Alarm | 7 channel In: 5mA 5VDC | ||||
| 2 channel Out: 1A 30VDC /0.5A 50VAC | |||||
| Electrical | |||||
| Power Supply | DC36V | ||||
| Power Consumption | <120w td=""> | ||||
| Environmental | |||||
| Operating Conditions | -40° C ~ +60° C(-40° F ~ +140° F) /Less than 95% RH | ||||
| Strorage Conditions | -40° C ~ +60° C(-40° F ~ +140° F) /Less than 95% RH | ||||
| Ingress Protection | IP67 | ||||
| Vandal Resistance | IK10 | ||||
| Construction | |||||
| Casing | Metal | ||||
| Dimensions | Φ449.5mm×342.5mm(Φ17.7”×13.48”) | ||||
| Net Weight | 16kg(35.27lb) | ||||
| Gross Weight | 25kg(55lb) | ||||
Teknik Kısa
Ses : Var
Depolama : Var
Çözünürlük : 2MP (1080P)
