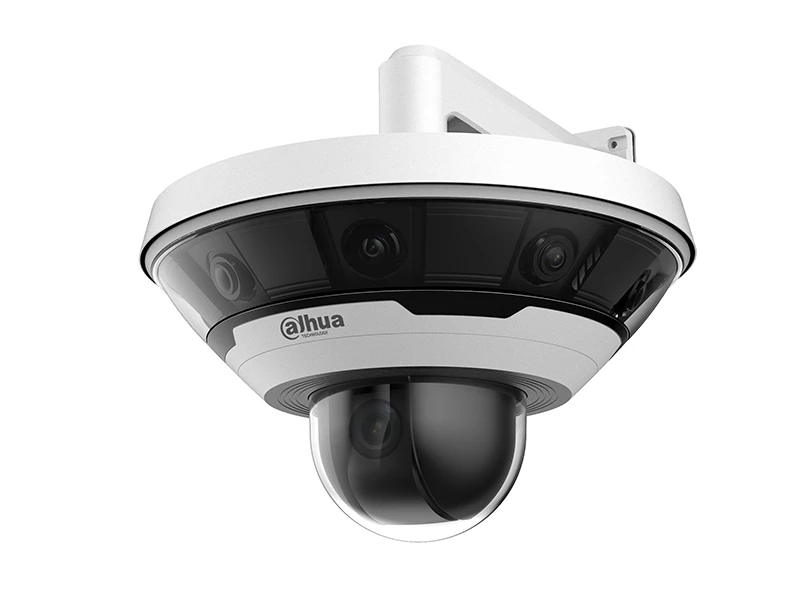

Dahua PSD81602 A360 Panoramik IP PTZ Kamera

Özellikler

Panoramic: Eight 1/1.9” 2Megapixel progressive scan CMOS
PTZ: One 1/1.9” 2Megapixel progressive scan CMOS
H.265/H.264 triple-stream encoding
2x25fps@4096x1800+50/60fps@1080P
Support 360-degree panoramic view
Day/Night(ICR), 3DNR, AWB, AGC, BLC
Smart tracking
Intelligent Function
Micro SD memory, IP67, IK10

Teknik Özellikler

Panoramic Camera
Image Sensor	Eight 1/1.9” 2Megapixel CMOS
Effective Pixels	2x4096(H)x1800(V)
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1/3~1/100000s
Minimum Illumination	0.005Lux/F2.2( Color,1/3s,30IRE) 0.03Lux/F2.2( Color,1/30s,30IRE) 0.003Lux/F2.2( B/W,1/3s,30IRE) 0.02Lux/F2.2( B/W,1/30s,30IRE)
S/N Ratio	More than 50dB
Panoramic Lens
Lens Type	Fixed
Mount Type	Board-in
Focal Length	5mm
Max. Aperture	F2.2
Angle of View	H: 360˚, V:80˚
DORI Distance	Detect	Observe	Recognize	Identify
	53m(178ft)	21m(69ft)	10m(33ft)	5m(17ft)
PTZ Camera
Image Sensor	1/1.9” 2Megapixel CMOS
Effective Pixels	1920(H)x1080(V)
RAM/ROM	1024MB/128MB
Scanning System	Progressive
Electronic Shutter Speed	Auto/Manual, 1~1/30000s
Minimum Illumination	0.002Lux/F1.5( Color,1/3s,30IRE)
	0.01Lux/F1.5( Color,1/30s,30IRE)
	0.001Lux/F1.5( B/W,1/3s,30IRE)
	0.008Lux/F1.5( B/W,1/30s,30IRE)
S/N Ratio	More than 50dB
PTZ Lens
Lens Type	Motorized /Auto Iris(HALL)
Mount Type	Board-in
Focal Length	5.5mm~206mm
Max. Aperture	F1.5
Angle of View	H: 65.8˚~2.0˚
Optical Zoom	37x
Focus Control	Motorized
DORI Distance	Lens	Detect	Observe	Recognize	Identify
	W	70m(229ft)	28m(92ft)	14m(46ft)	7m(23ft)
	T	2080m(6824ft)	832m(2730ft)	416m(1365ft)	208m(682ft)
PTZ
Pan/Tilt Range	Pan: 0° ~ 360° endless; Tilt: -20° ~90°,auto flip 180°
Manual Control Speed	Pan: 0.1° ~240° /s;Tilt: 0.1° ~120° /s
Presets	300
PTZ Mode	5 Pattern, 8 Tour, Auto Pan ,Auto Scan
Speed Setup	Human-oriented focal Length/speed adaptation
Power up Action	Auto restore to previousPTZ andlens status after power failure
Idle Motion	Activate Preset/ Scan/Tour/ Patternif there is no command inthe specified period
Protocol	DH-SD, Pelco-P/D(Auto recognition)
Intelligence
Auto Tracking	Support
IVS	Tripwire, Intrusion
Video
Compression	H.265/H.264
Streaming Capability	3 Streams
Resolution	Panoramic Camera	2x4096×1800/2x3840×1680/2x2880×1264//2x1920x832/2x1280x560/2x1024X452
	PTZ Camera	1080P(1920x1080)/1.3M(1280x960)/720P(1280x720)/ D1(704×576/704x480)/ CIF(352×288/352x240)
Frame Rate	Panoramic Camera	Main Stream:2x4096x1800(1~25fps)
		Sub Stream:2x1024X452(1 ~ 25/30fps)
		Third Stream: 2x1920x832(1 ~ 25/30fps)
	PTZ Camera	Main Stream:1080P(1~50/60fps)
		Sub Stream: D1(1~50/60fps)
		Third Stream:1080P(1~50/60fps)
Bit Rate Control	CBR/VBR
Bit Rate	Panoramic Camera	H.265: 2x (14Kbps~8192Kbps) H.264: 2x (24Kbps~8192Kbps)
	PTZ Camera	H.265: 4Kbps~8192Kbps H.264: 8Kbps~7168Kbps
Day/Night	Auto(ICR) / Color / B/W
BLC Mode	BLC / HLC / WDR
White Balance	Auto/Natural/Street Lamp/Outdoor/Manual
Gain Control	Auto/Manual
Noise Reduction	3D DNR
Motion Detetion	Off / On (4 Zone, Rectangle)
Region of Interest	Off / On (4 Zone)
Electronic Image Stabilization(EIS)	N/A
Smart IR	N/A
Defog	Support(For PTZ Camera only)
Digital Zoom	16x
Flip	N/A
Mirror	N/A
Privacy Masking	Panoramic Camera	Off / On(4 Area, Rectangle)
	PTZ Camera	Off / On(24 Area, Rectangle)
Audio
Compression	G.711a/G.711Mu/AAC/ G.726
Network
Ethernet	RJ-45 (100/1000Base-T)
Protocol	HTTP;HTTPs;TCP;ARP;RTSP;RTP;UDP;SMTP;FTP;DHCP;DNS;DDNS;PPPOE;IPv4/v6;QoS;UPnP;NTP; Bonjour;802.1x;Multicast;ICMP;IGMP;SNMP
Interoperability	ONVIF, PSIA, CGI
Streaming Method	Unicast / Multicast
Max. User Access	10 Users/20 Users
Edge Storage	NAS Local PC for instant recording Mirco SD card 128GB
Web Viewer	IE, Chrome, Firefox, Safari
Management Software	Smart PSS, DSS, Easy4ip
Smart Phone	IOS, Android
Certifications
Certifications	CE (EN 60950:2000) UL:UL60950-1 FCC: FCC Part 15 Subpart B
Interface
Video Interface	1 Port(For PTZ Camera only)
Audio Interface	2/1 channel In/Out
RS485	1 Port
Alarm	7 channel In: 5mA 5VDC 2 channel Out: 1A30VDC / 0.5A 50VAC
Electrical
Power Supply	DC36V
Power Consumption	<120w
Environmental
Operating Conditions	-40° C ~ +60° C(-40° F ~ +140° F) / Lessthan 95% RH
Strorage Conditions	-40° C ~ +60° C(-40° F ~ +140° F) / Lessthan 95% RH
Ingress Protection	IP67
Vandal Resistance	IK10
Construction
Casing	Metal
Dimensions	Φ449.5mm×342.5mm(Φ17.7”×13.48”)
Net Weight	16kg(35.27lb)
Gross Weight	25kg(55lb)
