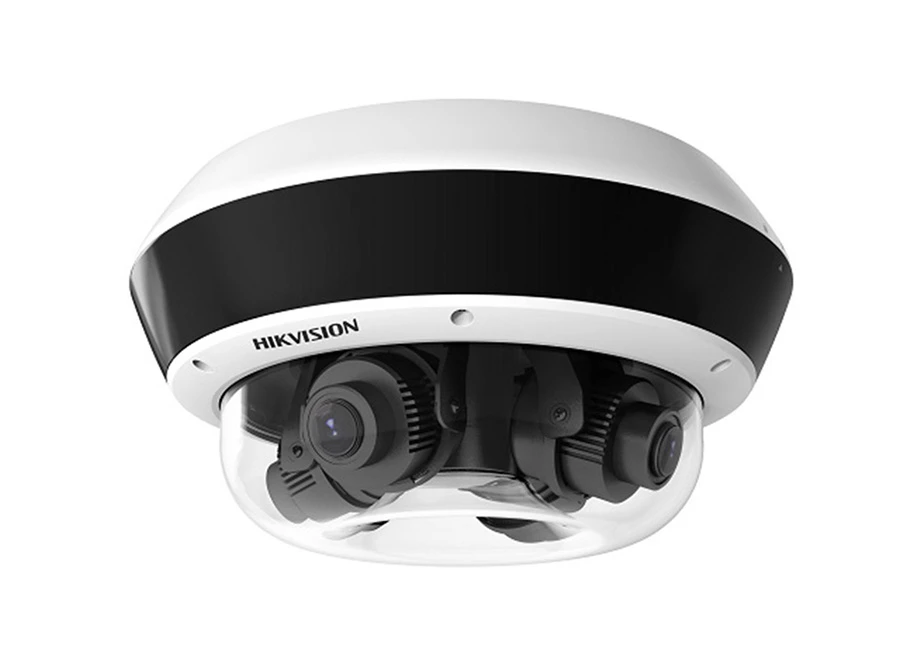

Hikvision DS 2CD6D24FWD IZSH NFC Panoramik IP Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor | 1/2.7” Progressive Scan CMOS |
İşaret Sistemi | PAL/NTSC |
Minimum Aydınlatma | Color 0.006 Lux @ (F1.2, AGC ON), 0.01 Lux @ (F1.6, AGC ON) |
B/W 0.002 Lux @ (F1.2, AGC ON); 0.003 Lux @ (F1.6, AGC ON) | |
0 Lux with IR on | |
Objektif Hızı | 1 s - 1/100,000 s |
Lens | 2.8mm to 12mm |
Lens Mount | φ14 |
Ayarlanan Aralık | Four flexible lens in one track, slide range -180° to 180°, tilt 0° to 135°, rotate 0° to 355° |
Day& Night | IR cut filter with auto switch |
Wide Dynamic Range | 120 dB |
Dijtal Gürültü Azaltma | 3D DNR |
Compression Standard | |
H.264 Türü | Baseline Profile / Main Profile / High Profile |
Video bit rate | 32Kbps~16Mbps |
Audio Compression | G.711/G.722.1/G.726/MP2L2 |
Ses Bit Hızı | 64Kbps(G.711) / 16Kbps(G.722.1) / 16Kbps(G.726) / 32-192Kbps(MP2L2) / 16-64Kbps(AAC) |
Çift Akış | Yes |
Image | |
Ana Akış | 50Hz 25fps (704 × 576, 640 × 480) |
60Hz 30fps (704 × 480, 640 × 480) | |
Çerçeve Hızı | 50Hz 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
60Hz 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
Üçüncül Akış | 50Hz 25fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480) |
60Hz 30fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480) | |
Görüntü İyileştirme | BLC/ 3D DNR/ROI/Defog |
Image Settings | Rotate Mode, Saturation, Brightness, Contrast, Sharpness adjustable by client software or web browser |
BLC | Support |
Akıllı Buğu Giderme | Support |
3D DNR | Support |
Resim Yerleşimi | LOGO picture can be overlaid on video with 128x128 24bit bmp format |
Gündüz / Gece Anahtarı | Day/Night/Auto/Schedule/Triggered by Alarm In (-S) |
Network | |
Alarm Trigger | Motion detection, tampering alarm, network disconnect , IP address conflict, storage exception |
Protokoller | TCP/IP, UDP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, DDNS, RTP, RTSP, RTCP, PPPoE, NTP, UPnP, SMTP, SNMP, IGMP, QoS, IPv6, Bonjour |
General Function | User Authentication, Watermark, IP address filtering |
System Compatibility | ONVIF (Profile S, Profile G), ISAPI |
Interface | |
Alarm | 2 input, 2 output (up to 24 VD, 1A or 110 VAC, 500mA )(-S model) |
Dahili Depolama | Built-in Micro SD/SDHC/SDXC slot, up to 128 GB |
Reset Butonu | Yes |
Audio | |
Çevre Gürültü Filtreleme | Support(-S) |
General | |
Operating Conditions | -30 °C ~ 60 °C (-22 °F ~ 140 °F) |
Humidity 95% or less (non-condensing) | |
GÜç Tüketimi | 12 VDC ± 20% max. 28 W/2.3 A |
24 VAC ± 20%, max. 50 to 60 Hz/2.5 A (for customization) | |
-IZ, -IZHS/NFC Hi-PoE 42.5 VDC to 57 VDC, max. 34W/0.9 A to 0.6 A | |
-Z PoE (802.3at) 42.5 VDC to 57 VDC, max. 17W | |
Impact Protection | IK10 |
Weather Proof | IP67 |
IR Range | Approx. 10 to 30 meters |
Boyutlar | Camera Ø290 mm × 145.5 mm (Ø11.42" × 5.73") |
Package 453 mm × 393 mm × 385 mm (17.8" × 15.47" × 15.16") | |
Ağırlık | Camera Approx. 4.7 kg (10.3 lb.) |
With package Approx. 7.7 kg (16.8 lb.) |
Hikvision DS 2CD6D24FWD IZSH NFC Panoramik IP Kamera Pdf Dosyası870.18 KB
Hikvision DS 2CD6D24FWD IZSH NFC Panoramik IP Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası4.05 MB
Teknik Kısa
Irled : Var
Çözünürlük : 2MP (1080P)
