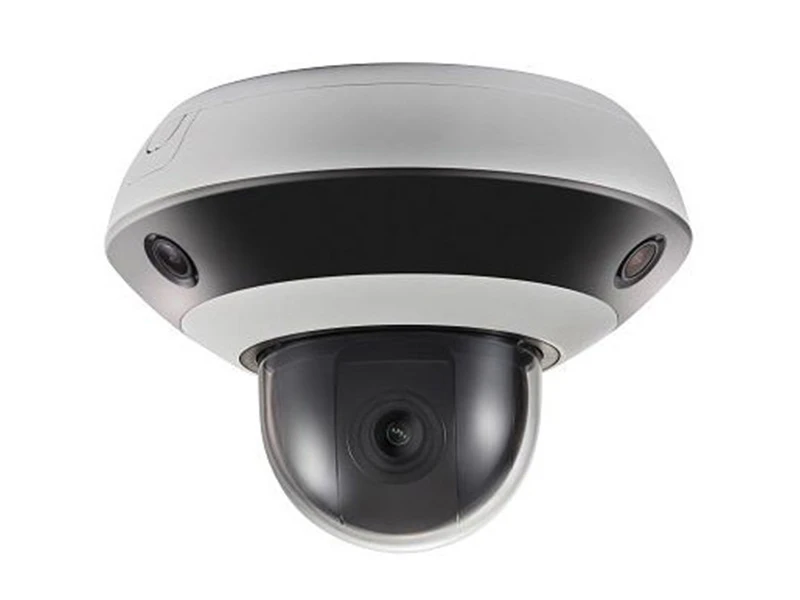

Hikvision DS 2PT3326IZ DE3(2.8-12mm) IR IP PTZ Kamera
Özellikler
Panoramic Camera
- 1/2.8" progressive scan CMOS
- 3-ch1920 × 1080@30fps resolution
- Min. illumination:
Color: 0.05 Lux @(F2.0, AGC ON)
B/W: 0.01 Lux @(F2.0, AGC ON)
0 Lux with IR - Support H.265 video compression
- Horizontal FOV: 128.5° × 3
PTZ Camera
- 1/2.8" progressive scan CMOS
- Up to 1920 × 1080@30fps resolution
- Min. illumination:
Color: 0.05 Lux @(F2.0, AGC ON)
B/W: 0.01 Lux @(F2.0, AGC ON)
0 Lux with IR - Support H.265 video compression
- 4× optical zoom, 8× digital zoom
Teknik Özellikler
| Panoramic Camera | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Max. Image Resolution | 1920 × 1080 |
| Min. Illumination | Color: 0.05 Lux @(F2.0, AGC ON) B/W: 0.01 Lux @(F2.0, AGC ON) 0 Lux with IR |
| Lens | f2mm/F2.0 |
| Angle of View | Horizontal field of view: 128.5° × 3 |
| Vertical field of view: 75.7° | |
| Diagonal field of view: 144° | |
| Main Stream | 50 Hz: 25 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 576, 640 × 480, 352 × 288) |
| 60 Hz: 30 fps (1920 × 1080, 1280 × 960, 1280 × 720, 704 × 480, 640 × 480, 352 × 240) | |
| Sub Stream | 50 Hz: 20 fps (704 × 576, 640 × 480, 352 × 288) |
| 60 Hz: 20 fps (704 × 480, 640 × 480, 352 × 240) | |
| Image Compression | H.265/H.264 |
| White Balance | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| Shutter Time | 50 Hz: 1/1 s to 1/30,000 s |
| 60 Hz: 1/1 s to 1/30,000 s | |
| Day& Night | ICR |
| Tracking PTZ Camera | |
| Image Sensor | 1/2.8" progressive scan CMOS |
| Max. Image Resolution | 1920 × 1080 |
| Minimum Illumination | Color: 0.05 Lux @(F2.0, AGC ON) |
| B/W: 0.01 Lux @(F2.0, AGC ON) | |
| 0 Lux with IR | |
| Angle of View | Horizontal field of view: 120° to 56.6° (wide - tele) |
| Vertical field of view: 61.8° to 31.7° (wide - tele) | |
| Diagonal field of view: 149° to 65° (wide - tele) | |
| Zoom Speed: | Approx.5.4 s (optical, wide - tele) |
| Focal Length | 2.8 mm to 12 mm, 4× optical zoom |
| White Balance | Auto / Manual /ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC | Support |
| Shutter Time | 50 Hz: 1/1 s to 1/30,000 s |
| 60 Hz: 1/1 s to 1/30,000 s | |
| Day & Night | IR Cut Filter |
| Optical Defog | Support |
| ROI encoding | Main stream and sub-stream respectively supports eight fixed areas. |
| Main Stream | 50Hz: 25fps (1920 × 1080, 1280 × 960, 1280 × 720) |
| 60Hz: 30fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub Stream | 50Hz:25fps (704×576, 352×288, 176×144) |
| 60Hz:30fps (704×480, 352×240, 176×120) | |
| Image Compression | H.265/H.264 |
| WDR | Digital WDR |
| Privacy Masking | 8 programmable privacy masks |
| Pan and Tilt | |
| Pan Range | ° to 350° |
| Pan Speed | 0.1°/s to 30°/s (configurable), preset speed: 30°/s |
| Tilt Range | ° to 90° |
| Tilt Speed | 0.1°/s to 30°/s (configurable), preset speed: 30°/s |
| Number of Preset | 300 |
| Scheduled Task | Preset/Dome Reboot/Dome Adjust |
| Power-off memory | Support |
| System Function | |
| IR | Up to 10 m IR distance |
| PTZ Linkage | Support |
| Smart Detection | Motion Detection, Video Tampering Detection, Exception |
| Input & Output | |
| Audio Input | 1-ch audio input |
| Audio Output | 1-ch audio output |
| Network | |
| Audio compression | G.711ulaw/G.711alaw/G.722/G.726/MP2L2/PCM |
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour |
| Application programming | Open-ended API, support Onvif, ISAPI, CGI |
| System Integration | |
| Menu | English |
| User/Host Level | Up to 32 users,3 Levels: Administrator, Operator and User |
| Security Measures | User authentication (ID and PW); Host authentication (MAC address); IP address filtering |
| Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
| Simultaneous Live View | Up to 8 × 2 channels |
| Ethernet | 1 RJ45 10 M/100 M Ethernet |
| Onboard Storage | Built-in Micro SD/SDHC /SDXC card slot, up to 128GB, manual/alarm recording |
| General | |
| Power supply | 12 VDC & PoE+ (802.3 at, class 4) |
| Consumption (without hard disk) | Max.24 W (Max. 6 W for IR) |
| Working temperature | -10°C to 50°C (14°F to 122°F) |
| Working humidity | Humidity 90% or less |
| Material | PC + ABS & Aluminum alloy |
| Protection Level | TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Dimensions (W×D×H) | Φ 183 mm × 133.2 mm (Φ 7.20" × 5.24") |
| Weight | Approx. 0.9 kg (1.98 lb) |
Hikvision DS 2PT3326IZ DE3(2.8-12mm) IR IP PTZ Kamera Pdf Dosyası806.16 KB
Hikvision DS 2PT3326IZ DE3(2.8-12mm) IR IP PTZ Kamera Kullanıcı Kılavuzu (ing) Pdf Dosyası3.33 MB
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
Irled : Var
