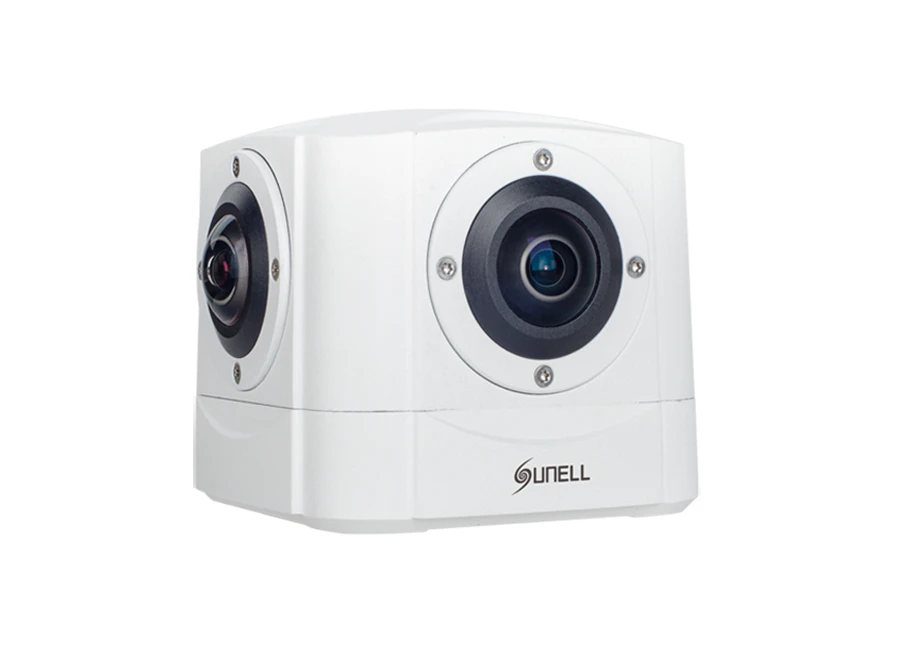

Sunell SN IPP5790DDN Panoramik IP Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | Four 1/1.8” 8MP Progressive Scan CMOS |
| Effective Pixels | 7680(H)×4320(V) |
| Scanning System | Progressive |
| Electronic Shutter | 1/5-1/20,000s |
| Min. illumination | Color:0.002Lux@(F2.2, AGC ON) |
| B/W:0.0002Lux@( F2.2, AGC ON) | |
| S/N Ratio | ≥55dB |
| IR Range | N/A |
| IR On/Off Control | N/A |
| IR LEDs | N/A |
| Pan/Tilt/Rotation Range | N/A |
| Lens | |
| Lens Type | Fixed |
| Iris | Fixed Iris |
| Focal Length | 2.2mm |
| F Number | F2.2 |
| Angle of View | 360°×360° |
| Focus Control | Fixed |
| Close Focus Distance | N/A |
| Video | |
| Compression | H.265, H.264, MJPEG |
| Max. Resolution | Edge stitching 7680×4320 |
| Streaming Capability | 3 Streams |
| Stream / | Stream1: 7680×4320 @25fps,5760×3240/3840×2160 @25fps/30fps |
| Frame Rate | Stream2: 2560×1440/1080P/D1 @25fps/30fps |
| Stream3: 720P/640×360/D1 @25fps/30fps | |
| Bit Rate Control | CBR/VBR |
| Bit Rate | Stream1: 500Kbps～16Mbps |
| Stream2: 500Kbps~12Mbps | |
| Stream3: 100Kbps~8Mbps | |
| Day/Night | Color |
| Image Enhancement | DWDR / BLC / HLC / Defog |
| White Balance | Auto/Manual |
| Gain Control | Auto/Manual |
| Noise Reduction | 2D/3D DNR |
| Electronic Image Stabilization(EIS) | Support |
| Smart IR | N/A |
| Mirror | N/A |
| Region of Interest | Support |
| Motion Detection | Support |
| Privacy Masking | Support |
| Video Mode | Full Screen Stretch, 360 degrees panorama, |
| Crystal Ball, Asteroid, Auto Cruise | |
| Audio | |
| Compression | G.711 |
| Bit Rate | 64kbps (G.711), 128kps (RAW_PCM) |
| Network | |
| Protocols: | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, APR, SNMP |
| Interoperability | ONVIF |
| Streaming Method | Unicast |
| Max. User Access | 10 Users |
| Web Viewer | <IE11, Firefox, Chrome |
| Management Software | SunView |
| Smart Phone | IOS, Android(>V4.3) |
| Intelligence | |
| IVS | Perimeter, Single Virtual Fences, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad, Audio Anomaly Detection |
| Interface | |
| Ethernet | 1 Ethernet (1000 Base-T) RJ-45 Connector |
| Audio | 1ch Audio In,1ch Audio Out, 2ch Built-in MIC |
| Alarm | 1ch Alarm In,1ch Alarm Out |
| RS485 | N/A |
| BNC Output | N/A |
| Reset Button | Support |
| Edge Storage | N/A |
| Electrical | |
| Power Supply | DC12V/POE+ |
| Power Consumption | Max 10W |
| Operating Temperature | Starting Temperature: -30°C ~ 60°C (-22°F ~ 140°F ) |
| Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F) | |
| Operating Humidity | Less than 90% RH |
| Ingress Protection | IP66 |
| Certifications | CE / FCC |
| Casing | Metal |
| Dimensions | 112.2×112.2×90mm |
| Net Weight | 1.25Kg |
Teknik Kısa
Depolama : Var
