Açıklama

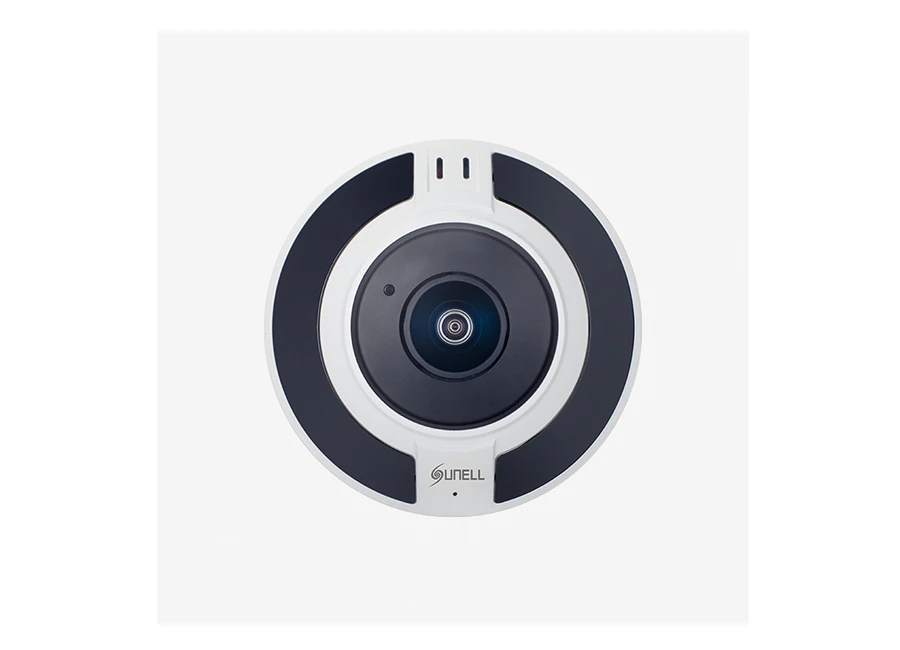

Sunell SN IPV57/80ECDR Panoramik IP Kamera
Özellikler
Teknik Özellikler
Camera | |
Image Sensor | 1/1.7” Progressive Scan CMOS |
Effective Pixels | 4000(H)×3000 (V) |
Scanning System | Progressive |
Electronic Shutter | 1/5-1/20000s |
Min. illumination | Color:0.009Lux@(F1.2,AGC ON) |
B/W:0Lux@(IR LED ON) | |
S/N Ratio | 55dB |
IR Range | Up to 15m |
IR On/Off Control | Auto/ Manual |
IR LEDs | 6pcs |
Pan/Tilt/Rotation Range | N/A |
Lens | |
Lens Type | Fixed |
Iris | Fixed Iris |
Focal Length | 1.4mm |
F Number | F2.4 |
Angle of View | 360° |
Focus Control | Fixed |
Close Focus Distance | N/A |
Video | |
Compression | H.265,H.264,MJPEG |
Max. Resolution | 12MP(4000×3000) |
Streaming Capability | 2 Streams |
Stream / | Stream1: 4000*3000 @20fps, 4096*2160/ 3840*2160/ 3000*3000/ 2560*2560/ 1920*1080 @25fps |
Frame Rate | Stream2: 1280*960/ 720*720/ D1 @25fps |
Bit Rate Control | CBR/VBR |
Bit Rate | Stream1: 500kbps~16000kbps |
Stream2: 100kbps~8000kbps | |
Day/Night | ICR |
Image Enhancement | HLC / Defog / dWDR |
White Balance | Support |
Gain Control | Auto/Manual |
Noise Reduction | 2D/3D DNR |
Electronic Image Stabilization(EIS) | Support |
Smart IR | Support |
Mirror | Support |
Region of Interest | Support |
Motion Detection | Support |
Privacy Masking | Support |
Audio | |
Compression | G.711 ,RAW_PCM |
Bit Rate | 64kbps (G.711), 128kps (RAW_PCM) |
Network | |
Protocols: | IPv4/IPv6, 802.1x, HTTP, HTTPS, TCP/IP, UDP/IP, RTSP, DHCP, NTP, RTCP/RTP, PPPoE, SMTP, DNS, UPnP, FTP, APR, SNMP |
Interoperability | ONVIF |
Streaming Method | Unicast |
Max. User Access | 10 Users |
Web Viewer | <IE11, Chrome, Firefox |
Management Software | IMS 3.0 |
Smart Phone | IOS, Android |
Intelligence | |
IVS | Perimeter, Single Virtual Fences, Double Virtual Fences, Loiter, Multi Loiter, Object Left, Object Removed, Abnormal Speed, Converse, Illegal Parking, Signal Bad |
Interface | |
Ethernet | 1 Ethernet (10/100 Base-T) RJ-45 Connector |
Audio Interface | 1ch Audio In,1ch Audio Out, 1ch Built-in MIC |
Alarm | 1ch Alarm In,1ch Alarm Out |
RS485 | N/A |
BNC Output | N/A |
Reset Button | Support |
Edge Storage | Micro SD/SDHC/SDXC slot ,Max 128GB |
Electrical | |
Power Supply | DC12V/POE |
Power Consumption | 3.5W(IR LED OFF), 9W(IR LED ON) |
Operating Temperature | Starting Temperature: -30°C ~ 60°C (-22°F ~ 140°F ) |
Working Temperature: -40°C ~ 60°C (-40°F ~ 140°F) | |
Operating Humidity | Less than 90% RH |
Ingress Protection | IP66 |
Certifications | CE / FCC |
Casing | Metal |
Dimensions | Φ130×38.3mm |
Net Weight | 500g |
Teknik Kısa
Depolama : Var
Irled : Var
Çözünürlük : 12MP
