Açıklama

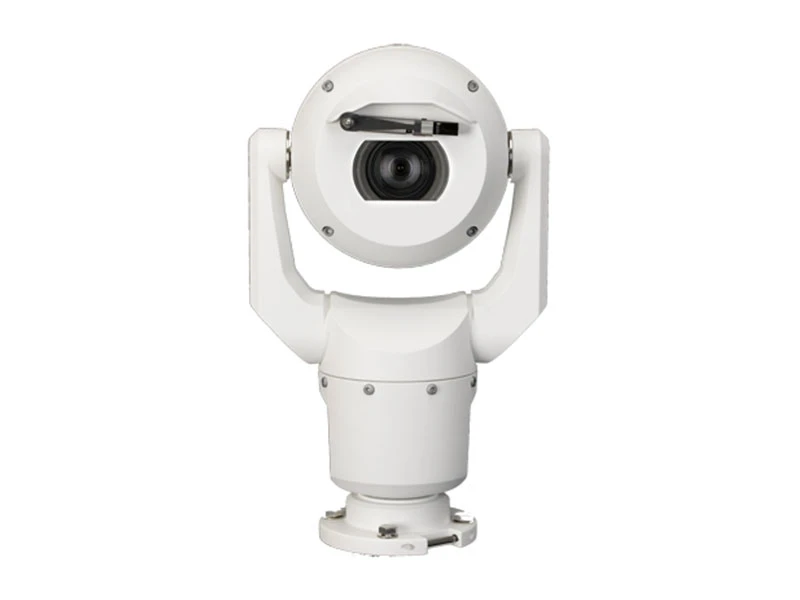

Bosch MIC IP starlight 7000 HD 1080P IP HD Speed Dome Kamera

Özellikler

Exceptional strength and ruggedness for any outdoor application such as traffic monitoring (bridges, tunnels, or highways), perimeter protection, and city surveillance
Starlight () camera technology with excellent low-light sensitivity (color = 0.0077 lux)
Extended Dynamic Range mode (120 dB) to see details in bright and dark areas simultaneously
Optional, field-installable combo illuminator (IR/White light) provides detection of objects up to 300 m (984 ft) away

Teknik Özellikler

Imager	1/2.8-type Exmor R CMOS sensor
Effective Picture Elements (Pixels)	1945 x 1097 (2.13 MP)
Lens	30x Zoom4.3 mm to 129 mmF1.6 to F4.7
Field of View (FOV)	2.3° to 65°
Focus	Automatic with manual override
Iris	Automatic with manual override
Digital Zoom	12x
Color	0.0077 lx
Mono	0.0008 lx
Gain control	AGC, Fixed
Aperture Correction	Horizontal and vertical
Electronic Shutter Speed (AES)	1/1 sec to 1/10000 sec (22 steps)
Signal-to-Noise Ratio (SNR)	>55 dB
Backlight compensation (BLC)	On, Off
White balance	2000 K to 10,000 K ATW, AWB Hold, Extended ATW, Manual, Sodium Lamp Auto, Sodium Lamp
Day/Night	Monochrome, Color, Auto
25/30 fps	120 dB
50/60 fps	90 dB
Drive Unit	Brushless, integral pan/tilt motor drive
Pan Range	360° continuous rotation
Tilt Angle	Without illuminators (camera upright): 290°Without illuminators (camera inverted): 250°With illuminators: 186.6°
Tilt Range	Upright unit: -55° - +90°Canted unit: -90° - +90°
Variable Pan Speed	0.8°/second - 120°/second
Variable Tilt Speed	0.8°/second - 90°/second
Intelligent Tracking Speed	0.8°/second - 120°/second
Pre-position Speed	120°/second
Preset Accuracy	0.17° (typical)
Proportional Pan / Tilt to Zoom	Yes
Zoom Movement Speed	<5 seconds="" optical="" wide="" to="" tele="" td="">
Audible Noise	<65 db="" td="">
Input Voltage	21-30 VAC, 50/60 Hzand/orEthernet High PoE cable connection (56 VDC)
Power Consumption	Without illuminator: 40 W maximumWith illuminator: 70 W maximum
Camera Setup/Control	Via Internet Explorer web browser version 7.0 or later, Bosch Configuration Manager, Bosch Video Management System (BVMS), Bosch Video Client (BVC), or support for third party software
Software Update	Network firmware upload
Serial protocols	Bosch OSRD, Pelco P/D, and Forward Vision (Note: For Pelco and Forward Vision protocols, a separate license (MVS-FCOM-PRCL) is required.)
Standards / Video compression	H.264 (ISO/IEC 14496‑10), M‑JPEG, JPEG
Streaming	Four (4) streams with individually configurable frame rate and resolution: Two (2) independently configurable H.264 recording streams Two (2) non-recording streams (profiles)
When the option in field “Property” for Stream 1 is:	The available options in field “Property” for Stream 2 are:
H.264 MP SD	- H.264 MP SD
H.264 MP 720p fixed	- H.264 MP SD - H.264 MP 720p fixed - H.264 MP 400x720 upright (cropped) - H.264 MP D1 4:3 (cropped) - H.264 MP 1280x960 (cropped) - H.264 MP 640x480
H.264 MP 1080p fixed	- Copy Stream 1 - H.264 MP SD - H.264 MP 720p8/10 fixed - H.264 MP 1080p4/5 fixed - H.264 MP 400x720 upright (cropped) - H.264 MP D1 4:3 (cropped) - H.264 MP 640x480
H.264 MP 720p50/60 fixed	- Copy Stream 1 - H.264 MP SD - H.264 MP 720p6/7 fixed - H.264 MP 400x720 upright (cropped) - H.264 MP D1 4:3 (cropped) - H.264 MP 640x480
Non-recording profiles	Two (2) streams, I-frame only Options are:- HD Image Optimized- HD Balanced- HD Bit Rate Optimized- SD Image Optimized- SD Balanced- SD Bit Rate Optimized- DSL Optimized- 3G Optimized
1080p HD	1920 x 1080
720p HD	1280 x 720
432p SD	768 x 432
288p SD	512 x 288
144p SD	256 x 144
