Açıklama

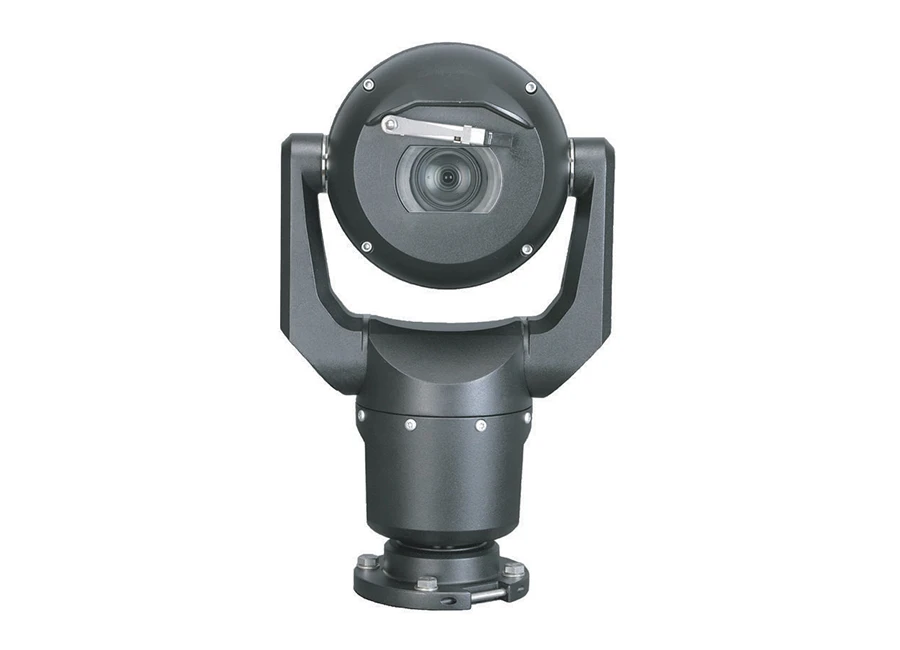

Bosch MIC IP starlight 7000 HD 720p IP HD Speed Dome Kamera
Özellikler
- Exceptional strength and ruggedness for any outdoor, industrial, or commercial surveillance application
- Starlight (720p50/60) camera technology with high-performance 30x lens for scenes with limited or non-uniform illumination
- Optional, field-installable combo illuminator (IR/White light) provides detection of objects up to 175 m (575 ft) away
- Simple installation with new hinged DCA mounting accessory and new cable design
- ONVIF conformant; provides interoperability with other conformant systems.
Teknik Özellikler
| Imager | 1/3-type Exmor CMOS sensor |
| Effective Picture Elements (Pixels) | 1305 x 1049 (1.37 MP) |
| Lens | 30x Zoom4.3 mm to 129 mmF1.6 to F4.7 |
| Field of View (FOV) | 2.1° to 59° |
| Focus | Automatic with manual override |
| Iris | Automatic with manual override |
| Digital Zoom | 12x |
| Sensitivity / Minimum Illumination (typical) | 30 IRE , 50 IRE |
| Fixed shutter 1/30, High Sensitivity mode On | 0.052 lux , 0.166 lux |
| Fixed shutter 1/30, High Sensitivity mode Off | 0.26 lux , 0.66 lux |
| SensUp On (max. ¼), High Sensitivity mode On | 0.0082 lux , 0.033 lux |
| Fixed shutter 1/30, High Sensitivity mode On | 0.0103 lux , 0.041 lux |
| Fixed shutter 1/4, High Sensitivity mode On | 0.00129 lux , --- |
| SensUp On (max. ¼), High Sensitivity mode On | 0.00065 lux , 0.00205 lux |
| Gain Control | Auto/Manual/Max |
| Aperture Correction | Horizontal and vertical |
| Electronic Shutter Speed (AES) | 1/1 sec to 1/10000 sec (22 steps) |
| Dynamic Range | 90 dB typical |
| Signal-to-Noise Ratio (SNR) | >50 dB |
| Backlight Compensation (BLC) | On/Off |
| White Balance | 2000 K to 10,000 K ATW, AWB Hold, Extended ATW, Manual, Sodium Lamp Auto, Sodium Lamp |
| Day/Night | Monochrome, Color, Auto |
| Defog mode feature | Improves visibility when viewing foggy or other low-contrast scenes. |
| Drive Unit | Brushless, integral pan/tilt motor drive |
| Pan Range | 360° continuous rotation |
| Tilt Angle | Without illuminators (camera upright): 290°Without illuminators (camera inverted): 250°With illuminators: 186.6° |
| Tilt Range | Upright unit: -55° - +90°Canted unit: -90° - +90° |
| Variable Pan Speed | 0.2°/second - 120°/second |
| Variable Tilt Speed | 0.2°/second - 60°/second |
| Pre-position Speed | 120°/second |
| Preset Accuracy | 0.17° (typical) |
| Proportional Pan / Tilt to Zoom | Yes |
| Audible Noise | <65dB |
| Input Voltage | 21-30 VAC, 50/60 Hzand/orEthernet High PoE cable connection (56 VDC) |
| Power Consumption | Without illuminator: 40 W maximumWith illuminator: 70 W maximum |
| Camera Setup/Control | Via Internet Explorer web browser version 7.0 or later, Bosch Configuration Manager, Bosch Video Management System (BVMS), Bosch Video Client (BVC), or support for third party software |
Bosch MIC IP starlight 7000 HD 720p IP HD Speed Dome Kamera PDF Dosyası1.43 MB
Teknik Kısa
Çözünürlük : 1MP (720P)
