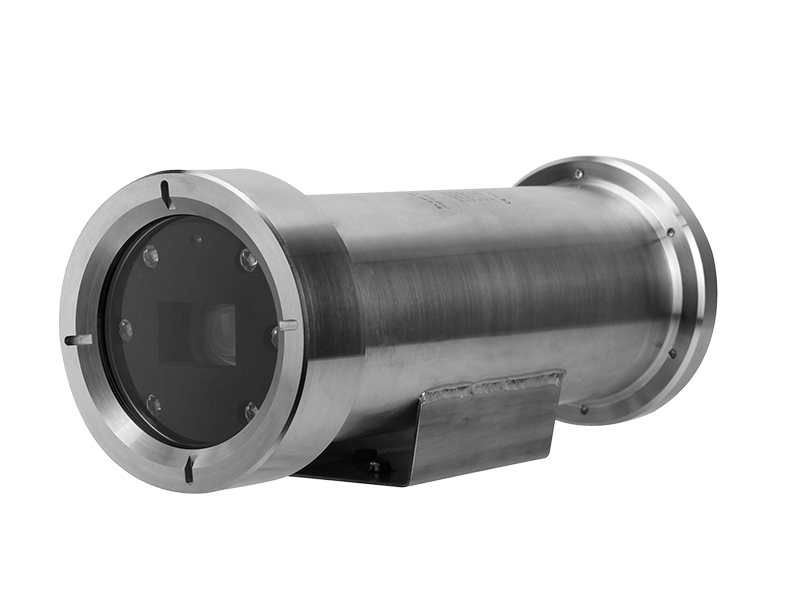

Dahua EPC230U IR IP PTZ Kamera
Özellikler
Teknik Özellikler
| Camera | |||
| Image Sensor | 1/2.8” STARVIS™ CMOS | ||
| Effective Pixels | 1920(H) x 1080(V), 2 Megapixels | ||
| RAM/ROM | 512M/128M | ||
| Scanning System | Progressive | ||
| Electronic Shutter Speed | 1/1s~1/30,000s | ||
| Minimum Illumination | Color: 0.005Lux@F1.6; B/W: 0.0005Lux@F1.6; 0Lux@F1.6 (IR on) | ||
| S/N Ratio | More than 55dB | ||
| IR Distance | Distance up to 100m (328ft) | ||
| IR On/Off Control | Auto/Manual | ||
| IR LEDs | 6 | ||
| Lens | |||
| Focal Length | 4.5mm~135mm | ||
| Max. Aperture | F1.6 ~ F4.4 | ||
| Angle of View | H: 67.8° ~ 2.4° | ||
| Optical Zoom | 30x | ||
| Focus Control | Auto/Manual | ||
| Close Focus Distance | 100mm~ 1000mm | ||
| DORI Distance | |||
| Note: The DORI distance is a “general proximity” of distance which makes it easy to pinpoint the right camera for your needs. The DORI distance is calculated based on sensor specification and lab test result according to EN 62676-4 which defines the criteria for Detect, Observe, Recognize and Identify respectively. | |||
| Detect | Observe | Recognize | Identify |
| 1862m(6109ft) | 744m(2441ft) | 372m(1220ft) | 186m(610ft) |
| Intelligence | |||
| Auto Tracking | N/A | ||
| IVS | Tripwire, Intrusion, Abandoned/Missing, Face Detection, Heat Map | ||
| Video | |||
| Compression | H.265+/H.265/H.264+/H.264 | ||
| Streaming Capability | 3 Streams | ||
| Resolution | 1080P(1920×1080)/1.3M(1280×960)/720P(1280×720)/D1(704×576/704×480)/CIF(352×288/352×240) | ||
| Frame Rate | Main stream: 1080P/1.3M/720P(1~50/60fps) Sub stream1: D1/CIF(1 ~ 25/30fps) Sub stream2: 1080P/1.3M/720P/D1/CIF (1~25/30fps) | ||
| Bit Rate Control | CBR/VBR | ||
| Bit Rate | H.265/H.264: 448K ~ 8192Kbps | ||
| Day/Night | Auto(ICR) / Color / B/W | ||
| Backlight Compensation | BLC / HLC / WDR (120dB) | ||
| White Balance | Auto, ATW, Indoor, Outdoor, Manual | ||
| Gain Control | Auto / Manual | ||
| Noise Reduction | Ultra DNR (2D/3D) | ||
| Motion Detection | Support | ||
| Region of Interest | Support | ||
| Electronic Image Stabilization (EIS) | Support | ||
| Defog | Support | ||
| Digital Zoom | 16x | ||
| Flip | 180° | ||
| Privacy Masking | Up to 24 areas | ||
| Audio | |||
| Compression | G.711a/G.711Mu/AAC/G.722/G.726/MPEG2-L2 | ||
| Network | |||
| Ethernet | RJ-45 (10Base-T/100Base-TX) | ||
| Protocol | IPv4/IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, | ||
| ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP,DHCP, | |||
| DNS,PPPOE,DDNS,FTP, IP Filter,QoS,Bonjour,802.1x | |||
| Interoperability | ONVIF Profile S&G, API | ||
| Streaming Method | Unicast / Multicast | ||
| Max. User Access | 20 users | ||
| Edge Storage | NAS (Network Attached Storage),Local PC for instant recording, Micro SD card 256GB | ||
| Web Viewer | IE, Chrome, Firefox, Safari | ||
| Management Software | Smart PSS, DSS, DMSS | ||
| Smart Phone | IOS, Android | ||
| Certifications | |||
| Certifications | CE: EN55032/EN55024/EN50130-4 FCC: Part15 subpartB,ANSI C63.4- 2014 ATEX: EN 60079-0/EN 60079-1/EN 60079-31 IECEx : IEC 60079-0/IEC 60079-1/IEC 60079-31 | ||
| Explosion-proof Marking | ATEX: II 2 G Ex db IIC T6 Gb, II 2 D Ex tb IIIC T80°C Db | ||
| IECEx : Ex db IIC T6 Gb, Ex tb IIIC T80°C Db | |||
| Interface | |||
| Video Interface | 1 port(BNC, 1.0V[p-p], 75Ω) | ||
| RS485 | 1 | ||
| Audio I/O | 1/1 | ||
| Alarm I/O | 2/1 | ||
| Electrical | |||
| Power Supply | AC220V(AC100V ~ 240V), Hi-PoE | ||
| Power Consumption | 10W, 25W (IR on) | ||
| Environmental | |||
| Operating Conditions | -40°C ~ 60°C (-40°F ~ +140°F) / Less than 95% RH | ||
| Ingress Protection | IP68 | ||
| Vandal Resistance | N/A | ||
| Construction | |||
| Casing | 304 Stainless Steel | ||
| Dimensions | Φ396.1mm×149.5mm×143mm | ||
| Net Weight | 8.7kg(19.18lb) | ||
| Gross Weight | 10.4kg(22.93lb) | ||
Teknik Kısa
Depolama : Var
Irled : Var
Çözünürlük : 2MP (1080P)
