Açıklama

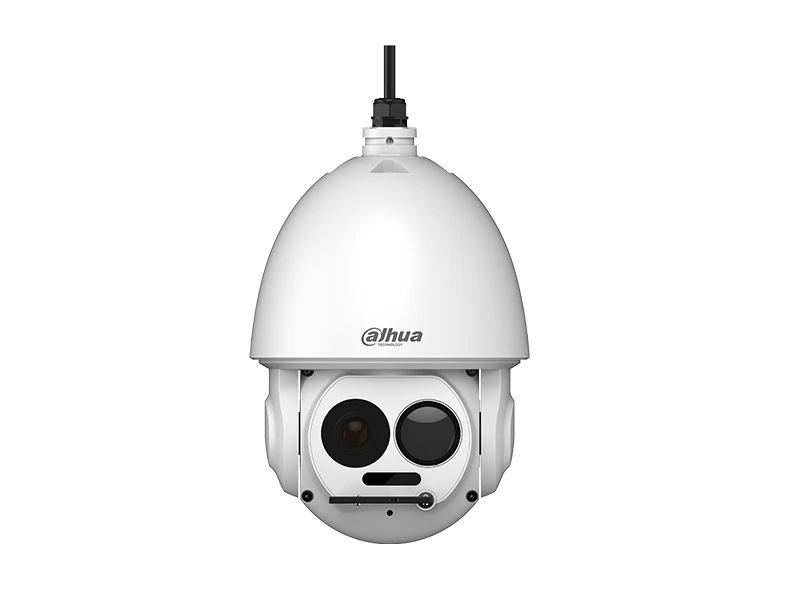

Dahua TPC SD8620 B IP Hybrid Speed Dome Termal Kamera
Özellikler
- 640x512 VOx uncooled thermal sensor technology
- Athermalized Lens(thermal), Focus-free
- 1/1.9” 2Megapixel progressive scan Sony CMOS
- Powerful 30x optical zoom
- Support fire detection & alarm
- Max 240°/s pan speed, 360° endless pan rotation
- Up to 300 presets, 5 auto scan, 8 tour, 5 pattern
- 7/2 alarm in/out
- Micro SD memory, IP66
Teknik Özellikler
| Thermal Camera | |||
| Image Sensor | Uncooled VOx Microbolometer | ||
| Effective Pixels | 640(H)x512(V) | ||
| Pixel Size | 17um | ||
| Thermal Sensitivity(NETD) | <40mK@f/1.0 | ||
| Spectral Range | 7~14um | ||
| Image Setting | Brightness/Sharpness/ROI/AGC/FFC/3D DNR | ||
| Color Palettes | 14(Whitehot/Blackhot/Ironrow/Icefire/ Fusion/Rainbow/Globow/Iconbow1/ıconbow2 .etc) | ||
| Thermal Lens | |||
| Lens Type | Fixed | ||
| Focus Control | Athermalized, Focus-free | ||
| Focal Length | 25mm | 35mm | 50mm |
| Angle of View | H:24.6°, V:19.8° | H:17.2°, V:13.8° | H:12.3°, V:9.9° |
| Effective Distance①Man(1.8m*0.5m) | D②:1000m R③:250m I ④ :125m | D:1300m R:320m I : 160m | D:1700m R: 430m I : 220m |
| Effective DistanceVehicle(2.3m*2.3m) | D:3000m R:720m I :360m | D:4000m R: 1000m I : 500m | D:5000m R: 1400m I : 700m |
| Visible Camera | |||
| Image Sensor | 1/1.9" Sony CMOS | ||
| Effective Pixels | 1944(H)x1092(V) | ||
| Electronic Shutter Speed | 1/1 ~ 1/30,000s | ||
| Min. Illumination | 0.001Lux@F1.5(Color), 0.0001Lux@F1.5(B/W) | ||
| S/N Ratio | More than 55dB | ||
| IR Distance | 150m (492ft) | ||
| IR On/Off Control | Auto / Manual | ||
| IR LEDs | 4 | ||
| Visible Lens | |||
| Focal Length | 6mm~180mm | ||
| Max Aperture | F1.5 ~ F4.3 | ||
| Angle of View | H: 59° ~ 2.4° | ||
| Optical Zoom | 30x | ||
| Focus Control | Auto / Manual | ||
| Close Focus Distance | 100mm~ 1000mm (0.33ft~3.28ft) | ||
| PTZ | |||
| Pan/Tilt Range | Pan: 0° ~ 360° endless;Tilt: -10° ~ 90° | ||
| Manual Control Speed | Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s | ||
| Preset Speed | Pan: 0.1° ~240° /s ;Tilt: 0.1° ~200° /s | ||
| Preset | 300 | ||
| PTZ Mode | 5 Auto Scan, 8 Tour, 5 Pattern, Auto Pan | ||
| Speed Setup | Human-oriented focal length/ speed adaptation | ||
| Power Up Action | Auto restore to previous PTZ and lens status after power failure | ||
| Idle Motion | Activate Preset/ Scan/ Tour/ Pattern if there is no command in the specified period | ||
| Protocol | DH-SD, Pelco-P/D (Auto recognition) | ||
| Video | |||
| Compression | H.264 / MJPEG | ||
| Frame Rate | Main Stream: Thermal: 1280x1024(default) / 720P @1~25/30fps Visible: 1080P(default) /720P @1~25/30fps | ||
Sub Stream: Thermal: 640x512(default) / 320x256 @1~25/30fps Visible: CIF(default) / D1 @1~25/30fps | |||
| Bit Rate Control | CBR / VBR | ||
| Bit Rate | H.264: 640 ~8192Kbps | ||
| Day/Night | Auto(ICR) / Color / B/W | ||
| BLC Mode | BLC / HLC / WDR | ||
| White Balance | Auto / ATW / Indoor / Outdoor / Manual | ||
| Noise Reduction | 3D DNR | ||
| Motion Detetion | Off / On (4 zone, Rectangle) | ||
| Region of Interest | Off / On (4 zone) | ||
| Electronic Image Stabilization | NA | ||
| (EIS) | |||
| Defog | Off / On | ||
| Digital Zoom | 24x | ||
| Flip | 180° | ||
| Mirror | Off / On | ||
| Privacy Masking | Off / On (4 area, Rectangle) | ||
| Audio | |||
| Compression | G.711A / G.711Mu / AAC | ||
| Intelligence | |||
| IVS | Tripwire, Intrusion, Object Abandoned/Missing | ||
| Advanced Intelligent Functions | Fire detection & alarm | ||
| Tracking Trigger Mode | NA | ||
| Tracking Trigger Event | NA | ||
| Network | |||
| Ethernet | RJ-45 (10/100Base-T) | ||
| Protocol | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, ONVIF | ||
| Interoperability | ONVIF Profile S&G, PSIA, CGI | ||
| Streaming Method | Unicast / Multicast | ||
| Max. User Access | 10 Users / 20 Users | ||
| Edge Storage | Micro SD (256GB) Memory status display (Normal / Error / Active / Formatting / Lock), NAS (Network Attached Storage), Local PC for instant recording | ||
| Web Viewer | <IE11, <Chrome45, <Firefox52 | ||
| Management Software | Smart PSS, DSS | ||
| Smart Phone | Android, Ios | ||
| Certifications | |||
| Certification | CE (EN 60950:2000) FCC (FCC Part 15 SubpartB ) | ||
| Interface | |||
| Video Interface | 1.0Vp-p/75Ω, PAL / NTSC (HDCVI Optional) | ||
| Audio Interface | Input/Output 1 Input / 1 Output | ||
| RS485 | Support | ||
| Alarm | 7/2 In/Out | ||
| Electrical | |||
| Power Supply | AC 24V/3A±15% | ||
| Power Consumption | 17W, Max. 38W (Heater, LEDs on) | ||
| Environmental | |||
| Operating Condition | -40°C ~ +70°C (-40°F ~ +158°F) / Less than 95% RH * Start up should be done at above -40°C (-40°F) | ||
| Strorage Conditions | -40°C ~ +70°C (-40°F ~ +158°F)) / Less than 95% RH | ||
| Ingress Protection | IP66 | ||
| Construction | |||
| Casing | Metal | ||
| Dimensions | Φ240mm x 382mm (Φ9.45" x 15.04") | ||
| Net Weight | 6.8Kg (14.99 lb) | ||
| Gross Weight | 9.5Kg (20.94 lb) | ||
Dahua TPC SD8620 B IP Hybrid Speed Dome Termal Kamera Pdf Dosyası1.01 MB
Teknik Kısa
Depolama : Var
Çözünürlük : 2MP (1080P)
