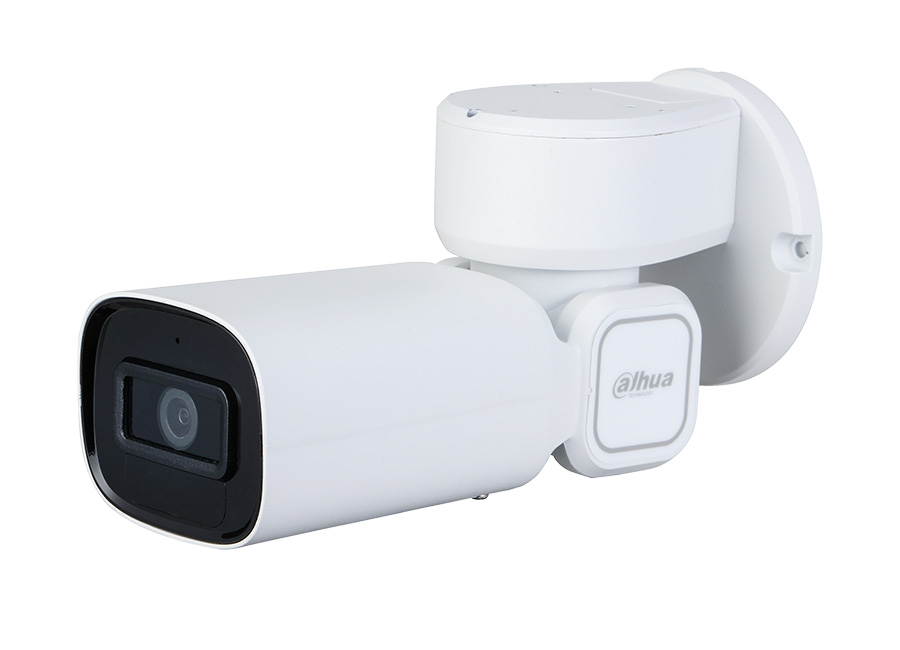

Dahua PTZ1C200UE GN IR IP PT Kamera
Özellikler
Teknik Özellikler
| Camera | |||||
| Image Sensor | 1/2.8" STARVIS™ CMOS | ||||
| Max. Resolution | 2MP | ||||
| Effective Pixels | 1920 (H) × 1080 (V) | ||||
| ROM | 128MB | ||||
| RAM | 256MB | ||||
| Electronic Shutter Speed | 1/3–1/30000s | ||||
| Minimum Illumination | Color: 0.005Lux@F2.0 | ||||
| B/W: 0.0005Lux@F2.0 | |||||
| 0 Lux (IR light on) | |||||
| IR Distance | 20m (65.6ft) | ||||
| IR On/Off Control | Manual/SmartIR | ||||
| IR LED Number | 1 | ||||
| Lens | |||||
| Focal Length | 3.6mm | ||||
| Aperture | F2.0 | ||||
| Field of View | 84.22°; V: 45.8° | ||||
| Close Focus Distance | 0.9m | ||||
| Iris Control | Fixed Iris | ||||
| DORI Distance | Lens | Detect | Observe | Recognize | Identify |
| 2.8mm | 43.6 m (143.04 ft) | 17.4 m (57.09 ft) | 8.7 m (28.54 ft) | 4.4 m (14.44 ft) | |
| 3.6mm | 55.2 m (181.10 ft) | 22.1 m (72.51 ft) | 11.0 m (36.09 ft) | 5.5 m (18.04 ft) | |
| PTZ | |||||
| Pan/Tilt Range | Pan: 0°–180°; Tilt: -5°–55° | ||||
| Manual Control Speed | Pan: 6°/s; Tilt: 3°/s | ||||
| Intelligence | |||||
| IVS | Tripwire; Intrusion; Object Abandoned/Missing | ||||
| Advanced Intelligence | Face Detection; Heat Map | ||||
| Video | |||||
| Video Compression | H.265; H.264BaselineProfile; H.264MainProfile; H.264HighProfile; MJPEG; H.265 +; H.264+ | ||||
| Streaming Capability | 3 Streams | ||||
| Resolution | 1080P (1920 ×1080); 1.3M (1280×960); 720P (1280 × 720); D1 (704 × 576); CIF (352 × 288) | ||||
| Video Frame Rate | Main Stream: | ||||
| 1080P/1.3M/720P(1–25/30fps) | |||||
| Sub Stream 1: | |||||
| D1/CIF(1–25/30fps) | |||||
| Sub Stream 2: | |||||
| 720P/D1/CIF(1–25/30fps) | |||||
| Bit Rate Control | Variable Bit Rate/Constant Bit Rate | ||||
| Video Bit Rate | H.264: 216Kbps–8192Kbps | ||||
| H.265: 108Kbps–8192Kbps | |||||
| Day/Night | ICR | ||||
| BLC | Support | ||||
| WDR | 120dB | ||||
| HLC | Support | ||||
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp | ||||
| Gain Control | Auto/Manual | ||||
| Noise Reduction | 2D/3D | ||||
| Motion Detection | Support | ||||
| Region of Interest (RoI) | Support | ||||
| Electronic Image Stabilization | Support | ||||
| Defog | Electronic Defog | ||||
| Digital Zoom | 16x | ||||
| Audio | |||||
| Audio Compression | G.711A; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729 | ||||
| Audio In | 1 | ||||
| Audio Out | 1 | ||||
| Network | |||||
| Ethernet Port | 1 RJ-45 Port 10/100Base-T | ||||
| Network Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE | ||||
| Interoperability | ONVIF; CGI | ||||
| Streaming Method | Unicast/Multicast | ||||
| User/Host | 20 (Total bandwidth 48M) | ||||
| Edge Storage | FTP; Micro SD card (256G); P2P | ||||
| Browser | IE7 and newer versions | ||||
| Chrome 42 and older versions | |||||
| Firefox 52 and older versions | |||||
| Safari | |||||
| Management Software | Smart player | ||||
| Configtool | |||||
| SMART PSS | |||||
| DMSS | |||||
| DSS | |||||
| Certifications | |||||
| Certifications | CE: EN55032/EN55024/EN50130-4 | ||||
| FCC: Part15 subpartB,ANSI C63.4- 2014 | |||||
| Electrical | |||||
| Power Supply | DC12V/1.5A±10% (optional) | ||||
| POE (802.3af) (optional) | |||||
| Power Consumption | 7W | ||||
| 11W (PTZ, IR light) | |||||
| Environmental | |||||
| Operating Conditions | –30°C to +60°C (–22°F to 140°F) | ||||
| Operating Humidity | ≤95% RH | ||||
| Ingress Protection | IP66; TVS 4000V lightning protection; surge protection | ||||
| Construction | |||||
| Housing Material | Aluminium alloy ADC12 | ||||
| Dimensions | Wall mounted: 195.3 mm×90 mm×102.7 mm (7.69"×3.54"×4.04") | ||||
| Ceiling mounted: 190.8 mm×90 mm×112.2 mm (7.51"×3.54"×4.12")" | |||||
| Weight | Net Weight: 0.9 kg (1.98 lb); | ||||
| Gross Weight: 1.2 kg (2.65 lb) | |||||
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
