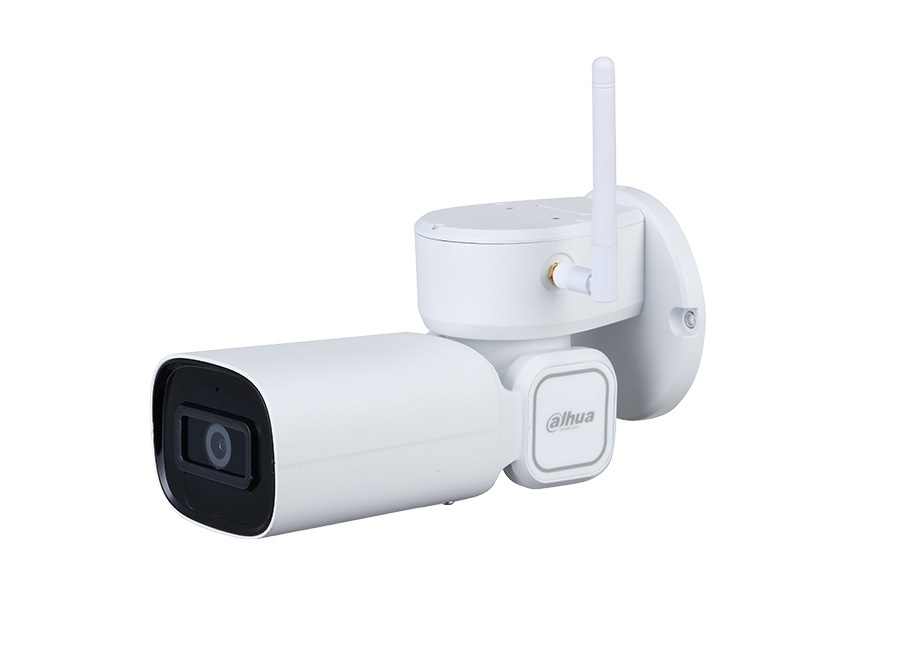

Dahua PTZ1C203UE GN W IR IP PTZ Kamera
Özellikler
Teknik Özellikler
| Camera | ||||
| Image Sensor | 1/2.8" STARVIS™ CMOS | |||
| Max. Resolution | 2MP | |||
| Effective Pixels | 1920 (H) × 1080 (V) | |||
| ROM | 128MB | |||
| RAM | 256MB | |||
| Electronic Shutter Speed | 1/3–1/30000s | |||
| Minimum Illumination | Color: 0.005Lux@F1.8 | |||
| B/W: 0.0005Lux@F1.8 | ||||
| 0Lux (IR light on) | ||||
| IR Distance | 20 m (65.6 ft) | |||
| IR On/Off Control | Zoom Prio/Manual/SmartIR | |||
| IR LED Number | 1 | |||
| Lens | ||||
| Focal Length | 2.7mm–8.1mm | |||
| Aperture | F1.8–F2.7 | |||
| Field of View | H: 46.43°–106.79° | |||
| V: 25.91°–57.88° | ||||
| Optical Zoom | 3x | |||
| Focus Control | Auto/Semi-Auto/Manual | |||
| Close Focus Distance | 0.8 m–1.7 m | |||
| Iris Control | Fixed Iris | |||
| DORI Distance | Detect | Observe | Recognize | Identify |
| 101.4 m (332.68 ft) | 40.6 m (133.20 ft) | 20.3 m (66.60 ft) | 10.1m (33.14 ft) | |
| PTZ | ||||
| Pan/Tilt Range | Pan: 0°–180°; Tilt: -5°–+55° | |||
| Manual Control Speed | Pan: 6°/s; Tilt: 3°/s | |||
| Intelligence | ||||
| IVS | Tripwire; Intrusion; Object Abandoned/Missing | |||
| Advanced Intelligence | Face Detection; Heat Map | |||
| Video | ||||
| Video Compression | H.265; H.264BaselineProfile; H.264MainProfile; H.264HighProfile; MJPEG; H.265 +; H.264+ | |||
| Streaming Capability | 3 Streams | |||
| Resolution | 1080P (1920×1080); 1.3M (1280×960); 720P (1280×720); D1 (704×576); CIF (352×288) | |||
| Video Frame Rate | Main Stream: | |||
| 1080P/1.3M/720P(1–25/30fps) | ||||
| Sub Stream 1: | ||||
| D1/CIF(1–25/30fps) | ||||
| Sub Stream 2: | ||||
| 720P/D1/CIF(1–25/30fps) | ||||
| Bit Rate Control | Variable Bit Rate/Constant Bit Rate | |||
| Video Bit Rate | H.264: 216 Kbps–8192 Kbps | |||
| H.265: 108 Kbps–8192 Kbps | ||||
| Day/Night | ICR | |||
| BLC | Support | |||
| WDR | 120dB | |||
| HLC | Support | |||
| White Balance | Auto/Indoor/Outdoor/Tracking/Manual/Sodium lamp/Natural/Street lamp | |||
| Gain Control | Auto/Manual | |||
| Noise Reduction | 2D/3D | |||
| Motion Detection | Support | |||
| Region of Interest (RoI) | Support | |||
| Electronic Image Stabilization | Support | |||
| Defog | Electronic Defog | |||
| Digital Zoom | 16x | |||
| Audio | ||||
| Audio Compression | G.711A; G.711Mu; G.726; AAC; MPEG2-Layer2; G.722.1; G.729 | |||
| Audio In | 1 | |||
| Audio Out | 1 | |||
| Network | ||||
| Ethernet Port | 1 RJ-45 Port 10/100Base-T | |||
| Network Protocol | IPv4; IPv6; HTTP; HTTPS; 802.1x; Qos; FTP; SMTP; UPnP; SNMP; DNS; DDNS; NTP; SNMPv1/v2c/v3(MIB-2); ARP; RTCP; RTSP; RTP; TCP; UDP; IGMP; ICMP; DHCP; PPPoE | |||
| Interoperability | ONVIF; CGI | |||
| Streaming Method | Unicast/Multicast | |||
| User/Host | 20 (Total bandwidth 48M) | |||
| Edge Storage | FTP; Micro SD card (256G); P2P | |||
| Browser | IE7 and newer versions | |||
| Chrome 42 and older versions | ||||
| Firefox 52 and older versions | ||||
| Safari | ||||
| Management Software | Smart player | |||
| Configtool | ||||
| SMART PSS | ||||
| DMSS | ||||
| DSS | ||||
| Certifications | ||||
| Certifications | CE: EN55032/EN55024/EN50130-4 | |||
| FCC: Part15 subpartB,ANSI C63.4- 2014 | ||||
| Electrical | ||||
| Power Supply | DC12V/1.5A±10% | |||
| Power Consumption | 7W | |||
| 11W (PTZ, IR light) | ||||
| Environmental | ||||
| Operating Conditions | –30°C to +60°C (–22°F to 140°F) | |||
| Operating Humidity | ≤95% RH | |||
| Ingress Protection | IP66; TVS 4000V lightning protection; surge protection | |||
| Construction | ||||
| Housing Material | Aluminium alloy ADC12 | |||
| Dimensions | Wall mounted: 195.3 mm×90 mm×102.7 mm (7.69"×3.54"×4.04") | |||
| Ceiling mounted: 190.8 mm×90 mm×112.2 mm (7.51"×3.54"×4.12") | ||||
| Weight | Net Weight: 0.9 kg (1.98 lb); | |||
| Gross Weight: 1.2 kg (2.65 lb) | ||||
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
