Açıklama

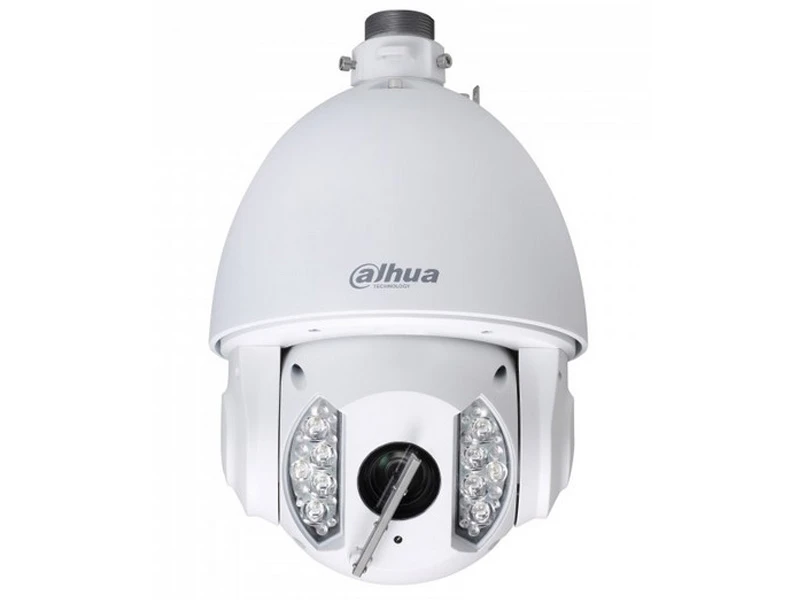

Dahua SD6AW320 HN IP HD Speed Dome Kamera
Özellikler
- 3 Megapiksel Full HD Ultra-Smart IR Speed Dome IP Kamera
- 4.7mm~94mm lens, 20x Optik Zoom, 16x Dijital Zoom,
- 1/3" 3 MP Progressive Scan CMOS,
- 15fps @ 3MP(2048x1536),
- 240°/s Pan Hızı, H.264/MJPEG Dual Stream Encoding,
- Ç.Network Görüntüleme, Ultra WDR (120dB),
- Gece/Gündüz (ICR), IR LED G.Mesafesi: 150m,
- Oto Iris, Oto Odak, AWB, AGC, BLC, 3D-DNR,
- 1xRJ45(100M), Maks. 64Gb Micro SD Memory,
- IP66, 7/2xAlarm, 1/1xSes, Silecek
Teknik Özellikler
| Camera |
| Image Sensor : 1/3" CMOS |
| Effective Pixels : 2048(H) x 1536(V), 3 Megapixels |
| Scanning System : Progressive |
| Electronic Shutter Speed : 1/1 ~ 1/30,000s |
| Min. Illumination : Color: 0.05Lux @ F1.6; B/W: 0.005Lux @ F1.6 |
| S/N Ratio : More than 50dB |
| Video Output : BNC(1.0Vp-p/75Ω), PAL / NTSC |
| Camera Features |
| Day/Night : Auto(ICR) / Color / B/W |
| Backlight Compensation : BLC / HLC / WDR(120dB) |
| White Balance : Auto, ATW, Indoor, Outdoor, Manual |
| Gain Control : Auto / Manual |
| Noise Reduction : Ultra DNR (2D/3D) |
| Privacy Masking : Up to 24 areas |
| Digital Zoom : 16x |
| Defog : N/A |
| Wipe : Support |
| Lens |
| Focal Length : 4.7mm~94.0mm(20x Optical zoom) |
| Max Aperture : F1.6 ~ F3.5 |
| Focus Control : Auto / Manual |
| FOV-H : H: 55.4° ~ 2.9° |
| Close Focus Distance : 10mm~ 1000mm |
| PTZ |
| Pan/Tilt Range : Pan: 0° ~ 360° endless; Tilt: -10° ~ 90°, auto flip 180° |
| Manual Control Speed : Pan: 0.1° ~200° /s; Tilt: 0.1° ~120° /s |
| Preset Speed : Pan: 240° /s; Tilt: 200° /s |
| Preset : 80(DH-SD), 255(Pelco-P/D) |
| PTZ Mode : 5 Pattern, 8 Tour, Auto Pan, Auto Scan |
| Speed Setup : Human-oriented focal length/ speed adaptation |
| Power up Action : Auto restore to previous PTZ and lens status after power failure |
| Idle Motion : Activate Preset/ Pan/ Scan/ Tour/ Pattern if there is no command in the specified period |
| Time Task : Auto activation of Preset/ Pan/ Scan/ Tour/ Pattern by preset-time |
| Protocol : DH-SD, Pelco-P/D (Auto recognition) |
| IR Distance : 150m (2 near IR LED+ 8 far IR LED) |
| Video |
| Compression : H.264 / MJPEG |
| Resolution : 3M(2048´1536)/1080P(1920×1080) / D1(704×576/704×480)/ CIF(352×288/352×240) |
| Frame Rate : Main Stream 3M(1~15fps)/1080P |
| Sub Stream : D1/CIF(1 ~ 25/30fps) |
| Bit Rate : H.264: 56K ~ 8192Kbps, MJPEG: 56K ~ 20480Kbps |
| Audio |
| Compression : G.711a / G.711u(32kbps)/ PCM(128kbps) |
| Interface : 1/1 channel In/Out |
| Network |
| Ethernet : RJ-45 (10/100Base-T) |
| Protocol : IPv4/ IPv6, HTTP, HTTPS, SSL, TCP/IP, UDP, UPnP, ICMP, IGMP, SNMP, RTSP, RTP, SMTP, NTP, DHCP, DNS, PPPOE, DDNS, FTP, IP Filter, QoS, Bonjour, 802.1x |
| ONVIF : ONVIF Profile S |
| Max. User Access : 20 users |
| Smart Phone : iPhone, iPad, Android, Windows Phone |
| Auxiliary Interface |
| Memory Slot : Micro SD, Max 64GB |
| RS485 : 1 |
| Alarm : 7/2 channel In/Out |
| General |
| Power Supply : AC24V/3A(±16%) |
| Power Consumption : 20W, 43W (IR on, Heater on) |
| Working Environment : -40ºC ~ 70ºC / Less than 90% RH |
| Ingress Protection : IP66 |
| Dimensions : Φ252(mm) x 385 (mm) |
| Weight : 6.75kg |
Dahua SD6AW320 HN IP HD Speed Dome Kamera Pdf Dosyası311.35 KB
Teknik Kısa
Çözünürlük : 3MP
Irled : Var
Depolama : Var
Ses : Var
