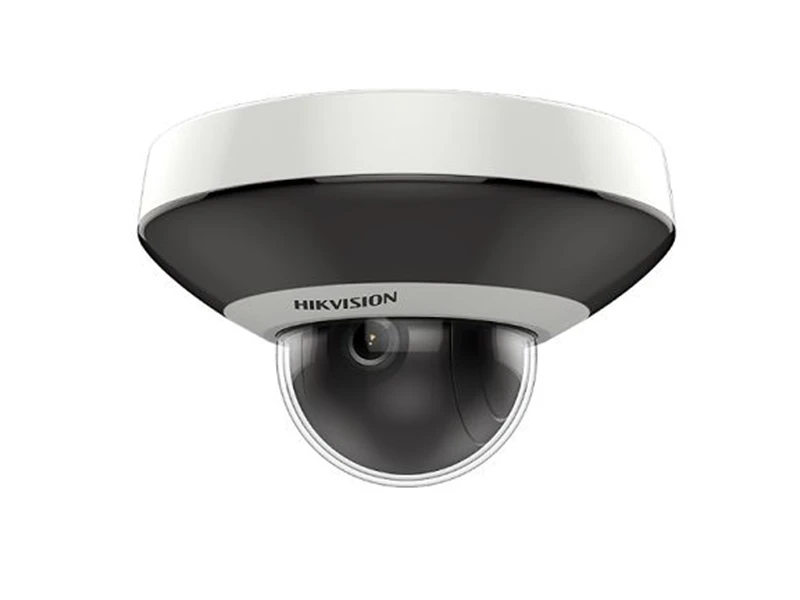

Hikvision DS 2DE1A400W DE3 IP PTZ Kamera
Özellikler
- 1/3" progressive scan CMOS
- Up to 2560 × 1440@30fps resolution
- Min. illumination:
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON) - 16× digital zoom
- 120 dB WDR, 3D DNR, EIS, Regional Exposure, Regional Focus
- 12 VDC, PoE (802.3af)
- IP66
- Support H.265+/H.265 video compression
- Support ONVIF, ISAPI, CGI, HIKVISION SDK and Third-Party Management Platform
Teknik Özellikler
| Camera | |
| Image Sensor | 1/3" progressive scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| Signal System | PAL/NTSC |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) |
| B/W: 0.001 Lux @(F1.6, AGC ON) | |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| WDR | 120dB |
| Shutter Time | 1/1 to 1/30,000s |
| Day& Night | ICR |
| Digital Zoom | 16× |
| Privacy Masking | 24 privacy masks programmable |
| Auto Focus | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length | 2.8 mm, 4 mm, optional |
| Angle of View | 2.8 mm: horizontal FOV 101.6°; vertical FOV 56°, diagonal FOV 120° |
| 4mm: horizontal FOV 80.7°; vertical FOV 43.5°, diagonal FOV 95° | |
| Minimum Working Distance | 2.8 mm: > 0.7 m; 4 mm: > 1 m |
| Aperture Range: | F1.6 |
| Pan & Tilt | |
| Pan Range | ° to 330° |
| Pan Speed | Configurable, from 0.1°/s to 100°/s, |
| Preset speed: 100°/s | |
| Tilt Range | Tilt: 0°~90° |
| Tilt Speed | Configurable, from 0.1°/s to 100°/s, |
| Preset speed: 100°/s | |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Power-off Memory | Support |
| Park Action | Preset |
| PTZ Position Display: | ON/OFF |
| Input & Output | |
| Audio Input | 1-ch audio input |
| Audio Output | 1-ch audio output |
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution | 1920×1080 |
| Main Stream | 50Hz: 25fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) |
| 60Hz: 30fps (2560 × 1440, 2048 × 1536, 1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub Stream | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) |
| Third Stream | 50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Video Compression | Main Stream: H.265+/H.265/H.264+/H.264 |
| Sub-Stream: H.265/H.264/MJPEG | |
| Third Stream: H.265/H.264/MJPEG | |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Audio Mode | OFF/Audio input/Audio output |
| Three-Stream | Support |
| Mini SD Card | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
| User/Host Level | Up to 32 users, 3 levels: Administrator, Operator and User |
| Hik-Connect | Support |
| General | |
| Power Supply | 12 VDC & PoE |
| Power Consumption | Max.: 12W |
| Working Temperature/Humidity | -10°C to 55°C (-14°F to 131°F) |
| Protection Level | IP66 Standard, TVS 2000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material | Aluminum alloy, PC, PC+ABS |
| Dimensions | Φ 124.3 mm × 76.9 mm (Φ 4.89" × 3.03") |
| Weight (approx.) | Approx. 450 g (0.99 lb.) |
Hikvision DS 2DE1A400W DE3 IP PTZ Kamera Pdf Dosyası899.77 KB
Teknik Kısa
Depolama : Var
Çözünürlük : 4MP
