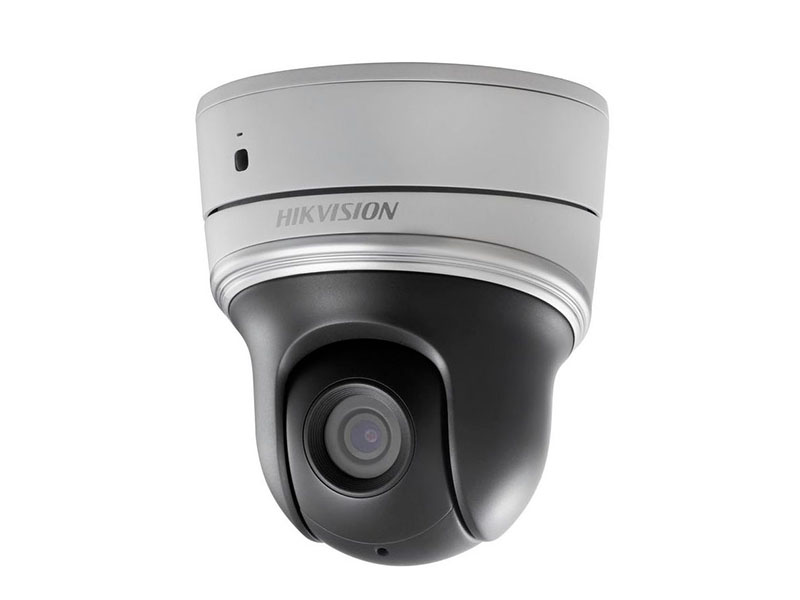

Hikvision DS 2DE2204IW DE3 IP Speed Dome Kamera
Özellikler
- 1/2.8" Progressive Scan CMOS
- 1920 × 1080@30fps Resolution
- 4x Zoom
- DWDR
- 3D positioning
- PoE (802.3af)
- Hik-Connect
- Up to 20m IR distance
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| Signal System | PAL/NTSC |
| Minimum Illumination | Color: 0.05 Lux @ (F2.0, AGC ON), B/W: 0.005Lux @ (F2.0, AGC ON) |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC | Auto/Manual |
| HLC | Support |
| WDR | DWDR |
| Shutter Time | 1/1 to 1/10,000s |
| Day& Night | ICR |
| Digital Zoom | 16× |
| Privacy Masking | 8 privacy masks programmable |
| Auto Focus | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length | 2.8 to 12mm, 4× |
| Zoom Speed | Approx. 2s (optical lens, wide-tele) |
| Angle of View | 100° to 25° (wide-tele) |
| Minimum Working Distance | 10 to 1500mm (wide-tele) |
| Aperture Range | F1.8 to F2.5 |
| Pan & Tilt | |
| Pan Range | Pan: 0~350° |
| Pan Speed | 0.1° to 60°/s |
| Tilt Range | Tilt: 0°~90° |
| Tilt Speed | 0.1°to 50°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets per patrol |
| Power-off Memory | Support |
| Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Position Display | ON/OFF |
| Infrared | |
| IR irradiation distance | 20m |
| IR irradiation angle | Adjustable by zoom |
| Alarm | |
| Alarm Input | 1 |
| Alarm Actions | Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage |
| Input & Output | |
| Audio Input | Audio input (LINE input), 2-2.4Vp-p; output impedance: 1KΩ, ±10% |
| Audio Output | 1 channel audio output, linear level |
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution | 1920×1080 |
| Main Stream | 50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) |
| 60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720) | |
| Sub Stream | 50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240) |
| Third Stream | 50Hz:25fps(1280×960), 25fps (1280×720), 25fps(704×576), 25fps (352×288), 25fps (176×144) |
| 60Hz:30fps(1280×960), 30fps (1280×720), 30fps(704×480), 30fps (352×240), 30fps (176×120) | |
| Video Compression | H.264 / MJPEG |
| Audio Compression | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 |
| Audio Mode | OFF/Audio input/Audio output |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP/IP, DHCP, PPPoE, Bonjour |
| General | |
| Power Supply | 12V DC & PoE((802.3af, class3) |
| Power Consumption | Max.: 9W |
| Working Temperature/Humidity | -10°C to 50°C (-14°F to 122°F) |
| Protection Level | IP66 standard (outdoor dome) |
| TVS 4,000V lightning protection, surge protection and voltage transient protection | |
| Weight (approx.) | Approx. 0.65kg (1.4lb) |
Hikvision DS 2DE2204IW DE3 IP Speed Dome Kamera Pdf Dosyası697.46 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Ses : Var
Depolama : Var
