Açıklama

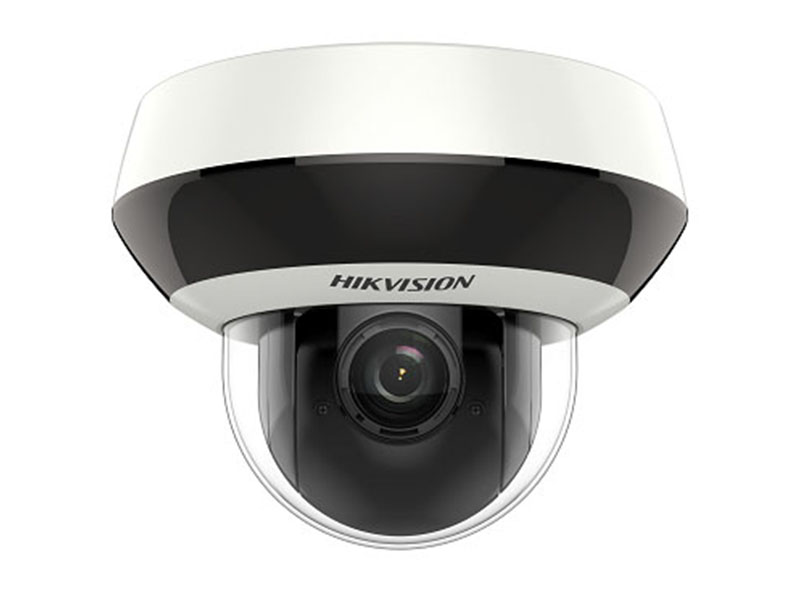

Hikvision DS 2DE2A204IW DE3 IP Speed Dome Kamera
Özellikler
- 1/3" progressive scan CMOS
- Up to 1920 × 1080@30fps resolution
- Min. illumination:
Color: 0.005 Lux @(F1.6, AGC ON)
B/W: 0.001 Lux @(F1.6, AGC ON)
0 Lux with IR - 4× optical zoom, 16× digital zoom
- 120 dB WDR, 3D DNR, HLC, EIS, Regional Exposure, Regional Focus
- 12 VDC & PoE
- Up to 20 m IR distance
- IK10, IP66
- Support H.265+/H.265 video compression
Teknik Özellikler
| Camera | |
| Minimum Illumination | Color: 0.005 Lux @(F1.6, AGC ON) |
| B/W: 0.001 Lux @(F1.6, AGC ON) | |
| 0 Lux with IR | |
| White Balance | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| AGC | Auto/Manual |
| HLC | Support |
| WDR | 120dB |
| Shutter Time | 50Hz: 1/1 s to 1/30,000 s |
| 60Hz: 1/1 s to 1/30,000 s | |
| Day& Night | ICR |
| Digital Zoom | 16× |
| Lens | |
| Focal Length | 2.8 to 12mm, 4× optical zoom |
| Zoom Speed | Approx. 2s (optical lens, wide-tele) |
| Angle of View | Horizontal field of view: 109° to 34° (Wide-Tele) |
| Vertical field of view: 57° to 19° (Wide-Tele) | |
| Diagonal field of view: 135° to 39° (Wide-Tele) | |
| Minimum Working Distance | 10 to 1500mm (wide-tele) |
| Aperture Range | F1.6 to F2.7 |
| Pan & Tilt | |
| Pan Range | ° to 330° |
| Pan Speed | Configurable, from 0.1°/s to 100°/s, |
| Preset speed: 100°/s | |
| Tilt Speed | Configurable, from 0.1°/s to 100°/s |
| Preset Speed: 100°/s | |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Power loss recovery | Support |
| Infrared | |
| IR irradiation angle | Adjustable by zoom |
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Third Stream | 50Hz: 25fps (1280 × 720, 704 × 576, 640 × 480, 352 × 288) 60Hz: 30fps (1280 × 720, 704 × 480, 640 × 480, 352 × 240) |
| Audio Compression | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 |
| Audio Mode | OFF/Audio input/Audio output |
| No. of Simultaneous Users | Up to 20 users |
| Three-Stream | Support |
| EZVIZ | Support |
| General | |
| Power Supply | 12 VDC & PoE |
| Power Consumption | Max.: 12 W (Max. 3.9 W for IR) |
| Working Temperature/Humidity | -20°C to 60°C (-4°F to 140°F) |
| Dimensions | Φ 130.7 mm × 101.7 mm (Φ 5.15" × 4.00") |
| Weight (approx.) | Approx. 0.53 kg (1.17 lb) |
Hikvision DS 2DE2A204IW DE3 IP Speed Dome Kamera Pdf Dosyası896.77 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
