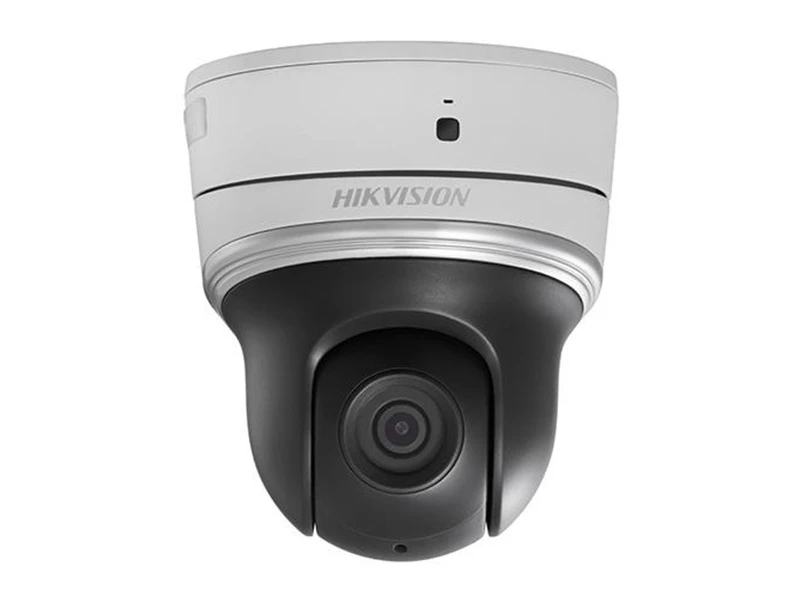

Hikvision DS 2DE2204IW DE3/W IP PTZ Speed Dome Kamera
Özellikler
- 1/2.8" progressive scan CMOS
- Up to 1920 × 1080 resolution
- Min. illumination
-Color 0.05 Lux @(F2.0, AGC ON)
-B/W 0.005 Lux @(F2.0, AGC ON)
-0 Lux with IR - 4× optical zoom, 16× digital zoom
- Digital WDR, 3D DNR, HLC, BLC, Smart IR
- Up to 20 m IR distance
- 12 VDC & PoE (802.3af, class3)
- Support Wi-Fi
- Support H.265+/H.265
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" Progressive Scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| İşaret Sistemi | PAL/NTSC |
| Minimum Aydınlatma | Color 0.05 Lux @(F2.0, AGC ON) |
| B/W 0.005 Lux @(F2.0, AGC ON) | |
| 0 Lux with IR | |
| White Balance | Auto/Manual/ATW/Indoor/Outdoor/Daylight lamp/Sodium lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| WDR | DWDR |
| Objektif Zamanı | 1/1 to 1/10,000s |
| Gündüz ve Gece | ICR |
| Dijital Yakınlaştırma | 16× |
| Privacy Mask | 8 programmable privacy masks |
| Otomatik Odak | Auto / Semi-automatic / Manual |
| Lens | |
| Odaksal Uzunluk | 2.8 to 12mm, 4× |
| Yakınlaştırma Hızı | Approx. 2s (optical lens, wide-tele) |
| Field of View | 100° to 25° (wide-tele) |
| Minimum Çalışma Mesafesi | 10 to 1500mm (wide-tele) |
| Aralık Açıklık | F1.8 to F2.5 |
| Pan & Tilt | |
| Pan Range | Pan 0~350° |
| Pan Hızı | Configurable, from 0.1°/s to 60°/s |
| Preset Speed 60°/s | |
| Tilt Range | Tilt 0°~90° |
| Tilt Hızı | Configurable, from 0.1°/s to 50°/s |
| Preset Speed 50°/s | |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Devriye | 8 patrols, up to 32 presets per patrol |
| Power-off Memory | Support |
| Park Action | Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan |
| PTZ Pozisyonlama Gösterimi | ON/OFF |
| Infrared | |
| IR Distance | 20m |
| IR Işınlama Açısı | Adjustable by zoom |
| Alarm | |
| Alarm Girişi | 1 |
| Alarm Linkage | Preset, Patrol, Pattern, Recording, Relay output, Upload center, upload FTP, email linkage |
| Input & Output | |
| Ses Girişi | Audio input (LINE input), 2-2.4Vp-p; output impedance 1KΩ, ±10% |
| Ses Çıkışı | 1 channel audio output, linear level |
| Network | |
| Wi-Fi | Support |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution | 1920×1080 |
| Main Stream | 50Hz 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720) |
| 60Hz 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720) | |
| Alt Akış | 50Hz 25fps(704×576, 640x480,352×288); 60Hz 30fps(704×480, 640x480,352×240) |
| Third Stream | 50Hz25fps(1280×960), 25fps (1280×720), 25fps(704×576), 25fps (352×288), 25fps (176×144) |
| 60Hz30fps(1280×960), 30fps (1280×720), 30fps(704×480), 30fps (352×240), 30fps (176×120) | |
| Görüntü Sıkıştırma | H.264 / MJPEG |
| Ses Sıkıştırma | G.711ulaw/G.711alaw/G.726/MP2L2/G.722 |
| Ses Modu | OFF/Audio input/Audio output |
| General | |
| Power Supply | 12V DC & PoE((802.3af, class3) |
| Güç Tüketim | Max. 9W |
| Çalışma Sıcaklığı / Nem oranı | -10°C to 50°C (-14°F to 122°F) |
| Protection Level | IP66 standard (outdoor dome) |
| TVS 4,000V lightning protection, surge protection and voltage transient protection | |
| Boyutlar | Φ 125 mm × 136.7 mm (Φ 4.92" × 5.38") |
| Ağırlık (yaklaşık) | Approx. 0.65kg (1.4lb) |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
Ses : Var
