Açıklama

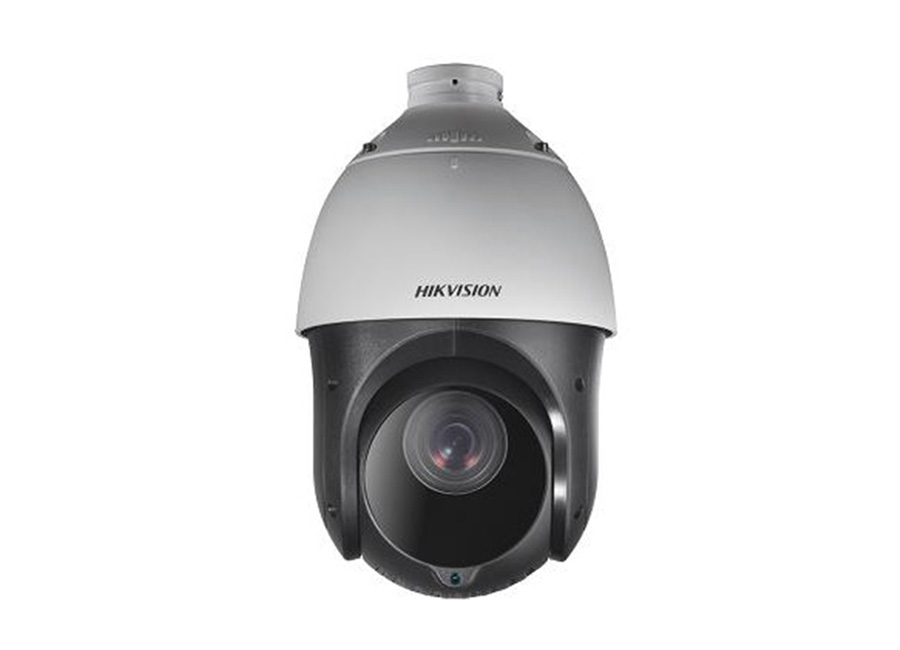

Hikvision DS 2DE4215IW DE IP Speed Dome PTZ Kamera
Özellikler
- 1/2.8" progressive scan CMOS
- Up to 1920 × 1080@30fps resolution
- Min. illumination
-Color 0.005 Lux @(F1.6, AGC ON)
-B/W 0.001 Lux @(F1.6, AGC ON) - 0 Lux with IR
- 15× optical zoom, 16× digital zoom
- WDR, HLC, BLC, 3D DNR, Defog, EIS, Regional Exposure, Regional Focus
- Up to 100 m IR distance
- 12 VDC & PoE+ (802.3 at, class4)
- Support H.265+/H.265 video compression
Teknik Özellikler
| Camera | |
| Image Sensor | 1/2.8" HD progressive scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| İşaret Sistemi | PAL/NTSC |
| Minimum Aydınlatma | Color 0.005 Lux @(F1.6, AGC ON) |
| B/W 0.001Lux @(F1.6, AGC ON) | |
| 0 Lux with IR | |
| White Balance | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| Buğu Giderme | Support |
| WDR | 120dB |
| Objektif Zamanı | 1-1/10,000s |
| Gündüz ve Gece | ICR |
| Dijital Yakınlaştırma | 16X |
| Privacy Mask | 24 programmable privacy masks; optional multiple colors and mosaics |
| Otomatik Odak | Auto / Semi-automatic / Manual |
| Lens | |
| Odaksal Uzunluk | 5 mm to 75 mm, 15× optical zoom |
| Yakınlaştırma Hızı | Approx. 2.3 s (optical lens, wide-tele) |
| Field of View | Horizontal field of view 53.8° to 4° (Wide-Tele) |
| Vertical field of view 31.9° to 2.3° (Wide-Tele) | |
| Diagonal field of view 60.4° to 4.6° (Wide-Tele) | |
| Minimum Çalışma Mesafesi | 10-1,500mm(Wide-Tele) |
| Aralık Açıklık | F1.6 to F2.8 |
| Pan & Tilt | |
| Pan Range | 360°endless |
| Pan Hızı | Configurable, from 0.1°/s to 80°/s, |
| Preset speed 80°/s | |
| Tilt Range | -15°-90° (Auto Flip ) |
| Tilt Hızı | Configurable, from 0.1°/s to 80°/s, |
| Preset speed 80°/s | |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Devriye | 8 patrols, up to 32 presets per patrol |
| Otomatik Tur | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Support |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Pozisyonlama Gösterimi | ON/OFF |
| Infrared | |
| IR Distance | 100m |
| IR Işınlama Açısı | Adjustable by zoom |
| Alarm | |
| Alarm Girişi | 1 |
| Alarm Çıkışı | 1 |
| Alarm Linkage | Alarm actions, such as Preset, Patrol Scan, Pattern Scan, Memory Card Video Record, Trigger Recording, Notify Surveillance Center, Upload to FTP/Memory Card/NAS, Send Email, etc. |
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution | 1920×1080 |
| Main Stream | 50Hz25fps (1920×1080,1280×960,1280×720), 50fps (1280×960,1280×720) ; |
| 60Hz30fps(1920×1080,1280×960,1280×720), 60fps (1280×960,1280×720) | |
| Alt Akış | 50Hz 25fps(704×576, 640x480,352×288); 60Hz 30fps(704×480, 640x480,352×240) |
| Third Stream | 50Hz 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) |
| 60Hz 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) | |
| ROI encoding | Support 4 areas with adjustable levels |
| Ses Modu | OFF/Audio input/Audio output |
| Simultaneous Live View | Up to 20 channels |
| Üçlü Akış | Support |
| Güvenlik önlemleri | User authentication (ID and PW), host authentication (MAC address) |
| EZVIZ | Support |
| Client GUI | |
| Client | iVMS-4200, iVMS-4500, iVMS-5200, Hik-Connect |
| Web Browser | IE 8 to 11, Chrome 31.0 to 44, Firefox 30.0 to 51 |
| General | |
| Language | English |
| Power Supply | 12VDC, PoE+ |
| Güç Tüketim | Max. 18 W (Max. 7 W for IR) |
| Çalışma Sıcaklığı / Nem oranı | -30 ℃-65℃(-22℉-149℉)(outdoor) |
| 90% or less | |
| Protection Level | IP66 standard (outdoor dome) |
| TVS 4,000V lightning protection, surge protection and voltage transient protection | |
| Boyutlar | Φ 164.5 mm × 290 mm (Φ 6.48" × 11.42") |
| Ağırlık (yaklaşık) | Approx. 2 kg (4.41 lb) |
Hikvision DS 2DE4215IW DE IP Speed Dome PTZ Kamera Pdf Dosyası950 KB
Teknik Kısa
Çözünürlük : 2MP (1080P)
Irled : Var
