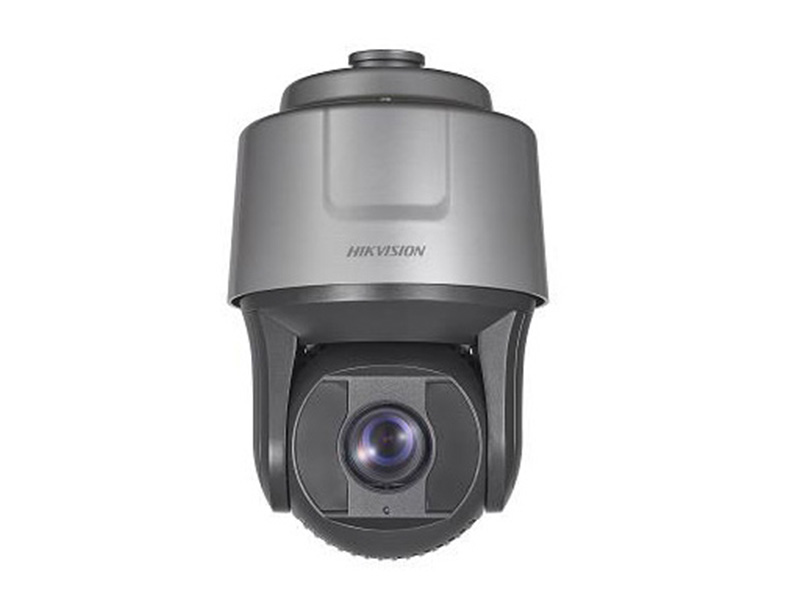

Hikvision DS 2DF8225IH AELW IP Speed Dome Kamera

Özellikler

2* 1/2.8” progessive scan CMOS sensor
Up to 1920 × 1080 resolution
25X Optical Zoom
Min. Illumination:
Color: 0.001 Lux @(F1.5, AGC ON)
B/W: 0.0001 Lux @(F1.5, AGC ON)
0 Lux with IR
Smart Tracking
Smart Detection
200m IR distance
Optional wiper(-W)
Hi-PoE / 24VAC power supply
Support H.265+/H.265 video compression
Deep-learning-based target classification algorithm for auto-tracking 2.0 and perimeter protection

Teknik Özellikler

Camera
Image Sensor	2× 1/2.8" progressive scan CMOS
Effective Pixels	1920(H)x1080(V)
Signal System	PAL/NTSC
Minimum Illumination	Color: 0.001 Lux @(F1.5, AGC ON)
	B/W: 0.0001 Lux @(F1.5, AGC ON)
	0 Lux with IR
AGC	Auto/Manual
BLC	ON/OFF
HLC	Support
Smart defog	Support
WDR	DWDR
Shutter Time	50Hz: 1~1/30,000s; 60Hz: 1~1/30,000s
Day& Night	ICR
Digital Zoom	16X
Privacy Masking	24 privacy masks programmable
Auto Focus	Auto / Semi-automatic / Manual
Lens
Focal Length	4.8 mm to 120 mm, 25× Optical
Zoom Speed	Approx. 4 s (optical lens, wide-tele)
Angle of View	Horizontal field of view: 58.2° to 3.2° (wide-tele)
	Vertical field of view: 32.7° to 1.8° (wide-tele)
	Diagonal field of view: 66.8° to 3.7° (wide-tele)
Minimum Working Distance	10-1500mm(Wide-Tele)
Aperture Range	F1.5~F3.5
Pan & Tilt
Pan Range	360°endless
Pan Speed	Configurable, from 0.1°/s to 210°/s, Preset Speed: 280°/s
Tilt Range	-20°~90°(Auto Flip)
Tilt Speed	Configurable, from 0.1°/s to 150°/s, Preset Speed: 250°/s
Proportional Zoom	Rotation speed can be adjusted automatically according to zoom multiples
Number of Preset	300
Patrol	8 patrols, up to 32 presets per patrol
Pattern	4 patterns, with the recording time not less than 10 minutes per pattern
Power-off Memory	Support
Park Action	Preset / Patrol / Pattern / Pan scan / Tilt scan / Random scan / Frame scan / Panorama scan
PTZ Position Display	ON/OFF
Smart-tracking	Manual/ Panorama/ Intrusion trigger/ Line crossing trigger / Region entrance trigger / Region exiting trigger
Wiper	Optional
Infrared
IR irradiation distance	200m
IR irradiation angle	Adjustable by zoom
Alarm
Alarm Input	7 Inputs
Alarm Output	2
Alarm Actions	Preset, Patrol, Pattern, Micro SD/SDHC card recording, Relay output, Notification on Client, Send Email, Upload to FTP, Trigger Channel
Network
Ethernet	10Base -T, /100Base-TX, RJ45 Connector
Main Stream	50Hz: 25fps(1920×1080), 25fps(1280×960), 25fps (1280×720)
	60Hz: 30fps(1920×1080), 30fps(1280×960), 30fps (1280×720)
Sub Stream	50Hz: 25fps(704×576, 640x480,352×288); 60Hz: 30fps(704×480, 640x480,352×240)
Third Stream	50Hz: 25fps (1920 × 1080, 1280 × 720, 704 × 576, 640 × 480, 320 × 288)
	60Hz: 30fps (1920 × 1080, 1280 × 720, 704 × 480, 640 × 480, 320 × 240)
Video Compression	Main Stream: H.265+/H.265/H.264+/H.264
	Sub-Stream: H.265/H.264/MJPEG
	Third Stream: H.265/H.264/MJPEG
ROI encoding	Support
Audio Compression	G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM
Audio Mode	OFF/Audio input/Audio output
No. of Simultaneous Users	Up to 20 users
Three-Stream	Support
Mini SD Card	Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB
Security Measures	User authentication (ID and PW),
	Host authentication (MAC address)
	IP address filtering
Client GUI
Camera Control	Pan/Tilt, Zoom, Focus, Click centering, Zoom by mouse dragging, Iris, preset calling and programming, auto mode
Date & Time Display	Time: Week: Date, 6 formats on the Client
Client	Support iVMS-4200
Web Browser	IE 7+, Chrome 18 - 42, Firefox 5.0 +, Safari 5.02 +
General
Power Consumption	24 VAC (Max. 60 W)
	Hi-PoE (Max. 50 W)
Working Temperature/Humidity	-40°C ~ 65°C (-40°F ~ 149°F)
Protection Level	IP67 Standard, IK10 (only supported by camera without wiper), TVS 6,000V Lightning Protection, Surge Protection and Voltage Transient Protection
Dimensions	Φ 266.6 mm × 410 mm (Φ 10.50" × 16.14")
Weight (approx.)	8kg (approx.17.64lb)
