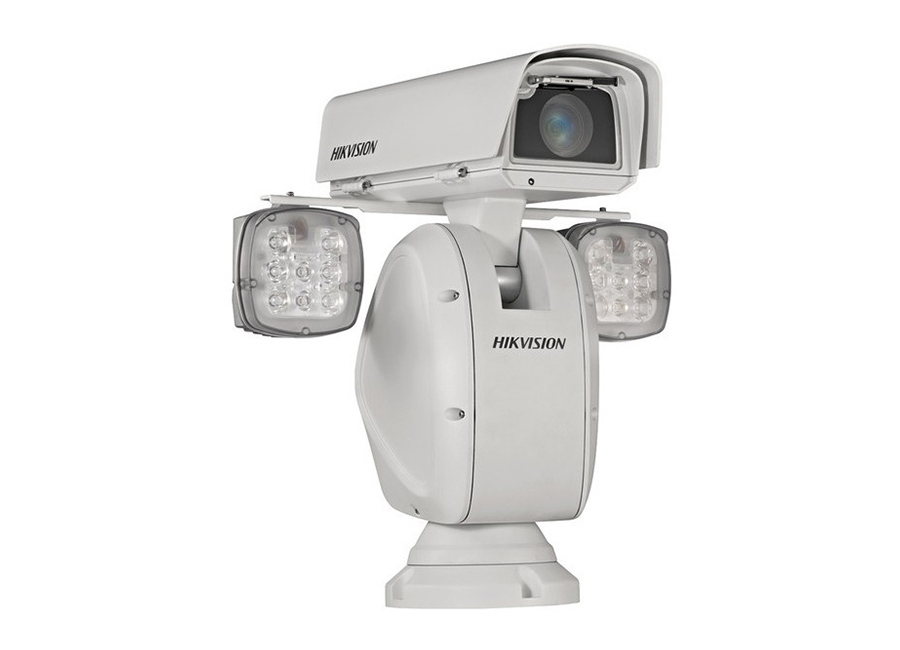

Hikvision DS 2DY9236IX A IP PTZ Kamera
Özellikler
Teknik Özellikler
| Camera | |
| Image Sensor | 1/1.9" progressive scan CMOS |
| Effective Pixels | 1920(H)x1080(V) |
| Minimum Illumination | Color 0.002 Lux @(F1.5, AGC ON) |
| B/W 0.0002 Lux @(F1.5, AGC ON) | |
| 0 Lux with IR | |
| White Balance | Auto/Manual/ATW (Auto-Tracking White Balance)/Indoor/Outdoor/Fluorescent Lamp/Sodium Lamp |
| AGC | Auto/Manual |
| BLC | ON/OFF |
| HLC | Support |
| Smart defog | Support |
| WDR | 120dB |
| Shutter Time | 1/1 s to 1/30,000 s |
| Day& Night | ICR |
| Digital Zoom | 16× |
| Privacy Mask | 24 programmable privacy masks |
| Auto Focus | Auto / Semi-automatic / Manual |
| Lens | |
| Focal Length | 5.6 mm to 207 mm, 36× optical zoom |
| Zoom Speed | Approx. 4.4 s (optical lens, wide-tele) |
| Field of View | Horizontal field of view 59.8° to 2.0° (wide-tele) |
| Vertical field of view 33.6° to 1.1° (wide-tele) | |
| Diagonal field of view 68.6° to 2.3° (wide-tele) | |
| Minimum Working Distance | 10 mm to 1500 mm (wide-tele) |
| Aperture Range | F1.5 to F4.5 |
| Pan & Tilt | |
| Pan Speed | Configurable, from 0.1°/s to 100°/s, Preset Speed 100°/s |
| Tilt Range | -90°-40° (Auto Flip ) |
| Tilt Speed | Configurable, from 0.1°/s to 40°/s, Preset Speed 100°/s |
| Proportional Zoom | Rotation speed can be adjusted automatically according to zoom multiples |
| Number of Preset | 300 |
| Patrol | 8 patrols, up to 32 presets for each patrol |
| Pattern | 4 pattern scans, record time over 10 minutes for each scan |
| Power-off Memory | Support |
| Park Action | Preset/Pattern Scan/Patrol Scan/Auto Scan/Tilt Scan/Random Scan/Frame Scan/Panorama Scan |
| PTZ Position Display | ON/OFF |
| Infrared | |
| IR Distance | 200m |
| IR irradiation angle | Adjustable by zoom |
| Alarm | |
| Alarm Input | 7 Inputs |
| Alarm Output | 2 |
| Input & Output | |
| CVBS Output | 1.0V[p-p]/75Ω, NTSC (or PAL) composite, BNC |
| Audio Input | 1-ch audio input |
| Audio Output | 1-ch audio output |
| Network | |
| Ethernet | 10Base -T, /100Base-TX, RJ45 Connector |
| Max.Image Resolution | 1920×1080 |
| Main Stream | 50Hz 25fps (1920 × 1080, 1280 × 960, 1280 × 720), |
| 50fps (1920 × 1080, 1280 × 960, 1280 × 720); | |
| 60Hz 30fps (1920 × 1080, 1280 × 960, 1280 × 720), | |
| 60fps (1920 × 1080, 1280 × 960, 1280 × 720) | |
| Sub Stream | 50Hz 25fps(704×576), 25fps(640×576), 25fps(320×288) |
| 60Hz 30fps(704×480), 30fps(640×480), 30fps(320×240) | |
| Third Stream | 50Hz 25fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) |
| 60Hz 30fps(1920×1080, 1280×960, 1280×720, 704×576, 640x480,352×288) | |
| Video Compression | Main Stream H.265+/H.265/H.264+/H.264 |
| Sub-Stream H.265/H.264/MJPEG | |
| Third Stream H.265/H.264/MJPEG | |
| Audio Compression | G.711alaw/G.711ulaw/G.722.1/G.726/MP2L2/PCM |
| Protocols | IPv4/IPv6, HTTP, HTTPS, 802.1x, Qos, FTP, SMTP, UPnP, SNMP, DNS, DDNS, NTP, RTSP, RTCP, RTP, TCP, UDP, IGMP, ICMP, DHCP, PPPoE, Bonjour |
| Three-Stream | Support |
| Storage | Built-in memory card slot, support Micro SD/SDHC/SDXC, up to 256 GB |
| User/Host | Up to 32 users, 3 levels Administrator, Operator and User |
| Security Measures | User Authentication (User ID and Password), Host Authentication (MAC address), HTTPS Encryption, IEEE 802.1x Port-Based Network Access control, IP address Filtering |
| General | |
| RS-485 Protocols | HIKVISION, Pelco-P, Pelco-D, self-adaptive |
| Power Supply | 24V AC |
| Power Consumption | Max. 70 W |
| Working Temperature/Humidity | Temperature Outdoor -40°C to 70°C (-40°F to 158°F) |
| Humidity ≤ 90% | |
| Protection Level | IP66 Standard; TVS 6000V Lightning Protection, Surge Protection and Voltage Transient Protection |
| Material | Aluminum alloy ADC12 |
| Dimensions | 460 mm × 390 mm × 491 mm (18.11" × 15.35" × 19.33") |
| Weight (approx.) | Approx. 13 kg (28.66 lb) |
Teknik Kısa
Çözünürlük : 2MP (1080P)
Ses : Var
Depolama : Var
Irled : Var
